1794-OE4 模拟输出模块 分布式I/O节点

【产品详情】

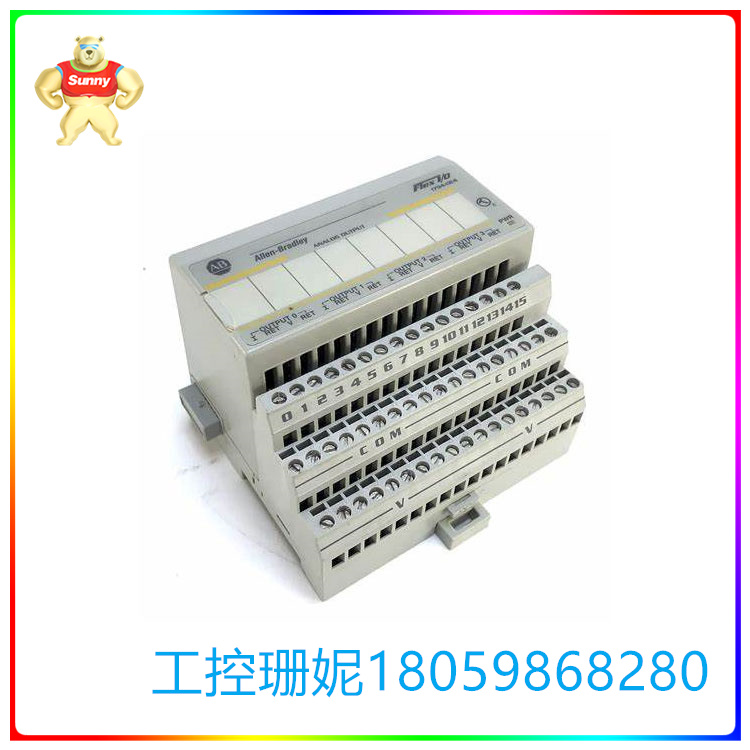

Allen-Bradley 1794-OE4是Flex IO产品系列中的模拟输出模块。该模块作为分布式I/O节点的组成部分，兼容以太网、ControlNet、Profibus、Remote I/O等Flex I/O通信适配器。该模块具有四(4)个用户可配置的输出通道，旨在提供0至20mA, 4至20mA电流信号和+/- 10VDC和0至10VDC电压信号信号。使用该模块实现对变频驱动器(VFD)、调制控制阀、转换器、换能器、阻尼器、百叶和其他最终控制元件(FCE)等调制设备的自动和手动控制。该模块的输出通道支持非隔离的单端配置。

1794-OE4的分辨率为12位加号，电压的具体增量和递减为2.56mV/cnt，电流为5.13 μ a /cnt。模块的模拟数据存储到一个注册格式为左对齐，16位2的补码。该寄存器使用脉宽调制方法进行转换。

1794-OE4支持安装Flex I/O通信适配器，包括1794-ACN15, 1794-ACNR15, 1794-AND, 1794-AENT和1794-AENTR。它也可以与MicroLogix紧凑型控制器一起使用，通过1794-ASB和1794-APB通信适配器。

1794-OE4兼容1794-TB2、1794-TB3、1794-TB3S、1794-TB3T、1794-TB3TS、1794-TBN等多种端子底座。安装模块时只需要一个端子座。端子底座提供DIN导轨附件以及输出信号接线端子。1794-OE4所需的按键开关位置为4。

该模块的尺寸为94.0 x 94.0 x 53.3 mm或3.7 x 3.7 x 2.1英寸。它有一个内置的组诊断led，由一个(1)绿色/红色电源/状态指示灯组成。

1794-OE4有绿色状态指示灯，用于监控模块的运行情况。该模块不需要校准。该模块的输出分辨率为12位+符号，电压为2.56 mV/cnt，电流输出为5.13 μ A/cnt。它使用脉冲宽度调制作为其输出转换类型，所有通道的输出转换率为1.024毫秒。的

1794-OE4 模拟输出模块 分布式I/O节点

【英文介绍】

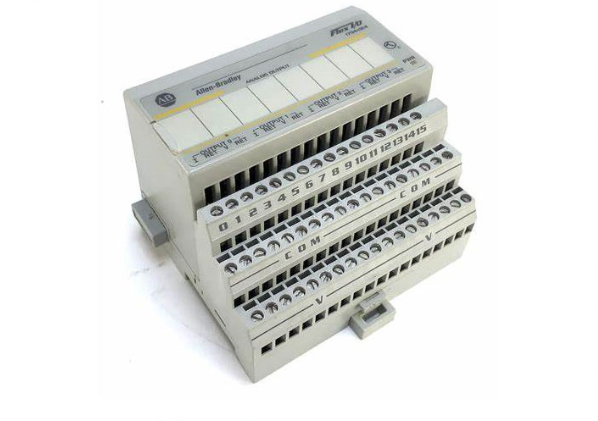

Allen-Bradley 1794-OE4 is an analog output module in the Flex IO product family. As part of the distributed I/O node, the module is compatible with Flex I/O communication adapters such as Ethernet, ControlNet, Profibus, and Remote I/O. The module features four (4) user-configurable output channels designed to provide 0 to 20mA, 4 to 20mA current signals and +/- 10VDC and 0 to 10VDC voltage signal signals. This module enables automatic and manual control of modulation devices such as variable frequency drivers (VFDS), modulation control valves, converters, transducers, dampers, louvers and other final control elements (FCE). The output channel of this module supports a non-isolated single-ended configuration.

The 1794-OE4 has a 12-bit plus resolution, specific increments and decrement of voltage of 2.56mV/cnt and current of 5.13 μa /cnt. The module's analog data is stored in a registration format of left-justified, 16-bit 2 complement. The register is converted using pulse width modulation.

The 1794-OE4 supports the installation of Flex I/O communication adapters, including 1794-ACN15, 1794-ACNR15, 1794-AND, 1794-AENT, and 1794-AENTR. It can also be used with the MicroLogix compact controller via the 1794-ASB and 1794-APB communication adapters.

The 1794-OE4 is compatible with various terminal bases such as 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, and 1794-TBN. Only one terminal block is required for module installation. The terminal base provides DIN rail accessories and output signal terminals. 1794-OE4 The required key switch position is 4.

The module measures 94.0 x 94.0 x 53.3mm or 3.7 x 3.7 x 2.1 inches. It has a built-in group diagnostic led, consisting of a (1) green/red power/status indicator.

1794-OE4 Has a green status indicator to monitor the operation of the module. The module does not require calibration. The module has an output resolution of 12-bit + symbol, a voltage of 2.56 mV/cnt, and a current output of 5.13 μA /cnt. It uses pulse width modulation as its output conversion type, with an output conversion rate of 1.024 milliseconds for all channels. the
