1794-IE12 高密度模拟输入模块 用于接口模拟设备

【产品详情】

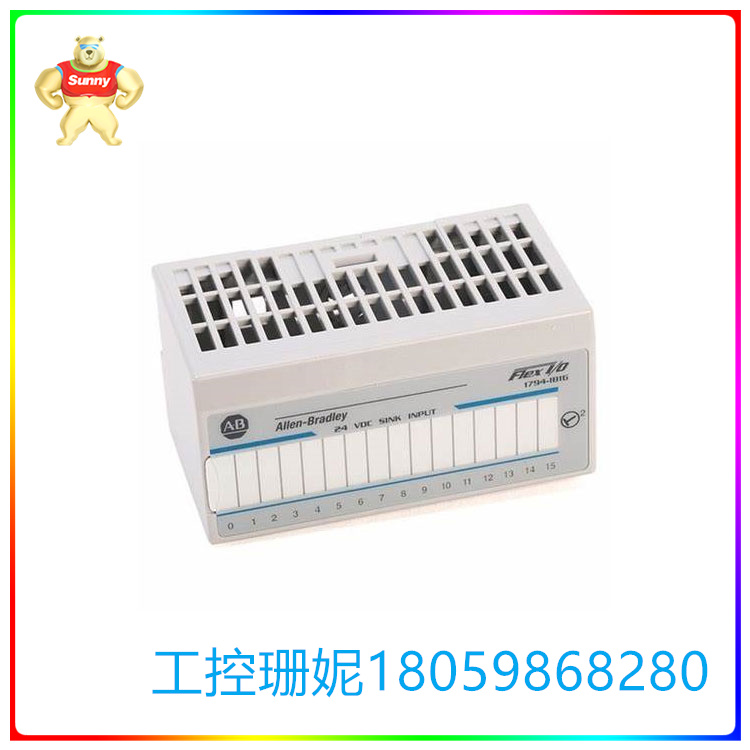

Allen-Bradley 1794-IE12是Flex I/O产品系列中的高密度模拟输入模块。该模块主要用于接口模拟设备，如变送器、指示灯、记录仪、单回路和多回路控制器等设备。

1794-IE12具有12个模拟输入通道，可配置0至20mA, 4至20mA， +/- 10VDC和0至10VDC输入信号类型。它有一个集成的模拟数字转换电路，采用逐次逼近法，电压分辨率为320 V/cnt，电流分辨率为0.641 A/cnt。模拟数据格式存储在16位左对齐寄存器中，所有通道的转换率为8.0 ms。1794-IE12的绝对精度为0.1%满量程@ 25°C，电压和电流输入精度漂移为0.004%满量程/°C。

1794-IE12设计用于1794-TB3G和1794-TB3GS端子基座。每个模块只需要一个端子底座。当将模块安装到相应的端子底座时，预期的键开关位置为3。钥匙开关位置是一个万无一失的硬件安装关键，防止错误的模块安装到错误的端子座上。

1794-IE12工作时，标称电压供应24VDC，可接受的电压供应范围为10至31.2 VDC。它的物理尺寸为3.7 x 3.7 x 2.1英寸。模块状态通过LED (Light Emitting Diode)绿色/红色电源/状态指示灯分组上报。

1794-IE12采用开式外壳。该模拟输入模块的兼容端子基座为1794-TB3GS和1794-TB3G。1794-IE12模块的额定电压为24伏直流，可接受范围为10.5至31.2 VDC。

1794-IE12兼容4 ~ 20ma或0 ~ 20ma的输入信号类型。该模块有一个标称的外部直流电源电流30毫安在24伏直流，45毫安在10伏直流，和一个60毫安认证。它还具有30伏或32毫安的最大输入过载，无论是连续的还是一次一个通道。

该模块在25摄氏度下的电流和电压输入的绝对精度为0.1%。对于电压和电流，其精度随温度的漂移为每摄氏度0.004%。对于一般的电流和电压输入，它的输入阶跃响应都为1.3秒，对于具有快速步进的电流和电压输入，它的输入阶跃响应都为0.09秒。1794-IE12在直流31.2伏时的功耗为1.2 W，在直流31.2伏时的散热为4.1 BTU/小时。注意，各个通道之间没有隔离。该模块在10到500赫兹的频率下工作振动为5g，工作冲击为30g，非工作冲击为50g。1794-IE12模块的工作温度为-20 ~ 60摄氏度，存储温度为-40 ~ 85摄氏度。

1794-IE12 高密度模拟输入模块 用于接口模拟设备

【英文介绍】

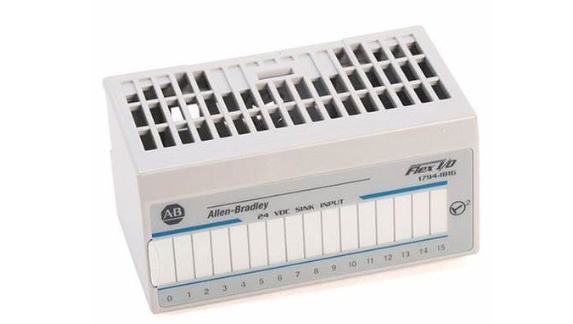

The Allen-Bradley 1794-IE12 is a high-density analog input module in the Flex I/O product family. The module is mainly used to interface analog devices such as transmitters, indicators, recorders, single loop and multi-loop controllers.

The 1794-IE12 has 12 analog input channels that can be configured with 0 to 20mA, 4 to 20mA, +/- 10VDC, and 0 to 10VDC input signal types. It has an integrated analog to digital conversion circuit, using successive approximation, voltage resolution of 320 V/cnt, current resolution of 0.641 A/cnt. The analog data format is stored in a 16-bit left-justified register with a conversion rate of 8.0 ms across all channels. The absolute accuracy of the 1794-IE12 is 0.1% full scale @ 25°C, with voltage and current input accuracy drifting to 0.004% full scale /°C.

The 1794-IE12 is designed for the 1794-TB3G and 1794-TB3GS terminal bases. Only one terminal base is required for each module. When the module is installed to the corresponding terminal base, the expected key switch position is 3. The key switch position is a foolproof hardware installation key that prevents the wrong module from being installed to the wrong terminal block.

1794-IE12 operates with a nominal voltage supply of 24VDC and an acceptable voltage supply range of 10 to 31.2 VDC. Its physical dimensions are 3.7 x 3.7 x 2.1 inches. Module status is reported in groups through the green/red power/status indicator (Light Emitting Diode).

1794-IE12 has an open housing. Compatible terminal bases for this analog input module are 1794-TB3GS and 1794-TB3G. The 1794-IE12 module has a rated voltage of 24 volts DC and an acceptable range of 10.5 to 31.2 VDC.

1794-IE12 is compatible with input signal types of 4 ~ 20ma or 0 ~ 20ma. The module has a nominal external DC supply current of 30 mA at 24 volts DC, 45 MA at 10 volts DC, and a 60 Ma certification. It also has a maximum input overload of 30 volts or 32 mA, either continuously or one channel at a time.

The absolute accuracy of the module's current and voltage inputs at 25 degrees Celsius is 0.1%. For voltage and current, the accuracy drifts with temperature to 0.004% per degree Celsius. It has an input step response of 1.3 seconds for both general current and voltage inputs, and 0.09 seconds for both current and voltage inputs with fast steps. The 1794-IE12 has a power consumption of 1.2 W at 31.2 volts DC and a heat dissipation of 4.1 BTU/ hour at 31.2 volts DC. Note that there is no isolation between channels. The module has an operating vibration of 5g at frequencies from 10 to 500 Hz, an operating shock of 30g and a non-operating shock of 50g. The operating temperature of the 1794-IE12 module is -20 to 60 degrees Celsius, and the storage temperature is -40 to 85 degrees Celsius.
