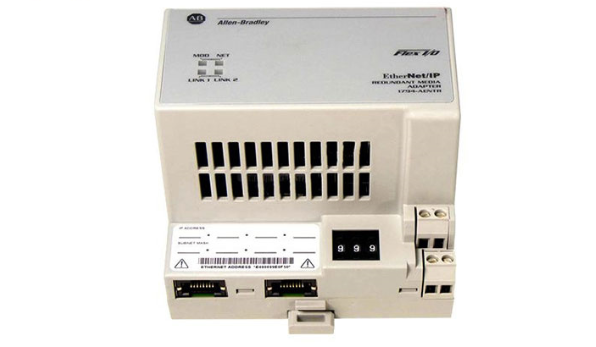

1794-AENTR 冗余以太网通信适配器 用于实现高可用性以太网网络

【产品详情】

Allen-Bradley模块1794-AENTR是Flex I/O产品系列的一个组件模块。该模块是一个冗余以太网通信适配器，通常用于实现高可用性以太网网络，因为它支持设备级环(DLR)拓扑的实现。

通过支持以太网I/P协议的双RJ45接口实现以太网连接。这些端口支持线性的简单通信网络和环拓扑的高可用性网络。它支持10/ 100mbps的通信速率，并能够将多达8个Flex I/O模块连接到网络连接的控制器上。

1794-AENTR直接安装在DIN导轨上。检查安装点是否有过大的振动和冲击。模块可接受的工作振动和冲击分别为5g和30g。1794-AENTR的电源端子上必须连接标称电压为24VDC的外部电源，为模块供电。可接受的电压供应范围为19.2…31.2V直流，包括5%的交流纹波。与模块建立连接时，推荐的导体线尺寸为0.33…3.31平方英尺。嗯，或者22…12AWG，绞合铜线，绝缘等级75°C或167°F或更高，最大绝缘厚度1.2 mm或3/64 in。

本模块提供状态指示灯，方便用户进行故障诊断和监控。它有双色LED指示灯，提供有关模块，网络，以太网Link1和以太网Link2的状态。模块和网络状态指示灯正常时为绿色，故障时为红色。链路1和链路2状态亮，黄色闪烁表示连接速度为10mbps，绿色闪烁表示连接速度为100mbps。

Allen-Bradley 1794-AENTR是一款Flex I/O双端口以太网/IP冗余媒体适配器模块。它可以处理多达8个I/O模块，通信速率为10到100 Mbps。它的冲击电流为18安培，持续时间为2毫秒。它的标称输入电压为直流24伏，输入电压范围为直流19.2至31.2伏，其中包括5%的交流纹波。该模块的最大功耗为500 mA, 24伏直流时的最大功耗为400 mA, 5伏直流时的最大Flexbus输出为640 mA。

以太网适配器模块，如1794-AENTR连接以太网/ ip支持的控制器，如ControlLogix和CompactLogix。它带有状态指示灯，允许用户监控网络(红/绿)，模块(红/绿)和两个链路(黄/绿)的状态。该模块的隔离电压连续为50伏，具有基本隔离类型。它已经在1000伏交流电下从电源到Flexbus和以太网进行了60秒的类型测试。在直流19.2伏时最大功耗为7.1 W，在直流24伏时最大功耗为24.2 BTU/小时。

请勿在上电状态下安装和拆卸本模块。该模块的电源应符合安全特低电压(SELV)标准或保护特低电压(PELV)标准，以符合CE低电压指令(LVD)。安装是用DIN导轨完成的。该模块不需要网络调度和路由表。1794-AENTR模块可以与同一DIN导轨上的FLEX I/O模块通信。用户在使用该模块前需要配置IP地址和可选的网关地址和子网掩码。整个1794-AENTR模块的尺寸为3.4 x 3.7 x 2.7英寸。此适配器适用于使用以太网网络的某些应用程序需求。这包括当需要定期发送数据或用于工厂管理时。有一个内置的交换机，用于实现高级别可用性，以及在具有internet/intranet连接的单一高速网络上进行驱动器配置、数据收集和过程控制。它使用控制和信息协议(CIP)。

1794-AENTR 冗余以太网通信适配器 用于实现高可用性以太网网络

【英文介绍】

The Allen-Bradley module 1794-AENTR is a component module in the Flex I/O product family. This module is a redundant Ethernet communication adapter that is commonly used to implement high availability Ethernet networks because it supports the implementation of device level loop (DLR) topology.

Ethernet connections are achieved through dual RJ45 ports that support Ethernet I/P protocols. These ports support linear simple communication networks and high-availability networks with ring topologies. It supports 10/100mbps communication rates and is capable of connecting up to eight Flex I/O modules to a network-connected controller.

The 1794-AENTR is mounted directly on the DIN rail. Check the installation point for excessive vibration and shock. The acceptable operating vibration and shock of the module are 5g and 30g respectively. The 1794-AENTR must be connected to an external power supply with a nominal voltage of 24VDC to supply power to the module. The acceptable voltage supply range is 19.2... 31.2V DC, including 5% AC ripple. When connecting to a module, the recommended conductor wire size is 0.33... 3.31 square feet. Well, or 22... 12AWG, stranded copper wire, insulation class 75°C or 167°F or higher, maximum insulation thickness 1.2 mm or 3/64 in.

This module provides status indicators to facilitate fault diagnosis and monitoring. It has two-color LED indicators that provide status regarding modules, networks, Ethernet Link1 and Ethernet Link2. Module and network status indicators are green when they are normal and red when they are faulty. Link 1 and link 2 are steady on. Blinking yellow indicates that the connection speed is 10 MBPS, and blinking green indicates that the connection speed is 100 MBPS.

Allen-Bradley 1794-AENTR is a Flex I/O dual-port Ethernet /IP redundant media adapter module. It can handle up to eight I/O modules with communication rates of 10 to 100 Mbps. It has an impulse current of 18 amps and a duration of 2 milliseconds. It has a nominal input voltage of 24 volts DC and an input voltage range of 19.2 to 31.2 volts DC, including 5% AC ripple. The module has a maximum power consumption of 500 mA, a maximum power consumption of 400 mA at 24 volts DC, and a maximum Flexbus output of 640 mA at 5 volts DC.

Ethernet adapter modules such as the 1794-AENTR connect to Ethernet/IP-supported controllers such as ControlLogix and CompactLogix. It comes with a status indicator that allows the user to monitor the status of the network (red/green), modules (red/green), and two links (yellow/green). The module has a continuous isolation voltage of 50 volts and has a basic isolation type. It has been type-tested from the power supply to Flexbus and Ethernet for 60 seconds at 1000 volts AC. The maximum power consumption is 7.1 W at 19.2 volts DC and 24.2 BTU/ hour at 24 volts DC.

Do not install or remove the module when it is powered on. The power supply of the module shall comply with the Safety Ultra-Low Voltage (SELV) standard or the Protection Ultra-Low Voltage (PELV) standard to comply with the CE Low Voltage Directive (LVD). Installation is done using DIN rails. This module does not require network scheduling and routing tables. The 1794-AENTR module can communicate with the FLEX I/O module on the same DIN rail. Users need to configure an IP address and optional gateway address and subnet mask before using the module. The entire 1794-AENTR module measures 3.4 x 3.7 x 2.7 inches. This adapter is suitable for certain application requirements that use Ethernet networks. This includes when data needs to be sent on a regular basis or for plant management. There is a built-in switch for high levels of availability, as well as drive configuration, data collection and process control on a single high-speed network with internet/intranet connectivity. It uses the Control and Information Protocol (CIP).
