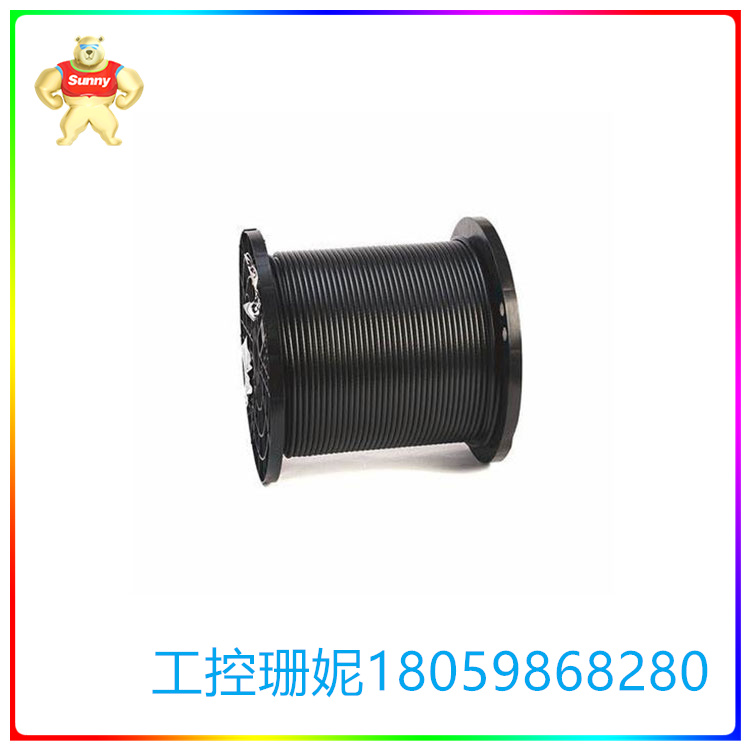

Allen-Bradley1786-RG6 高弯曲同轴电缆

【产品详情】

Allen-Bradley 1786-RG6F电缆可以是2种不同类型的同轴电缆:标准电缆和用于控制网工业网络的高弯曲同轴电缆。一种电缆与另一种电缆的区别之一是，高弯曲同轴电缆更容易安装在一些工业设施中常见的困难轨迹中。ControlNet的标准同轴电缆通过在目录编号上添加字母“a”来标识，高弯曲同轴电缆通过添加字母“b”来标识。两种类型的1786-RG6F同轴电缆之间的另一个区别是，与标准同轴电缆相比，高弯曲同轴电缆的衰减更高，这意味着当使用高弯曲电缆时，它连接的设备之间的总距离应该减少。

Allen-Bradley 1786-RG6F ControlNet同轴电缆应存放在干燥通风的空间，温度范围为-40至85摄氏度(-40至185华氏度)。操作时，温度应在0至60摄氏度(32至140华氏度)之间。为了正确安装Allen-Bradley 1786-RG6F ControlNet同轴电缆控制，制造商建议使用ControlNet同轴工具包，该工具包在目录号1786-CTK下可用。为了计算给定控制网段的总电缆长度，用户应将所有主干电缆段的距离相加。应测量轨迹，而不仅仅是从连接点A到连接点b的直线距离。应考虑垂直尺寸和水平尺寸。只有经过认证的技术人员才能安装新的ControlNet同轴电缆段，以保证正确的部署。

 Allen-Bradley1786-RG6 高弯曲同轴电缆

【英文介绍】

The Allen-Bradley 1786-RG6F cable can be two different types of coaxial cable: standard cable and high bend coaxial cable for control network industrial networks. One of the differences between one type of cable and the other is that high-bend coaxial cables are easier to install in the difficult trajectories common in some industrial facilities. ControlNet's standard coaxial cables are identified by adding the letter "a" to the catalog number, and high-bending coaxial cables are identified by adding the letter "b". Another difference between the two types of 1786-RG6F coaxial cable is that the attenuation of high-bend coaxial cable is higher compared to standard coaxial cable, which means that when using high-bend cable, the total distance between the devices it connects should be reduced.

Allen-Bradley 1786-RG6F ControlNet coaxial cables should be stored in a dry and ventilated space with a temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). When operating, the temperature should be between 0 and 60 degrees Celsius (32 and 140 degrees Fahrenheit). To properly install Allen-Bradley 1786-RG6F ControlNet coaxial cable controls, manufacturers recommend using the ControlNet coaxial kit, which is available under catalog number 1786-CTK. To calculate the total cable length for a given control network segment, the user should add the distances of all backbone cable segments. The trajectory should be measured, not just the straight-line distance from connection point A to connection point b. Vertical and horizontal dimensions should be considered. Only certified technicians can install new ControlNet coax segments to ensure proper deployment.
