1785-TR10BT 双绞线收发器 提供数据传输和接收

【产品详情】

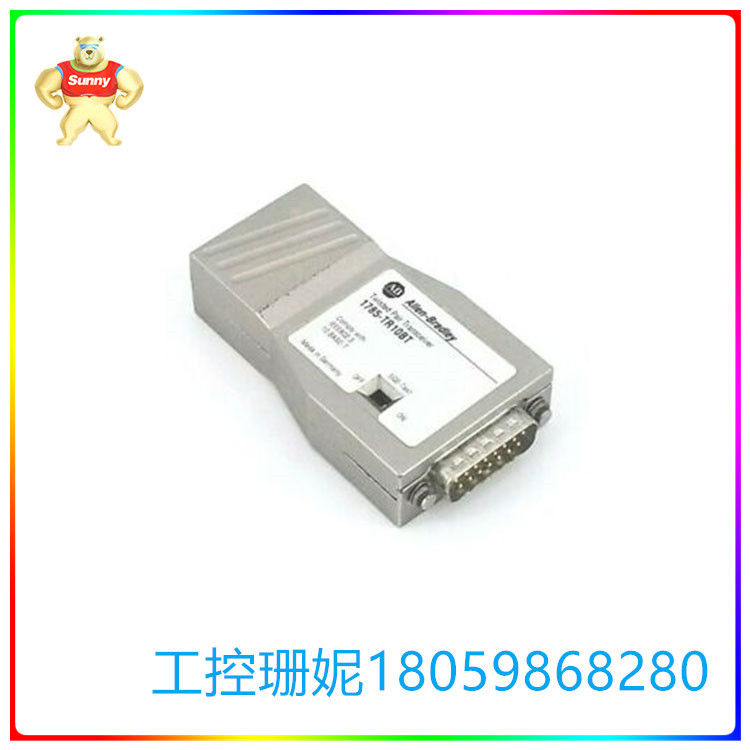

1785- tr10bt收发器是Allen-Bradley设计的双绞线收发器，是其1785系列可编程控制器的独家配件。该收发器使设备和AUI接口之间的连接能够通过屏蔽和扭曲电缆以每秒10 mbit / s的速率连接到CSMA/CD LAN。此特定收发器的其他突出功能包括其监控电源、TxData、碰撞/干扰控制、链路状态沿和自动极性交换功能。Allen-Bradley 1785-TR10BT双绞线收发器附带一个SQE测试，可以在外部禁用，而无需断开整个部分。它具有低电流消耗额定值和紧凑的结构，所以它可以很容易地安装。

Allen-Bradley 1785-TR10BT双绞线收发器提供数据传输和接收以及同一网络中数据冲突检测的LED指示。除了通过LED指示状态更新外，该收发器还可以将这些动作报告给设备。该收发器还具有jabber控制功能，可保护网络免受大量数据包的影响。Allen-Bradley 1785-TR10BT双绞线收发器的工作电压为12伏，通过15针插座从连接的设备中获取。双绞线需要衰减才能正常安装。收发器顶部的滑动开关也用于激活和停用SQE测试。在启动收发器之前要检查的一个重要事实是，所连接的设备是否需要SQE处于打开或关闭状态，以便在需要时准备好启动操作。

1785-TR10BT 双绞线收发器 提供数据传输和接收

【英文介绍】

The 1785-TR10BT transceiver is a twisted-pair transceiver designed by Allen-Bradley as an exclusive accessory to its 1785 series of programmable controllers. This transceiver enables the connection between the device and the AUI interface to connect to the CSMA/CD LAN at a rate of 10 mbit/s via shielded and twisted cables. Other outstanding features of this particular transceiver include its monitoring power supply, TxData, collision/interference control, link state edge, and automatic polarity switching capabilities. The Allen-Bradley 1785-TR10BT twisted-pair transceiver comes with an SQE test that can be disabled externally without having to disconnect the entire section. It has a low current consumption rating and compact construction, so it can be easily installed.

The Allen-Bradley 1785-TR10BT twisted-pair transceiver provides LED indications for data transmission and reception as well as data collision detection in the same network. In addition to indicating status updates via leds, the transceiver can also report these actions to the device. The transceiver also has jabber control, which protects the network from large numbers of packets. The Allen-Bradley 1785-TR10BT twisted pair transceiver operates at 12 volts, taken from the connected device via a 15-pin socket. The twisted pair requires attenuation for proper installation. A sliding switch at the top of the transceiver is also used to activate and deactivate SQE tests. An important fact to check before starting the transceiver is whether the connected device requires SQE to be on or off in order to be ready for startup operation if needed.
