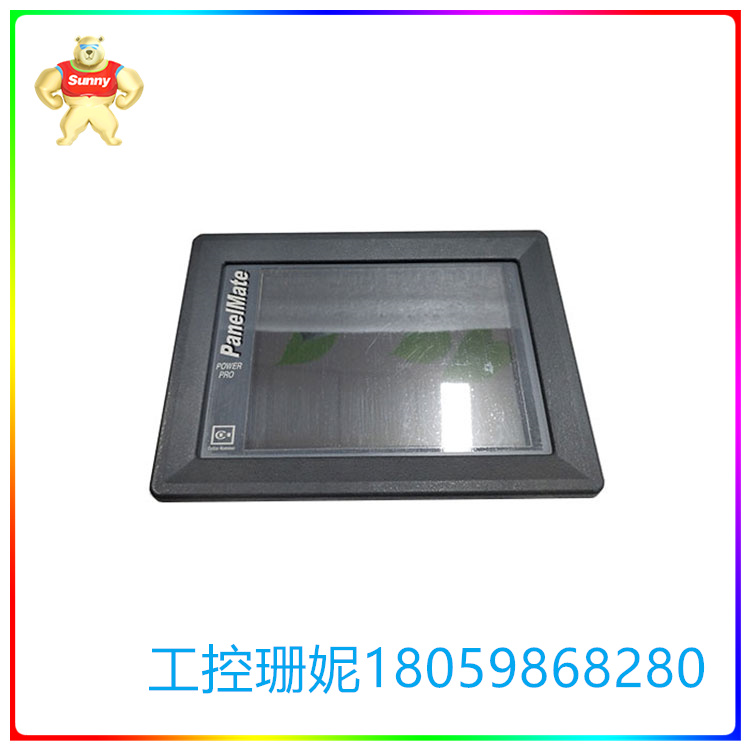

A-B 1785T-PMPP-1700 操作员接口终端

【产品详情】

伊顿1785T-PMPP-1700终端是一个操作员接口终端。Eaton cutter - hammer在工业系统控制应用的PanelMate Power Pro系列中设计和制造了该终端。操作终端要求输入直流电压24伏。它的电流消耗为1.1安培，最大功率消耗为28瓦。1785T-PMPP-1700终端有一个8英寸TFT显示屏。终端显示分辨率为640 × 480像素。显示屏的背光是现场可更换的。该显示器还支持使用电阻技术的触摸控制，即使用户戴着手套也可以接收触摸命令。1785T-PMPP-1700端子采用单件设计，便于面板安装。两个串口是终端的标准配置。这些串行端口可配置RS-232或RS-422/RS-485通信。波特率范围为110 ~ 19200波特。兼容的可选卡包括Modbus Plus、Profibus、Allen-Bradley DH/DH+/Remote I/O和DeviceNet可选卡。

Eaton cutter - hammer 1785T-PMPP-1700 PanelMate Power Pro系列操作接口终端与所有主要制造商的plc和类似类型的控制器通信。终端的内置模板包括在屏幕上替换仪表和数字读数。操作界面的存储容量包括100页和5000条消息。1785T-PMPP-1700端子专为NEMA 4/4X型或12个机箱设计。终端运行时的散热为23w / h (79btu / h)。端子的工作温度范围为0℃~ 50℃。终端的非工作或存储温度范围为-20℃~ 60℃。1785T-PMPP-1700端子尺寸为10.51 x 7.63 x 2.75英寸。安装所需的开孔尺寸为9.38 x 6.5英寸。1785T-PMPP-1700端子通过UL、cUL和CSA认证。它还通过了CE认证。1785T-PMPP-1700端子的安装和操作必须由具有相关经验的专业人员进行。

A-B 1785T-PMPP-1700 操作员接口终端

【英文介绍】

The Eaton 1785T-MPP-1700 terminal is an operator interface terminal. Eaton cutter-hammer designed and manufactured the terminal in the PanelMate Power Pro range for industrial system control applications. The operating terminal requires an input DC voltage of 24 volts. It has a current consumption of 1.1 amps and a maximum power consumption of 28 watts. The 1785T-MPP-1700 terminal has an 8-inch TFT display. The terminal display resolution is 640 × 480 pixels. The backlight of the display is field replaceable. The display also supports touch control using resistance technology, allowing users to receive touch commands even when wearing gloves. The 1785T-MPP-1700 terminal is a single-piece design for easy panel installation. Two serial ports are standard for terminals. These serial ports can be configured for RS-232 or RS-422/RS-485 communication. The baud rate ranges from 110 to 19200 baud. Compatible optional cards include Modbus Plus, Profibus, Allen-Bradley DH/DH+/Remote I/O, and DeviceNet optional cards.

Eaton cutter-hammer 1785T-PMP-1700 PanelMate Power Pro series operating interface terminals communicate with PLCS and similar types of controllers from all major manufacturers. The terminal's built-in template includes on-screen replacement of gauges and digital readings. The storage capacity of the operation interface includes 100 pages and 5000 messages. The 1785T-MPP-1700 terminals are designed for NEMA 4/4X or 12 chassis. The terminal's heat dissipation during operation is 23w/h (79btu/h). The operating temperature of the terminal ranges from 0 ° C to 50 ° C. The terminal's non-working or storage temperature ranges from -20 ° C to 60 ° C. The 1785T-MPP-1700 terminals measure 10.51 x 7.63 x 2.75 inches. The required opening size for installation is 9.38 x 6.5 inches. The 1785T-MPP-1700 terminals are UL, cUL, and CSA certified. It is also CE certified. Installation and operation of the 1785T-MPP-1700 terminal must be carried out by professionals with relevant experience.

A-B 1785T-PMPP-1700 操作员接口终端
