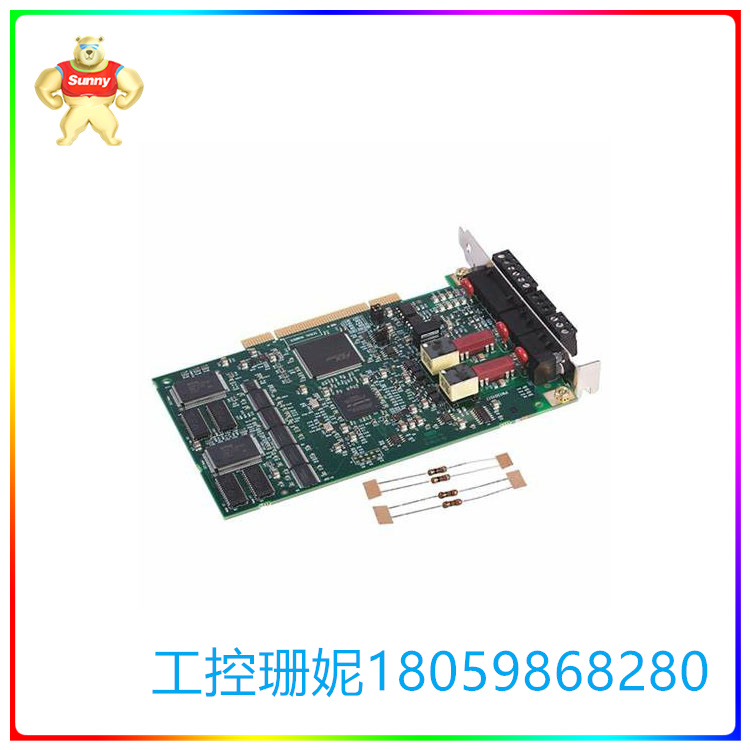

1784-PKTXD 网络接口卡 PCI总线插槽

【产品详情】

1784-PKTXD卡是艾伦-布拉德利网络接口卡。1784-PKTXD网络接口卡用于在DH485网络下，将pc机通过DH+或SLC处理器连接到PLC控制器。这使得该装置能够实现更简单，更有效的数据采集过程，这对工业应用至关重要。1784-PKTXD卡具有I/O扫描仪功能，该功能也可用于不同的卡，并与软控制或嵌入式控制引擎一起使用。1784-PKTXD卡结合了通用PCI卡作为标准功能。因此，该卡兼容不同的操作系统。1784-PKTXD卡可用于需要通过工业设备或计算机桌面进行一般编程、配置和监控功能的环境中。

1784-PKTXD卡是理想的网络接口卡。因此，由于它是外设组件互连的通用卡，所以必须插入PCI总线插槽。如果操作员使用通用卡，则必须将其放置在3.3伏或5伏信号关键的PCI总线插槽中。1784-PKTXD卡与数据高速公路Plus网络上的节点通信。这包括PLC-5, PLC-5/250和SLC 5/04处理器。该组件完成数据传输、管理和本地网络诊断。1784-PKTXD卡与主机PC机通过双端口接口进行数据交换。这个双端口接口需要多达4 KB的内存，从基本内存地址开始，该地址在PC启动时由PCI BIOS寻址到卡。

1784-PKTXD 网络接口卡 PCI总线插槽

【英文介绍】

The 1784-PKTXD card is an Allen-Bradley network interface card. The 1784-PKTXD network interface card is used to connect a pc to a PLC controller through a DH+ or SLC processor on a DH485 network. This allows the device to enable a simpler and more efficient data acquisition process, which is crucial for industrial applications. The 1784-PKTXD card has an I/O scanner function, which can also be used with different cards and with soft control or embedded control engines. The 1784-PKTXD card combines universal PCI cards as standard features. Therefore, the card is compatible with different operating systems. The 1784-PKTXD card can be used in environments where general programming, configuration, and monitoring functions are required from industrial equipment or computer desktops.

The 1784-PKTXD card is the ideal network interface card. Therefore, since it is a universal card for interconnecting peripheral components, it must be inserted into the PCI bus slot. If the operator uses a universal card, it must be placed in a PCI bus slot where the 3.3 volt or 5 volt signal is critical. The 1784-PKTXD card communicates with nodes on the Data Superhighway Plus network. This includes PLC-5, PLC-5/250, and SLC 5/04 processors. This component completes data transmission, management, and local network diagnosis. The 1784-PKTXD card exchanges data with the host PC through a dual-port interface. This two-port interface requires up to 4 KB of memory, starting at the base memory address, which is addressed to the card by the PCI BIOS at PC startup.

1784-PKTXD 网络接口卡 PCI总线插槽
