1771-P4R 冗余电源模块 可提高系统可用性

【产品详情】

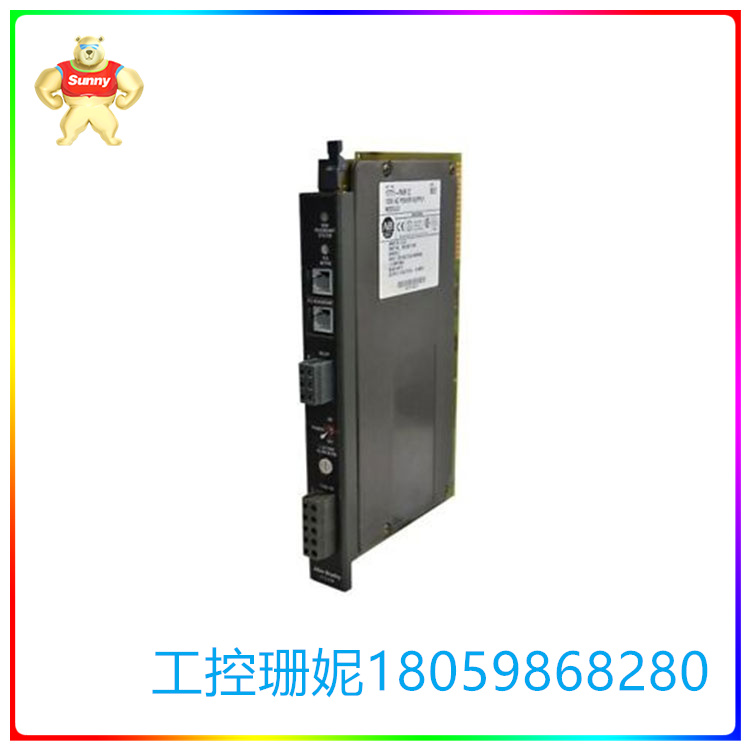

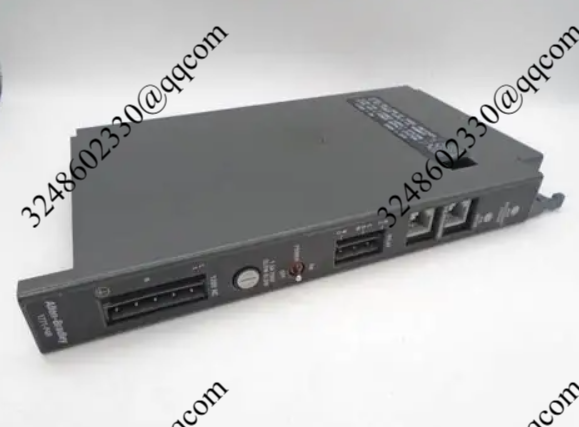

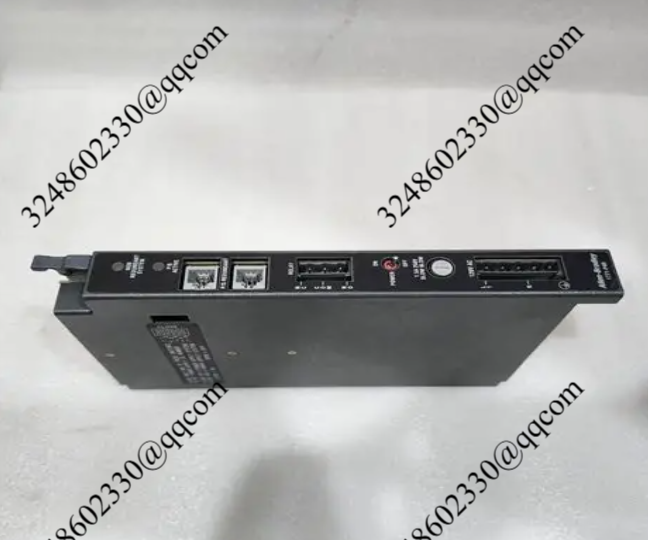

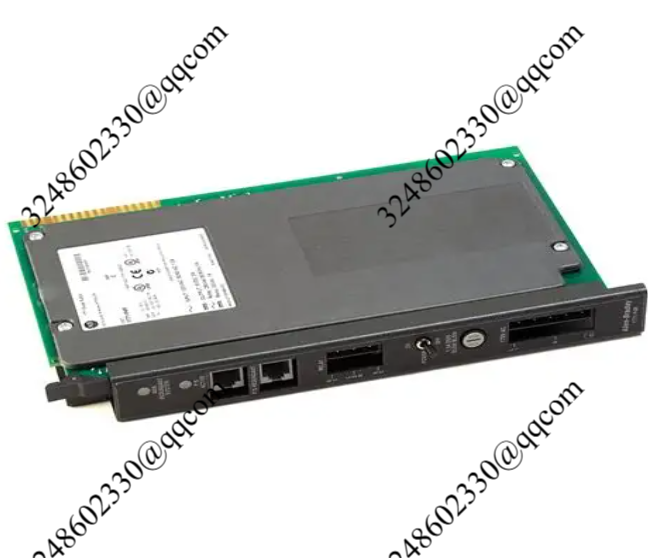

Allen-Bradley的1771- p4r PLC 5冗余电源模块是位于1771机箱中的电气设备，可提高系统可用性，减少系统电源故障导致的机器停机时间。当电源故障时，可防止系统中断或系统运行完全停止。1771-P4R的输入电压范围为97-132V AC (50-60Hz)，并提供5V DC (8A)输出电流。该模块具有N+1设计特性，在60摄氏度时使用N+1模块提供的最大输出电流为8A(2单元系统)，14A(3单元系统)和20A(4单元系统)。最大功耗16W，相邻槽位10W，最大散热47.8 BTU/hr。1771-P4R模块在5V DC下提供300mA背板电流，经过测试可承受1000V电压隔离1秒。1771-P4R电路采用2.5mm2铜线尺寸，绝缘厚度为3/64英寸，额定温度为60摄氏度，并附带冗余电缆。它提供了一个15A的分支电路保护，它还通过1.5 a 250V交流慢熔保险丝和Bussman MDL 1.5保险丝提供电路保护。该模块具有额定交流24-250V, 1/6HP, 1A和30V DC的报警电路。1771-P4R的测试工作温度范围为0至60摄氏度，无冷凝相对湿度为5-95%，无降级，并通过CSA, NEMA和ul认证。

Allen-Bradley 1771- p4r是与1771可编程逻辑控制器(PLC)产品系列一起使用的电源模块。该模块专门用于增加系统的正常运行时间和可用性，因为它允许配对到另一个1771-P4R，沿着供电线路提供额外的保护层。通过冗余电源配置，供电单元同时运行，其中一个单元的输出作为备用电源。当有功供电单元故障或关闭时，二次有功供电接管，防止系统不必要的停机或关机。

1771-P4R在输入电压范围为97-132伏交流电，频率为47-73赫兹时工作。它向背板提供5伏直流输出电压和8安培输出电流。它带有一个1.5安培，250伏交流额定积分保险丝。该模块在1771机箱中仅占1个槽位。此外，它还配备了额定250伏交流电的输出报警。

1771-P4R设计用于2单元系统的最大系统输出电流为8安培;3单位制是14安培，4单位制是20安培。这些额定值在60摄氏度的工作环境下使用N+1冗余。

连接到该模块的线路被终止到该模块的接线块。该模块的Allen-Bradley接线块具有Allen-Bradley零件号941274-05和等效Wago零件号231-205 / 000-008。此外，用于此电源的继电器接线块为941274-03，等效Wago零件号为231-203 / 000-008。

1771-P4R 冗余电源模块 可提高系统可用性

【英文介绍】

Allen-Bradley's 1771-P4R PLC 5 Redundant power supply module is an electrical device located in the 1771 chassis that improves system availability and reduces machine downtime due to system power failures. In the event of a power failure, it prevents system interruption or a complete stop of system operation. The 1771-P4R has an input voltage range of 97-132V AC (50-60Hz) and provides 5V DC (8A) output current. The module has an N+1 design feature and provides a maximum output current of 8A(2-unit system), 14A(3-unit system) and 20A(4-unit system) at 60 degrees Celsius using the N+1 module. The maximum power consumption is 16W, the adjacent slot is 10W, and the maximum heat dissipation is 47.8 BTU/hr. The 1771-P4R module delivers 300mA backplane current at 5V DC and has been tested to withstand 1000V voltage isolation for 1 second. The 1771-P4R circuit comes in a 2.5mm2 copper wire size with 3/64 inch insulation, a temperature rating of 60 degrees Celsius, and comes with redundant cables. It provides a 15A branch circuit protection, and it also provides circuit protection through a 1.5A 250V AC slow fuse and a Bussman MDL 1.5 fuse. The module has alarm circuits rated AC 24-250V, 1/6HP, 1A and 30V DC. The 1771-P4R is tested for operating temperatures ranging from 0 to 60 degrees Celsius, non-condensing relative humidity of 5-95%, no degradation, and is CSA, NEMA, and ul certified.

The Allen-Bradley 1771-P4R is a power module used with the 1771 Programmable Logic Controller (PLC) product family. This module is specifically designed to increase the uptime and availability of the system, as it allows pairing to another 1771-P4R, providing an additional layer of protection along the power supply line. With a redundant power supply configuration, the power supply units operate simultaneously, with the output of one unit acting as a backup power supply. When the active power supply unit fails or shuts down, the secondary active power supply takes over to prevent unnecessary shutdown or shutdown of the system.

The 1771-P4R operates at an input voltage range of 97-132 VAC and a frequency of 47-73 Hz. It provides 5 volts DC output voltage and 8 amps output current to the backplane. It comes with a 1.5 amp, 250 volt AC rated integral fuse. The module occupies only one slot in the 1771 chassis. In addition, it is equipped with an output alarm rated at 250 volts AC.

The 1771-P4R is designed for 2-unit systems with a maximum system output current of 8 amps; 3 units is 14 amperes, 4 units is 20 amperes. These ratings use N+1 redundancy at 60 ° C operating environments.

The line connected to the module is terminated to the block of the module. The Allen-Bradley block for this module has Allen-Bradley part number 941274-05 and equivalent Wago part number 231-205/000-008. In addition, the relay wiring block for this power supply is 941274-03 and the equivalent Wago part number is 231-203/000-008.
