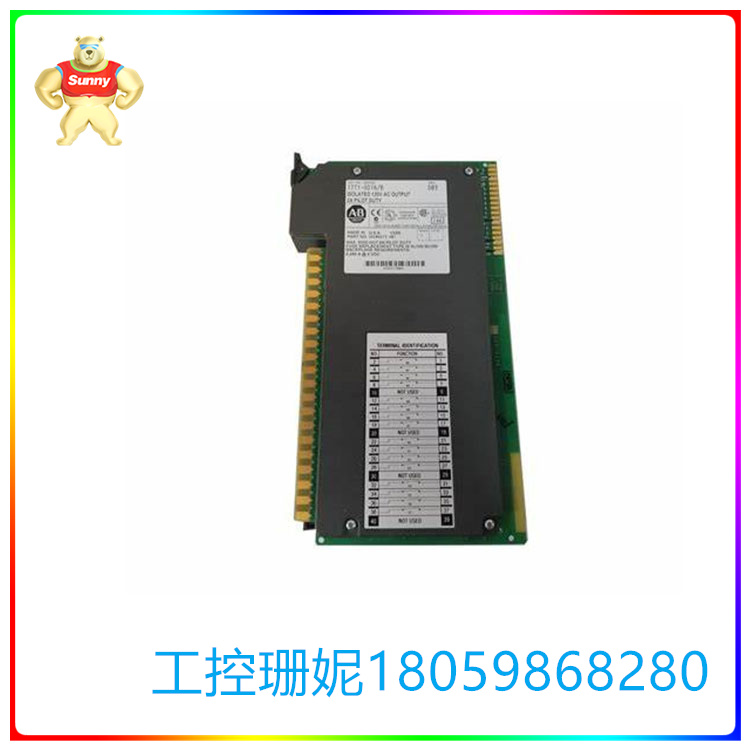

1771-OD16 隔离交流输出模块 带有16个输出

【产品详情】

艾伦布拉德利1771-OD16是一个隔离交流输出模块，已经配备了一个状态指示灯功能。前面板有1个绿色活动指示灯、1个红色熔丝烧断指示灯和16个红色状态指示灯。当模块被激活并成功初始化时，这些指示灯变为活动状态。当保险丝已被清除或拆除，并且与保险丝连接的通道已接通时，保险丝熔断指示灯亮。如果给定的通道电压高于模块在状态电压下的规定最小值，并且输出负载电流小于或等于5ma，则熔断电路将不工作。待更换保险丝并回收机箱后复位。更换保险丝时，请先断开电源。

艾伦布拉德利1771-OD16应与I/O 1771-A1B或A4B底盘或更高版本一起使用。该模块带有16个输出，额定电压为74至138伏交流。该模块的工作频率为47至63赫兹。功耗范围为13 ~ 1w，每小时散热范围为44.4 ~ 3.4 BTU。其底板最大电流为200毫安。

1771-OD16 隔离交流输出模块 带有16个输出

【英文介绍】

The Alan Bradley 1771-OD16 is an isolated AC output module that has been equipped with a status indicator function. The front panel has 1 green activity indicator, 1 red fuse burn indicator, and 16 red status indicators. When the module is activated and successfully initialized, these indicators become active. When the fuse has been cleared or removed and the channel connected to the fuse is connected, the blown fuse indicator is on. If the given channel voltage is higher than the specified minimum value of the module at the state voltage, and the output load current is less than or equal to 5ma, the fuse circuit will not work. Replace the fuse, remove the chassis, and reset the chassis. Before replacing the fuse, disconnect the power supply.

The Alan Bradley 1771-OD16 should be used with the I/O 1771-A1B or A4B chassis or later. The module comes with 16 outputs rated from 74 to 138 volts AC. The module operates at a frequency of 47 to 63 Hz. The power consumption range is 13 to 1w, and the heat dissipation range is 44.4 to 3.4 BTU per hour. The maximum current of the base plate is 200 mA.

1771-OD16 隔离交流输出模块 带有16个输出
