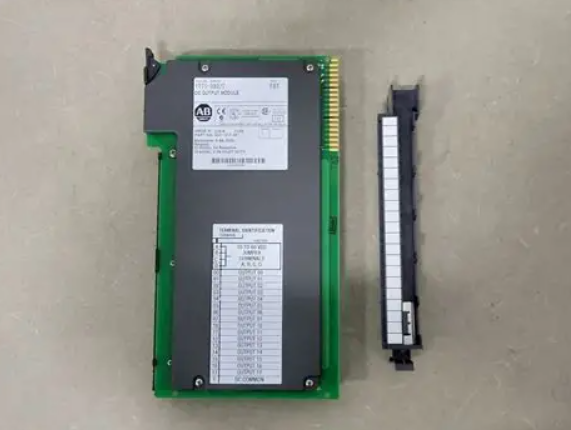

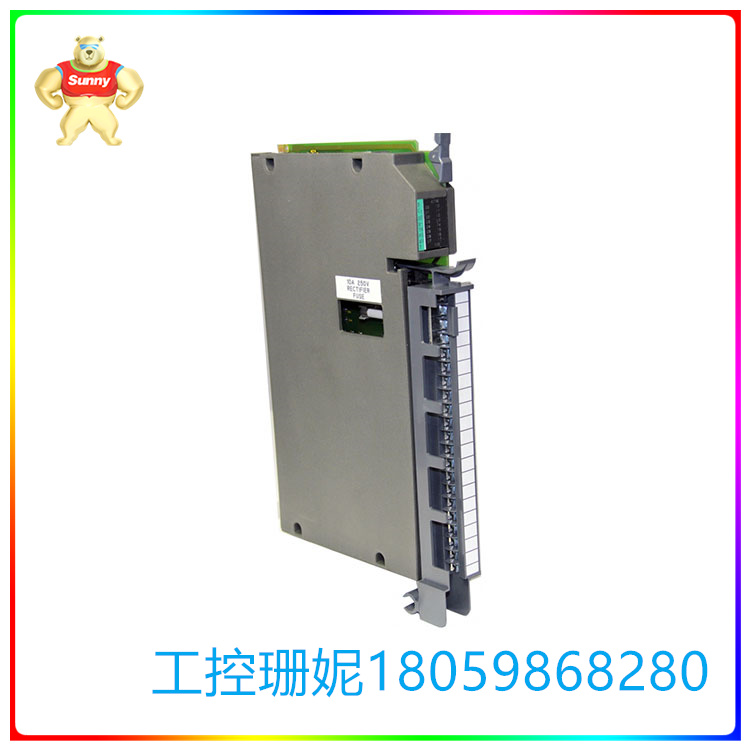

1771-OBD 是十六通道  非隔离输出模块

【产品详情】

Allen-Bradley 1771- obd是十六(16)通道，非隔离输出模块，是1771产品公告的一部分。该模块特别适用于PLC5产品系列，通常用于为直流供电的电气负载供电，如先导灯，继电器线圈，电磁驱动设备和其他设备。它的输出电压范围为10-60 VDC，标称电压输出为48 VDC。

1771-OBD的输出通道额定为2a，电阻，每个模块不超过8a，每个导频工作输出0.2 A。当模块的最小负载电流为2.5 mA时，每个通道的最小浪涌电流额定值为每10 ms输出4 A，每2 s可重复，每10 ms最大输出25 A，每2 s可重复。

1771-OBD的导通状态压降为1.5V dc;最大断态漏电流0.5 mA;输出信号延迟0.1毫秒为关到开过渡和0.2毫秒为开到关过渡。除了1771-A4 I/O机箱，它可以安装在1771-A1B到1771-A4B的任何I/O机箱上。它与1771-WH, 1771-WHF和1771-WHFB现场接线臂兼容，拧紧力要求为1.0 Nm (9 lb-in)，模块键控在10和12 / 22和24之间。用于终止输出设备到每个模块通道的适当信号线范围为0.34-2.5 mm2(22…14 AWG)实心或绞合铜线，绝缘等级为120°C(248°F)或更高，最大绝缘厚度为1.2 mm(3/64英寸)。

它的最大浪涌电流为每输出4安培，持续10毫秒，每2秒可重复。1771-OBD模块的最小负载电流为2.5 mA，最大通状态压降为1.5伏直流，最大关状态漏电流为0.5 mA。1771-OBD模块的最大功耗为15.6 W，最大散热为53.3 BTU/h，最大背板电流为400ma，直流电压为5v。不先切断电场两侧的电源就连接或断开电缆会引起电弧。工作温度范围为0至60摄氏度(32至140华氏度)，存储温度范围为-40至85摄氏度(-40至185华氏度)，相对湿度范围为5%至95%(无冷凝)，该模块是一种耐用的设备，可以承受许多不同的条件。1771-OBD的工作冲击为30g(3脉冲，11毫秒)，非工作冲击为50g(3脉冲，11毫秒)。此外，1771-OBD具有4 kV接触放电和8 kV空气放电的ESD抗扰度。

1771-OBD 是十六通道  非隔离输出模块

【英文介绍】

Allen-Bradley 1771-OBD is a sixteen (16) channel, non-isolated output module that is part of the 1771 product announcement. This module is particularly suitable for the PLC5 product family and is commonly used to power electrical loads powered by DC, such as pilot lamps, relay coils, electromagnetic drive devices and other equipment. It has an output voltage range of 10-60 VDC and a nominal voltage output of 48 VDC.

The output channel of the 1771-OBD is rated 2a, resistance, no more than 8a per module, and 0.2 A per pilot operating output. When the minimum load current of the module is 2.5 mA, the minimum surge current rating for each channel is 4 A output every 10 ms, repeatable every 2 s, and the maximum output every 10 ms is 25 A, repeatable every 2 s.

The on-state voltage drop of the 1771-OBD is 1.5V dc; The maximum off-state leakage current is 0.5mA; The output signal is delayed 0.1 ms for the off to on transition and 0.2 ms for the on to off transition. Except for the 1771-A4 I/O chassis, it can be mounted on any I/O chassis from 1771-A1B to 1771-A4B. It is compatible with the 1771-WH, 1771-WHF, and 1771-WHFB field wiring arms, with a tightening force requirement of 1.0 Nm (9 lb-in) and module keying between 10 and 12/22 and 24. The appropriate signal line range for terminating the output device to each module channel is 0.34-2.5 mm2(22... 14 AWG) Solid or stranded copper wire with an insulation class of 120°C(248°F) or higher and a maximum insulation thickness of 1.2 mm(3/64 inch).

It has a maximum surge current of 4 amps per output for 10 milliseconds and can be repeated every 2 seconds. The 1771-OBD module has a minimum load current of 2.5 mA, a maximum open state voltage drop of 1.5 volts DC, and a maximum off state leakage current of 0.5 mA. The 1771-OBD module has a maximum power consumption of 15.6 W, a maximum heat dissipation of 53.3 BTU/h, a maximum backplane current of 400ma, and a DC voltage of 5v. Connecting or disconnecting the cable without first cutting off the power supply on both sides of the electric field can cause arcing. With an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and a relative humidity range of 5 to 95 percent (non-condensing), the module is a durable device that can withstand many different conditions. The 1771-OBD has an operating shock of 30g(3 pulses, 11ms) and a non-operating shock of 50g(3 pulses, 11ms). In addition, the 1771-OBD has ESD immunity for 4 kV contact discharge and 8 kV air discharge.

1771-OBD 是十六通道  非隔离输出模块
