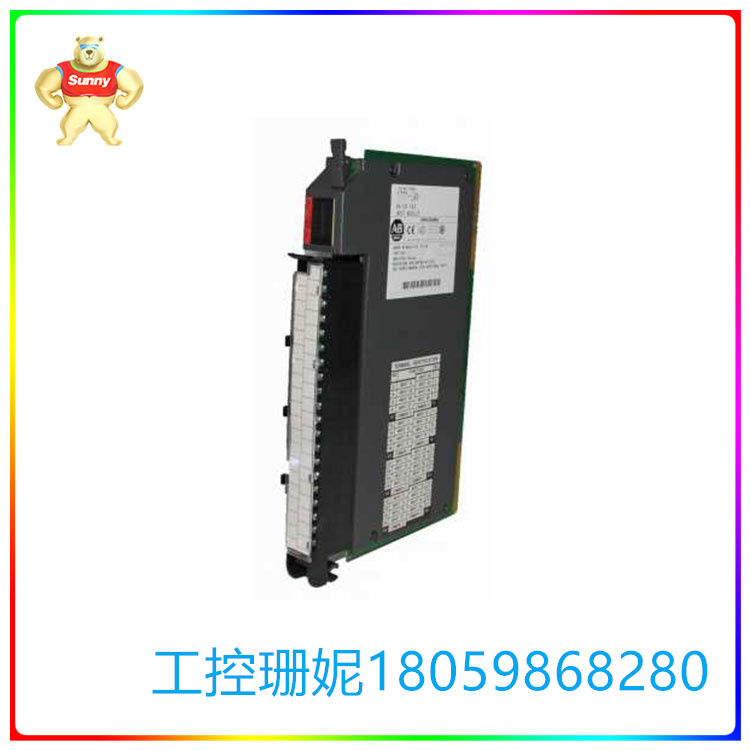

1771-IAN 数字AC/DC输入模块 交流信号转换为处理器

【产品详情】

Allen-Bradley 1771-IAN是PLC 5数字AC/DC输入模块。它将用户设备提供的交流信号转换为处理器所需的逻辑电平。直接控制PLC数据表中相应位的状态。它包含各种输入设备，如按钮，限位开关，指示灯，电机启动器和报警器，用于与开/关传感器和执行器接口。它采用模块化设计，具有节省空间和口袋友好的方式，可以向PLC控制系统添加输入。它配备了一个1771-WN的接线臂来取代模块，省去了断开接线的需要。它是a系列模块，支持½和1槽I/O寻址。

1771-IAN模块有32个(4组8个)输入，120V交流/直流电压类别。它的工作电压范围为85 - 138V AC，在交流开启状态下典型的信号延迟为10ms(±7)，在交流关闭状态下典型的信号延迟为20ms(±15)。它在60Hz时的最大断开电流为2.3mA，在50Hz时为1.9mA，背板电流负载为280mA。最大功耗7W，散热24.1 BTU/hr。它安装在包含PLC处理器的1771 I/O机箱中。用于将其放入右槽的键带位于上连接器的引脚20和22之间以及用于下连接器的引脚16和18之间。

1771-IAN模块前面板上有32个红色状态指示灯。它包含光电隔离，以保护系统电路免受电瞬变的影响。它还包含一个输入滤波功能，以减少电气噪声。

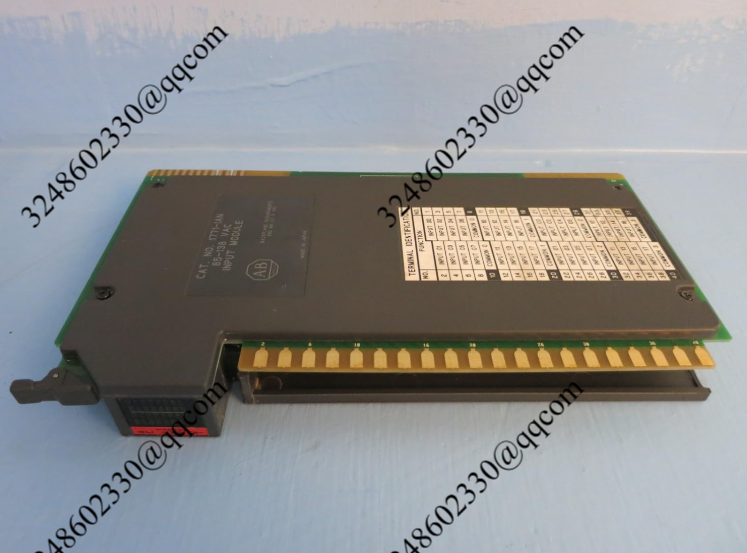

1771-IAN 数字AC/DC输入模块 交流信号转换为处理器

【英文介绍】

The Allen-Bradley 1771-IAN is a PLC 5 digital AC/DC input module. It converts the AC signal provided by the user device into the logic level required by the processor. Directly control the status of the corresponding bits in the PLC data table. It contains various input devices such as buttons, limit switches, indicators, motor starters and alarms for interface with on/off sensors and actuators. It has a modular design with a space-saving and pocket-friendly way to add inputs to the PLC control system. It is equipped with a 1771-WN wiring arm to replace the module, eliminating the need to disconnect the wiring. It is a Series A module that supports ½ and 1 slot I/O addressing.

The 1771-IAN module has 32 inputs (4 sets of 8) in the 120V AC/DC voltage category. It operates in the voltage range of 85-138 V AC, with a typical signal delay of 10ms(±7) in the AC on state and 20ms(±15) in the AC off state. It has a maximum disconnecting current of 2.3mA at 60Hz, 1.9mA at 50Hz, and a backplane current load of 280mA. Maximum power consumption 7W, heat dissipation 24.1 BTU/hr. It is installed in a 1771 I/O case containing a PLC processor. The key tape for putting it into the right slot is located between pins 20 and 22 of the upper connector and between pins 16 and 18 of the lower connector.

The 1771-IAN module has 32 red status indicators on the front panel. It includes photoelectric isolation to protect system circuits from electrical transients. It also includes an input filtering function to reduce electrical noise.
