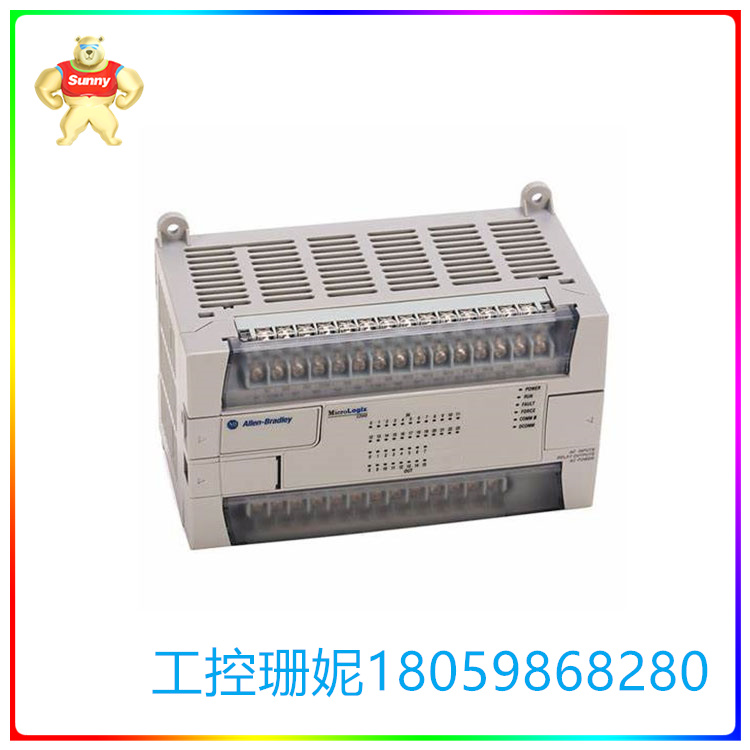

1762-L40BWAR 可编程逻辑控制器
【产品详情】
1762-L40BWAR是Allen-Bradley的可编程逻辑控制器(PLC)。该控制器是MicroLogix 1200控制器，理想地用于实现微型和小型自动化要求。
1762-L40BWAR主要具有两个(2)通信接口，位于控制器的前面板和左侧。两个通信端口都是8针迷你din圆形连接器。前面板端口是主要端口，可用于与编程工作站，人机界面(HMI)和监控和数据采集(SCADA)系统通信。编程端口仅用于控制器编程、在线编辑和测试功能。该端口同时工作，有助于防止在需要同时建立控制器通信时拆除与主端口的现有连接。
1762-L40BWAR的嵌入式I/O通道包括二十(20)个标准24VDC输入，四(4)个快速24VDC输入和十六(16)个继电器输出。输入通道由位于输入通道4及更高的二十(20)个标准输入组成，而快速输入位于通道0-3。
1762-L40BWAR由外部电压范围为100-240VAC，频率为47-63 Hz供电。它的设计承受冲击电流额定值为25A，在120VAC供电时为8毫秒，在240VAC供电时为4毫秒。控制器的电源使用量为82 VA, 5VDC时电源输出为600 mA, 24VDC时电源输出为500 mA。该控制器能够在24VDC时提供最大400 mA和400 400µF的传感器功率。
其中20个输入是24伏直流电，另外4个是24伏快速直流电。16路输出为继电器输出。该模块需要交流电压为120伏~ 240伏，散热为22w。有两种数量的涌流。即在交流120伏时25安培8毫秒，在交流240伏时40安培4毫秒。本模块的电源使用为82va，输入电路类型为24v直流吸收或源电源。该模块的输出电路类型为继电器型。1762-L40BWAR的工作温度为0 ~ 55摄氏度。请将本模块保存在温度为-40至85摄氏度的地方。1762-L40BWAR拥有多个机构认证，包括UL 508, CSA C22.2 no. C-UL。根据CSA C22.2 no. 142, I类，2分区，A, B, C, D组(UL 1604, C-UL)。213)，以及所有适用指令的CE/RCM/EAC。对于1762-L40BWAR，传感器电源的COM也在内部连接到机箱接地。24伏直流传感器电源不应用于输出电路供电。

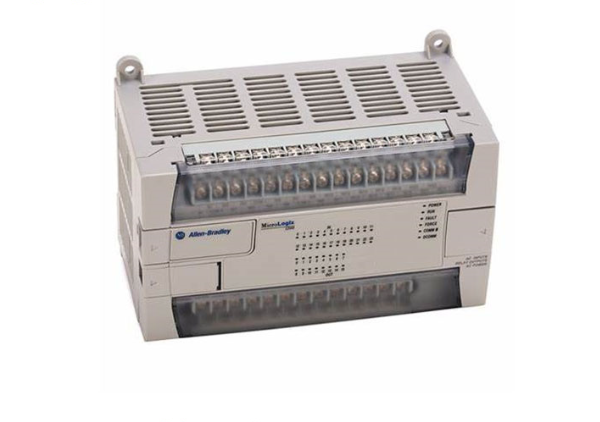

1762-L40BWAR 可编程逻辑控制器
【英文介绍】
The 1762-L40BWAR is an Allen-Bradley Programmable Logic controller (PLC). The controller is the MicroLogix 1200 controller, ideal for micro and small automation requirements.
The 1762-L40BWAR mainly has two (2) communication interfaces, located on the front panel and left side of the controller. Both communication ports are 8-pin mini din circular connectors. The front panel port is the primary port that can be used to communicate with programming workstations, human machine interface (HMI), and supervisory control and Data acquisition (SCADA) systems. Programming ports are used only for controller programming, online editing, and test functions. This port works simultaneously, helping to prevent the removal of the existing connection to the primary port when simultaneous controller communication needs to be established.
The 1762-L40BWAR's embedded I/O channel includes twenty (20) standard 24VDC inputs, four (4) fast 24VDC inputs, and sixteen (16) relay outputs. The input channel consists of twenty (20) standard inputs located in input channel 4 and higher, while the fast input is located in channel 0-3.
The 1762-L40BWAR is powered by an external voltage range of 100-240VAC and a frequency of 47-63 Hz. It is designed to withstand an impulse current rating of 25A for 8 ms at 120VAC and 4 ms at 240VAC. The power usage of the controller is 82 VA, and the power output is 600 mA at 5VDC and 500 mA at 24VDC. The controller is capable of delivering a maximum sensor power of 400 mA and 400 400µF at 24VDC.
Twenty of the inputs are 24 volts DC and the other four are 24 volts fast DC. 16 outputs are relay outputs. The module requires an AC voltage of 120 volts to 240 volts and a heat dissipation of 22w. There are two kinds of surges. That's 25 amps for 8 milliseconds at 120 volts and 40 amps for 4 milliseconds at 240 volts. The power usage of this module is 82va, and the input circuit type is 24v DC absorption or source power. The output circuit type of this module is relay type. The operating temperature of 1762-L40BWAR is 0 ~ 55 degrees Celsius. Please store this module at a temperature of -40 to 85 degrees Celsius. The 1762-L40BWAR has multiple agency certifications, including UL 508, CSA C22.2 no. C-UL. According to CSA C22.2 no. 142, Class I, Division 2, Groups A, B, C, D (UL 1604, C-UL). 213), and CE/RCM/EAC of all applicable directives. For the 1762-L40BWAR, the COM of the sensor power supply is also internally connected to the case ground. The 24 volt DC sensor power supply should not be used to power the output circuit.
