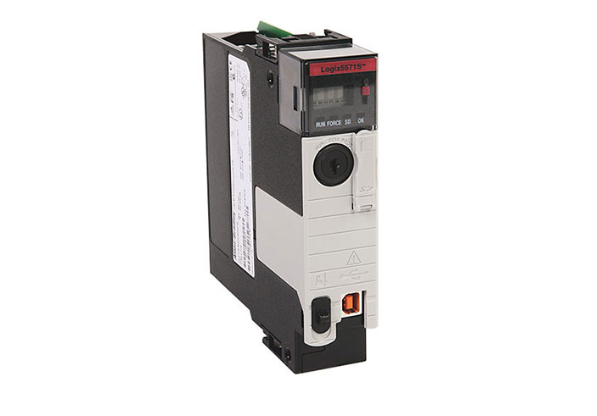

1756-L71S 可编程自动化控制器
【产品详情】
Allen-Bradley 1756-L71S 是一款 GuardLogix 5570 控制器，是 Logix5000 系列控制器的一部分。它是一个具有安全功能的ControlLogix控制器。它是一种双处理器解决方案，必须与 1756-L7SP 安全模块配合使用，以满足 SIL 3 或 Cat 的要求。4/PLe 安全标准。安全合作伙伴控制器是自动配置的，为单个项目提供了主要优势。它具有强大的处理能力和运动速度以及高性能逻辑。它有一个用于通信的USB端口，最多可以支持500个控制器连接。1756-L71S 控制器具有 2MB 用户内存、1MB 安全内存和 0.98MB I/O 内存。它可以支持 128,000 个数字 I/O 和 4000 个模拟 I/O。它在 5.1V DC 时吸收 2mA 电流，在 800.5V DC 时吸收 1mA 电流。其功耗为2.5W，热耗散为8.5 BTU/hr。它重 0.55 磅，具有 30V（连续）的隔离电压，用于基本绝缘。它可以安装在 ControlLogix 1756 机箱的任何插槽中。为了安全通信，它使用ControlNet，DeviceNet或EtherNet/IP网络。1756-L71S 控制器可以通过背板或通过 I/O 链路控制或监视 I/O。对于控制器诊断，它有一个提供运行时信息的前面板显示屏。它使用1756-ESMCAP和1756-ESMCAPK储能模块工作，这意味着不需要锂电池。1 GB （1784-SD1） 安全数字卡作为可选的非易失性存储预装，可扩展至 2 GB （1784-SD2）。
1756-L71S 主要具有 2 MB 标准用户内存、1 MB 安全内存、0.98 MB I/O 内存和 1 GB 非易失性内存，由控制器随附的预随附 1784-SD1 提供。与标准 ControlLogix 控制器类似，1756-L71S 具有 1 个 USB 通信端口，用于编程、硬件配置和在线编辑。该控制器能够处理多达 128,000 个离散 I/O 点和 4000 个模拟 I/O 点。
1756-L71S 同时执行标准和安全功能。标准功能包括 I/O 控制、逻辑、定时、计数、报告生成、通信、算术计算和数据文件操作。安全功能由主控制器传达给合作伙伴安全控制器。1756-L71S 不支持控制器冗余，并使用继电器梯形逻辑 （RLL）、结构化文本、功能块图、顺序功能图 （SFC） 等编程语言进行编程。对于安全任务的编程，只允许使用继电器梯形图。
1756-L71S 支持的安全通信选项包括以太网 I/P、ControlNet 和 DevideNet。如果与 1756-CN2/A 一起使用，则支持 100 个 ControlNet 连接，40 个使用 1756-CNB/D、1756-CNB/E 连接，128 个连接与 1756-CN2/B 连接。对于以太网，256 以太网/IP;允许使用 128-EN1756x 和 2 以太网/IP 进行 128 个 TCP 连接;64 TCP 与 1756-ENBT。

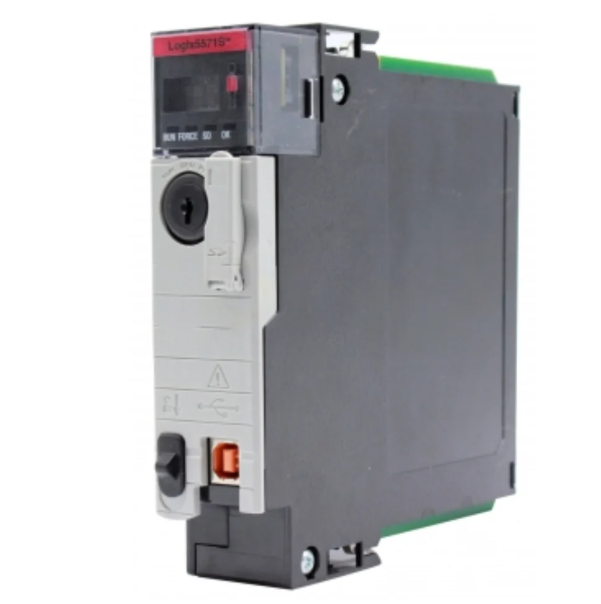

1756-L71S 可编程自动化控制器
【英文介绍】
The Allen-Bradley 1756-L71S is a GuardLogix 5570 controller that is part of the Logix5000 family of controllers. It is a ControlLogix controller with security features. It is a dual-processor solution that must be used in conjunction with the 1756-L7SP safety module to meet the requirements of SIL 3 or Cat. 4/PLe Safety standard. The security Partner controller is automatically configured, providing major advantages for individual projects. It has powerful processing power and motion speed as well as high-performance logic. It has a USB port for communication and can support up to 500 controller connections. The 1756-L71S controller has 2MB of user memory, 1MB of security memory, and 0.98MB of I/O memory. It can support 128,000 digital I/ OS and 4,000 analog I/ OS. It absorbs 2mA current at 5.1V DC and 1mA current at 800.5V DC. It has a power consumption of 2.5W and a thermal dissipation of 8.5 BTU/hr. It weighs 0.55 pounds and has an isolation voltage of 30V (continuous) for basic insulation. It can be installed in any slot in the ControlLogix 1756 chassis. For secure communication, it uses ControlNet, DeviceNet, or EtherNet/IP networks. The 1756-L71S controller can control or monitor I/O through the backplane or through the I/O link. For controller diagnostics, it has a front panel display that provides runtime information. It works with 1756-ESMCAP and 1756-ESMCAPK energy storage modules, which means there is no need for a lithium battery. The 1 GB (1784-SD1) secure digital card comes pre-loaded as optional non-volatile storage, expandable up to 2 GB (1784-SD2).
The 1756-L71S mainly has 2 MB of standard user memory, 1 MB of safe memory, 0.98 MB of I/O memory, and 1 GB of non-volatile memory, and is provided by the pre-shipped 1784-SD1 with the controller. Similar to the standard ControlLogix controller, the 1756-L71S has a USB communication port for programming, hardware configuration, and online editing. The controller is capable of handling up to 128,000 discrete I/O points and 4,000 analog I/O points.
The 1756-L71S performs both standard and safety functions. Standard features include I/O control, logic, timing, counting, report generation, communication, arithmetic calculations, and data file manipulation. Security functions are communicated from the master controller to the partner security controller. The 1756-L71S does not support controller redundancy and is programmed using relay ladder logic (RLL), structured text, function block diagram, Sequential Function diagram (SFC) and other programming languages. For programming safety tasks, only relay ladder diagrams are allowed.
Secure communication options supported by the 1756-L71S include Ethernet I/P, ControlNet, and DevideNet. If used with the 1756-CN2/A, 100 ControlNet connections are supported, 40 are 1756-CNB/D, 1756-CNB/E connections, and 128 are connected to the 1756-CN2/B connections. For Ethernet, 256 Ethernet /IP; Allows 128 TCP connections using 128-EN1756X and 2 Ethernet /IP; 64 TCP and 1756-ENBT.
