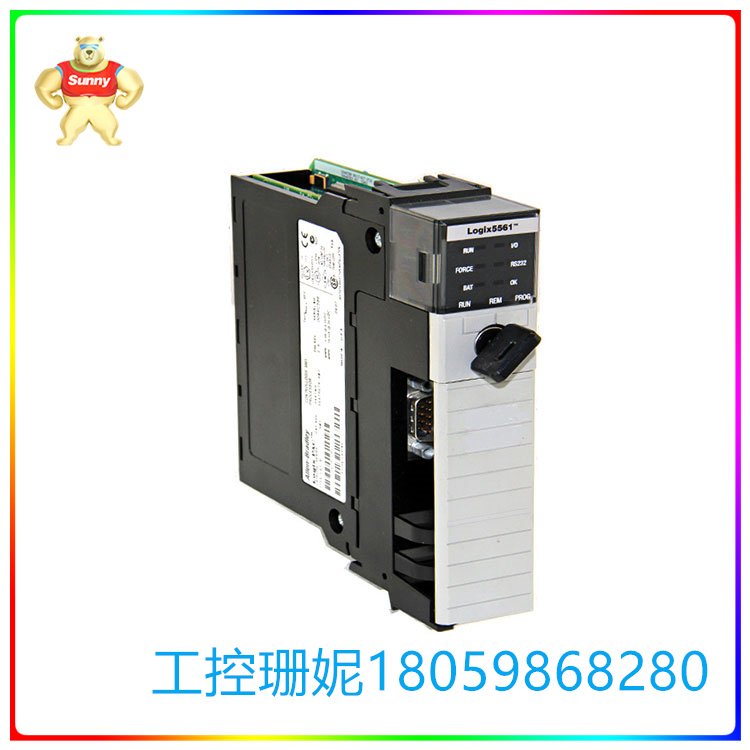

1756-L61 ControlLogix控制器
【产品详情】
Allen-Bradley 1756-L61是一款ControlLogix控制器。它具有 2 MB 用户内存和 478 kb I/O 内存，以及使用 128-CF1784 CompactFlash 存储卡的 128 MB 可选非易失性存储内存。它是一个基于机箱的控制器，可以放置在 1756 ControlLogix 机箱的任何可用插槽中。此控制器的兼容机箱为 1756-A4、1756-A7、1756-A10、1756-A13 和 1756-A17。它具有开放式外壳，最多可以支持 250 个控制器连接。它还具有内置的RS-232串行通信端口。RS232 端口支持的协议包括 DF1 全/半双工、ASCII、DF1 无线电调制解调器、通过逻辑的 Modbus 和 DH-485。
它的最大数字 I/O 为 128,000，最大模拟 I/O 为 4,000，最大总 I/O 为 128,000。1756-L61 的控制器任务包括 32 个任务、每个任务 100 个程序和事件任务：所有事件触发器。1756-L61 具有多种通信选项，例如 ControlNet、Data Highway Plus、EtherNet/IP、DeviceNet、SynchLink、Remote I/O 以及第三方进程和设备网络。1756-L61 控制器的电流消耗在 1200.5V DC 时为 1 mA，在 14V DC 时为 24 mA。功耗为 3.5 W，热耗散为 11.9 BTU/小时。它还具有 30V 的连续隔离电压，并已在 720V DC 下进行了 60 秒的测试。它的工作温度为0至60摄氏度，存储温度为-40至85摄氏度，周围最高空气温度为60摄氏度。相对湿度在 5% 至 95%（非冷凝）之间，在 2 至 10 Hz 时振动为 500 g，工作和非工作冲击分别为 30 g 和 50 g。
Allen-Bradley 1756-L61 是一款 ControlLogix 控制器，具有集成的 2MB 用户存储器，使控制器能够处理多达 128,000 个离散和 4000 个模拟 I/O。该控制器具有集成的RS232通信端口，可通过逻辑配置为ASCII，DF1全/半双工，DF1无线电调制解调器，DH-485和Modbus。
此控制器支持独立和分布式 I/O 应用程序的实现。虽然模块允许 250 个连接。根据所使用的通信模块，网络连接可能会有所不同。它还支持冗余，以提高关键系统中通常需要的系统可用性。
该控制器还具有通过嵌入式SERCOS接口的集成运动，模拟输入选项，如编码器输入，LDT输入和SSI输入。如果与以太网通信模块一起使用，该驱动器可以实现以太网I/P上的运动，
控制器支持的编程语言包括继电器梯形图、结构化文本、功能块图（FBD）和顺序功能图（SFC）。
要与模块通信，需要RS232通信电缆。此模块的适当通信是 1756-CP3 或 1747-CP3，直角连接器到控制器，直接连接到串行端口，3 米（9.84 英尺）。该模块使用电池将用户程序和数据保留在其内存中。对于 A 系列控制器，适当的电池为 1756-BA1、1756-BATM、1756-BATA，而 B 系列控制器的电池为 1756-BA2。
该控制器非常适合在指定的 I/O 容量内用于大多数中等规模的过程。为了提高模块的性能，可以安装其他模块，例如通信模块，专用和智能模块，并包含合作伙伴模块

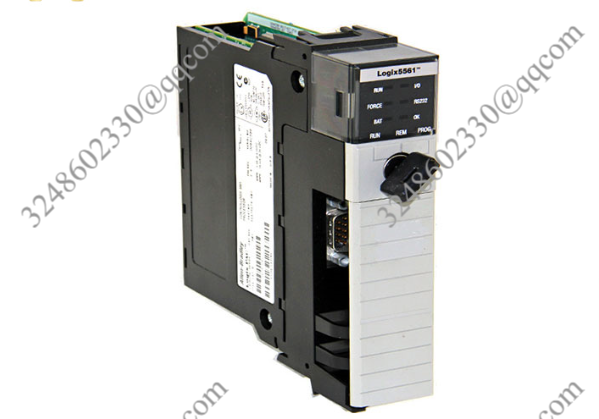

1756-L61 ControlLogix控制器
【英文介绍】
The Allen-Bradley 1756-L61 is a ControlLogix controller. It has 2 MB of user memory and 478 kb of I/O memory, as well as 128 MB of optional non-volatile storage memory using a 128-CF1784 CompactFlash memory card. It is a chassis based controller that can be placed in any available slot in the 1756 ControlLogix chassis. Compatible enclosures for this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It has an open housing and can support up to 250 controller connections. It also has a built-in RS-232 serial communication port. Protocols supported by the RS232 port include DF1 full/half duplex, ASCII, DF1 radio modems, Modbus via logic, and DH-485.
It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. The controller tasks of the 1756-L61 consist of 32 tasks, 100 programs per task, and event tasks: all event triggers. The 1756-L61 has a variety of communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, Remote I/O, and third-party processes and device networks. The current consumption of the 1756-L61 controller is 1 mA at 1200.5V DC and 24 mA at 14V DC. The power consumption is 3.5W and the heat dissipation is 11.9 BTU/ hour. It also has a continuous isolation voltage of 30V and has been tested for 60 seconds at 720V DC. It has an operating temperature of 0 to 60 degrees Celsius, a storage temperature of -40 to 85 degrees Celsius, and a maximum ambient air temperature of 60 degrees Celsius. The relative humidity is between 5% and 95% (non-condensing), the vibration is 500 g at 2 to 10 Hz, and the working and non-working shocks are 30 g and 50 g respectively.
The Allen-Bradley 1756-L61 is a ControlLogix controller with an integrated 2MB of user memory that enables the controller to handle up to 128,000 discrete and 4,000 analog I/ OS. The controller has an integrated RS232 communication port and can be logically configured to ASCII, DF1 full/half duplex, DF1 radio modem, DH-485 and Modbus.
This controller supports the implementation of independent and distributed I/O applications. Although the module allows 250 connections. Depending on the communication module used, the network connection may vary. It also supports redundancy to improve system availability, which is often required in critical systems.
The controller also features integrated motion, analog input options such as encoder input, LDT input, and SSI input via embedded SERCOS interface. If used with an Ethernet communication module, the driver can achieve motion on Ethernet I/P,
Programming languages supported by the controller include relay ladder diagram, structured text, function block diagram (FBD), and Sequential Function diagram (SFC).
To communicate with the module, an RS232 communication cable is required. Appropriate communication for this module is 1756-CP3 or 1747-CP3, right Angle connector to controller, direct connection to serial port, 3 m (9.84 ft). The module uses batteries to keep user programs and data in its memory. For A series controllers, the appropriate batteries are 1756-BA1, 1756-BATM, 1756-BATA, while for B series controllers the batteries are 1756-BA2.
The controller is well suited for most medium-sized processes within a specified I/O capacity. In order to improve the performance of the module, other modules can be installed, such as communication modules, dedicated and intelligent modules, and include partner modules
