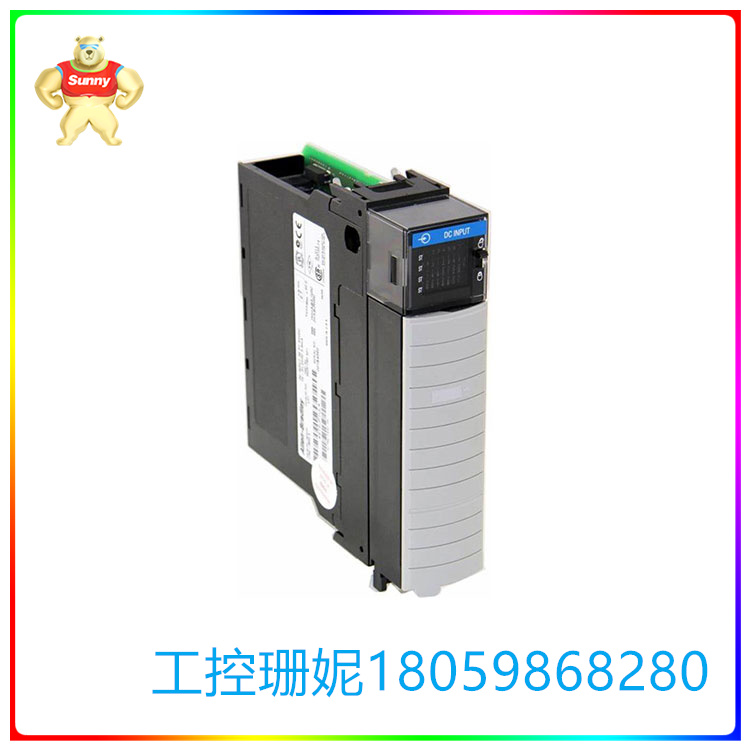

1756-IB32 ControlLogix 数字 I/O 模块
【产品详情】
Allen-Bradley 1756-IB32 是 ControlLogix 数字 I/O 模块。作为 ControlLogix 系统的一部分，该输入模块有 32 个输入，分为 2 组，每组 16 个点。它通过使用所需的可拆卸接线端子外壳或 RTB（例如 Allen-Bradley 1756-TBCH 或 1756-TBS6H）安装到 ControlLogix 机箱上。此模块占用 ControlLogix 机箱的单个插槽，并提供开放式机箱类型。1756-IB32 模块的工作电压范围为 10 至 31.2 伏直流，标称输入电压为 24 伏直流。它的电压类别为 12/24 伏直流灌电流，120.5 伏时电流消耗为 1 mA，2 伏时电流消耗为 24 mA，背板总额定功率为 0.66 W。6摄氏度时的最大功耗为2.60 W，而热耗散为21.1 BTU/小时，同样在60摄氏度时。
Allen-Bradley 1756-IB32 ControlLogix 数字 I/O 模块的最大浪涌电流额定值也为 250 mA，在不激活的情况下，在 37 毫秒内衰减到 22% 以下。在关断状态下，其最大电流为 2.27 mA，最大电压为 5 伏。关对开和开对关过程的输入延迟时间不同。对于关到开启过程，硬件延迟高达 380 微秒，用户可配置的过滤时间为 0、1 或 2 毫秒。开关延迟时间包括高达 420 微秒的硬件延迟时间以及用户可配置的 0、1、2、9 或 18 毫秒滤波时间。
Allen-Bradley 1756-IB32 是一款高密度离散输入模块，属于可编程自动化控制器 （PAC） 的 ControlLogix 产品系列。该模块具有三十二 （32） 个输入通道，分为两 （2） 个，每组十六 （16） 个通道。
它可以安装到本地 I/O 机架或分布式 I/O 机箱中，也可以安装在独立或分布式控制系统 （DCS） 中，例如 Allen-Bradley 的 Plant PAx。一个 此模块是通过硬件配置输入的，模块的参数是可访问的，例如模块的一般属性以及兼容键控和插槽分配的重要参数。该模块还具有可配置的请求数据包间隔 （RPI）、模块抑制、对通信故障的反应和通过 ControlNet 的预定连接。该模块的每个通道都有可配置的滤波器设置，以允许微调模块对信号的反应时间。这种调整在离散信号不稳定且暴露在噪声中的应用中非常有用。此功能有助于防止误报阴性读数。
该模块还具有通过模块信息进行自我诊断的功能，可以监控模块的诊断状态，例如次要和主要故障。它还可以检测模块连接的ControlLogix背板的状态。
此模块随附一个可拆卸接线端子 （RTB）。该RTB可以模块化更换有缺陷的模块，并易于接线信号。此模块的兼容 RTB 为 1756-TBCH 1756-TBS6H 或 36 端子 RTB。
1756-IB32 ControlLogix 数字 I/O 模块
【英文介绍】
Allen-Bradley 1756-IB32 is a ControlLogix digital I/O module. As part of the ControlLogix system, this input module has 32 inputs divided into 2 groups of 16 points each. It is mounted to the ControlLogix case by using the required detachable terminal housing or RTB (e.g. Allen-Bradley 1756-TBCH or 1756-TBS6H). This module occupies a single slot in the ControlLogix chassis and is available in an open chassis type. The 1756-IB32 module operates in a voltage range of 10 to 31.2 volts DC with a nominal input voltage of 24 volts DC. Its voltage class is 12/24 volts DC perfusion current, 120.5 volts current consumption is 1 mA, 2 volts current consumption is 24 mA, and the total fixed power of the backplane is 0.66 W. The maximum power consumption at 6 degrees Celsius is 2.60 W, while the heat dissipation is 21.1 BTU/ hour, also at 60 degrees Celsius.
The Allen-Bradley 1756-IB32 ControlLogix digital I/O module also has a maximum surge current rating of 250 mA, decaying to less than 22% in 37 milliseconds without activation. In the off state, it has a maximum current of 2.27 mA and a maximum voltage of 5 volts. The input delay time is different between the on-off process and the on-off process. For the off to on process, hardware latency is up to 380 microseconds, and user-configurable filtering times are 0, 1, or 2 milliseconds. Switching latency includes hardware latency of up to 420 microseconds and user-configurable filtering times of 0, 1, 2, 9 or 18 milliseconds.
The Allen-Bradley 1756-IB32 is a high-density discrete input module that belongs to the ControlLogix family of Programmable Automation Controllers (PACs). The module has thirty-two (32) input channels, divided into two (2) groups of sixteen (16) channels.
It can be installed in a local I/O rack or distributed I/O chassis, or in a stand-alone or distributed control system (DCS), such as Allen-Bradley's Plant PAx. This module is entered through hardware configuration, and the parameters of the module are accessible, such as the general properties of the module and important parameters for compatibility with keying and slot allocation. The module also has configurable Request packet Interval (RPI), module suppression, response to communication failures, and scheduled connections through ControlNet. Each channel of the module has configurable filter Settings to allow fine-tuning of the module's response time to the signal. This adjustment is useful in applications where discrete signals are unstable and exposed to noise. This feature helps prevent false negative readings.
The module also has the function of self-diagnosis through module information, which can monitor the diagnostic status of the module, such as minor and major faults. It can also detect the status of the ControlLogix backplane to which the module is attached.
This module comes with a detachable terminal (RTB). The RTB allows for modular replacement of defective modules and easy wiring of signals. Compatible RTB for this module is 1756-TBCH 1756-TBS6H or 36 terminal RTB.
