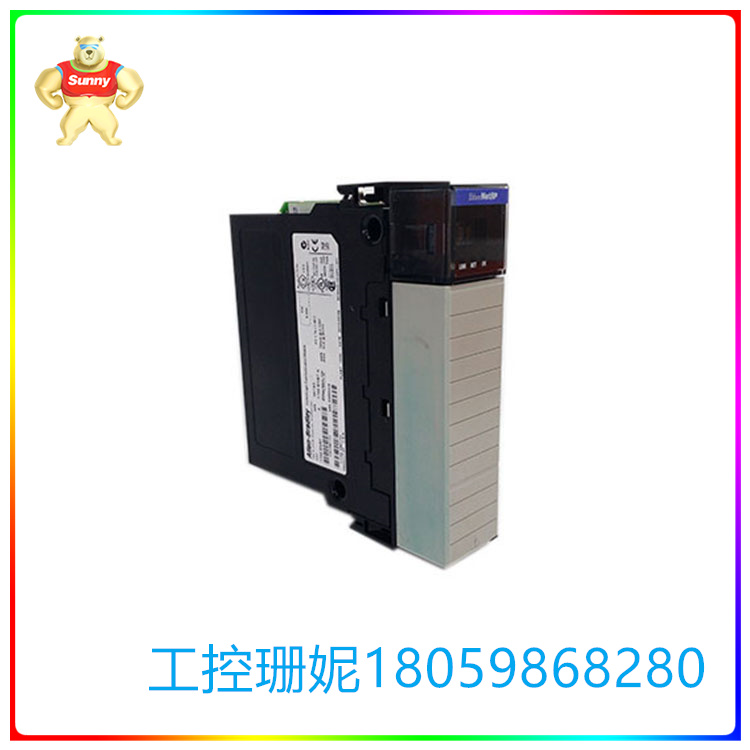

1756-ENBT 以太网/IP 桥接模块
【产品详情】
Allen-Bradley 1756-ENBT ControlLogix 以太网/IP 桥接模块是一种铜质通信模块，用于使用以太网连接传输大量数据。该模块可以处理 64 个 TCP 和 128 个 CIP 连接，通信速率为 10 / 100 Mbps。该模块支持高速处理器联锁，控制分布式 I/O，并使用以太网/IP 网络作为主干路由到不同 NetLinx 网络上的设备。这些功能允许用户在一个以太网/IP 网络中控制、配置和收集数据。反过来，这允许用户削减维护和支持成本，然后简化他们的网络架构，因为运行他们的应用程序可能需要更少的网络。
1756-ENBT支持网络。通过标准Web浏览器进行模块的设置和内部诊断，例如IP流量，TCP，UDP，冲突直方图，连接管理等。用户还可以获取有关模块版本、IP、子网、网关和以太网地址、模块正常运行时间、供应商、代码信息、诊断信息、名称服务器、启动状态、1756-L1 处理器模式信息和网络风暴信息的信息。1756-ENBT 模块在 5.1 伏直流时的电流消耗为 700 毫安。另一方面，对于 3 伏直流电，它的电流消耗为 24 毫安。1756-ENBT 的功耗为 3.7 瓦，热耗散为 12.6 BTU/小时。当放置在远程 I/O 机箱中时，它还可以充当远程 I/O 适配器。这允许用户收集和配置数据，以及远程控制 ControlLogix 模块，特别是输入、输出、模拟或专用模块。请注意，1756-ENBT 没有旋转开关。1756-ENBT也是向后兼容的。
1756-ENBtT 支持以太网 I/P 协议。它能够连接到具有自动协商功能的 10/100 Mbps 通信网络。它有一个 RJ45 通信端口和一个 USB 1.1 配置端口。
该模块是用于 ControlLogix 自动化平台的早期以太网模块之一。它的最大 TCP 连接数为 64 和 128 个通用工业协议 （CIP） 连接。这允许与不同的设备同时通信，而无需多路复用器设备。使用此设备最多可以处理 5000 个 I/O 数据包/秒，每秒可以处理 900 个 HMI/MSG 数据包。该模块在机箱中占据单个插槽，也可用于独立应用。该器件只能实现线性拓扑，因为它嵌入了单个以太网通信端口。
1756-ENBT 以太网/IP 桥接模块
【英文介绍】
The Allen-Bradley 1756-ENBT ControlLogix Ethernet /IP Bridge module is a copper communication module designed to transmit large amounts of data using an Ethernet connection. The module can handle 64 TCP and 128 CIP connections at a communication rate of 10/100 Mbps. The module supports high-speed processor interlocking, controls distributed I/O, and uses Ethernet /IP networks as backbone routing to devices on different NetLinx networks. These features allow users to control, configure, and collect data within an Ethernet /IP network. This, in turn, allows users to cut maintenance and support costs and then simplify their network architecture, as less network may be required to run their applications.
1756-ENBT Support Network. Setup and internal diagnostics of modules such as IP traffic, TCP, UDP, conflict histograms, connection management, etc. via standard Web browsers. Users can also obtain information about module version, IP, subnet, gateway and Ethernet addresses, module uptime, vendor, code information, diagnostic information, name server, startup status, 1756-L1 processor mode information, and network storm information. The 1756-ENBT module has a current consumption of 700 mA at 5.1 volts DC. On the other hand, for 3 volts of DC, its current consumption is 24 mA. The 1756-ENBT has a power consumption of 3.7 watts and a heat dissipation of 12.6 BTU/ hour. When placed in a remote I/O case, it can also act as a remote I/O adapter. This allows users to collect and configure data, as well as remotely control ControlLogix modules, especially input, output, analog, or dedicated modules. Please note that 1756-ENBT does not have a rotary switch. 1756-ENBT is also backward compatible.
1756-ENBtT Supports Ethernet I/P protocols. It is capable of connecting to 10/100 Mbps communication networks with auto-negotiation. It has an RJ45 communications port and a USB 1.1 configuration port.
This module is one of the early Ethernet modules for the ControlLogix automation platform. Its maximum number of TCP connections is 64 and 128 Common Industry Protocol (CIP) connections. This allows simultaneous communication with different devices without the need for a multiplexer device. With this device, you can process up to 5000 I/O packets per second and 900 HMI/MSG packets per second. The module occupies a single slot in the chassis and can also be used for standalone applications. The device can only achieve a linear topology because it is embedded with a single Ethernet communication port.
1756-ENBT 以太网/IP 桥接模块
【其他型号推荐】
| A-B | 1756-IB32 | A-B | 20-HIM-A6 | A-B | 1794-IB16 |
| A-B | 1756-IB32 | A-B | 2098-DSD-020X | A-B | 1794-ASB |
| A-B | 1769-L30ER | A-B | 1769-L33ER | A-B | 1747-L541 |
| A-B | 1762-L24BWA | A-B | 1794-AENT | A-B | 22B-D010N104 |
| A-B | 1756-OF8 | A-B | 1794-IE12 | A-B | 1756-PA72电源模块 |
| A-B | 2080-LC50-24QBB | A-B | 1794-OE12 | A-B | 1756-OF8模拟量模块 |
| A-B | 1769-L33ER | A-B | 1794-OB32P | A-B | 1756-IF16模拟量模块 |
| A-B | 1756-RM2 | A-B | 1794-IB32 | A-B | 1756-IB16数字量模块 |
| A-B | 1756-EN2TR | A-B | 1769-ECR . | A-B | 1756-EN2T通讯模块 |
| A-B | 1756-IB32 | A-B | 1769-L36ERMA | A-B | 1756-A7机架 |
| A-B | 1756-OB32 | A-B | 1756-IF16 | A-B | 1786-RPA/B |
| A-B | 1756-IF16 | A-B | 1756-IB32 | A-B | 1756-RM2 |
