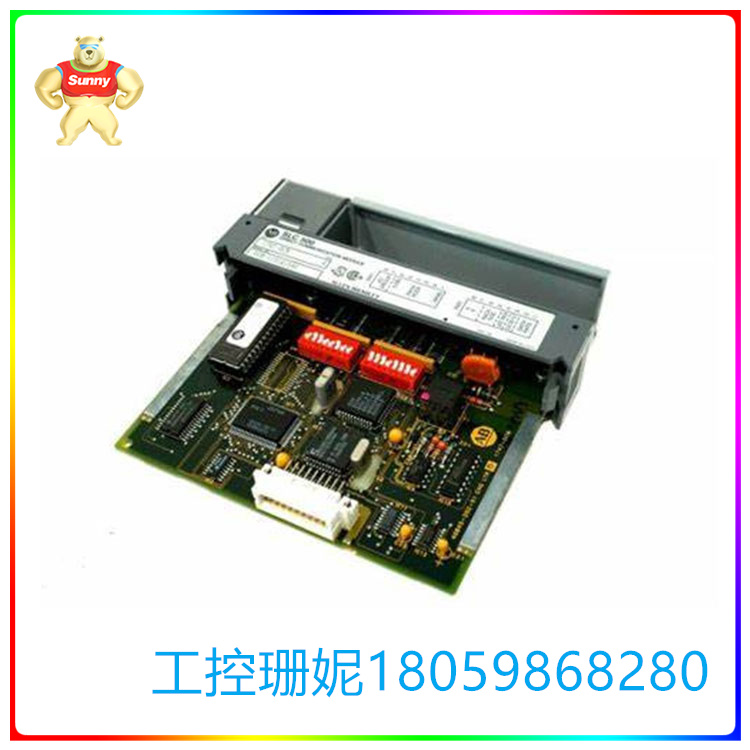

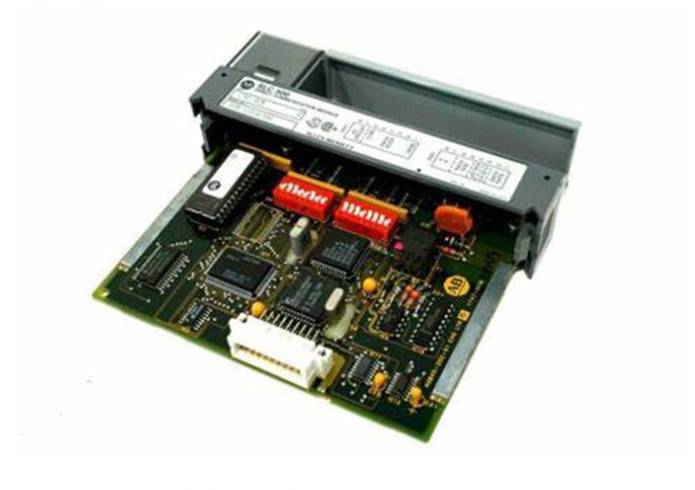

1747-SDN DeviceNet通信扫描仪
【产品详情】
Allen-Bradley 1747-SDN是一款DeviceNet通信扫描仪。此扫描程序模块用于通过 DeviceNet 网络或通过 DeviceNet 适配器模块与支持 DeviceNet 的设备进行通信。该模块可以在从模式下运行;在轮询、选通、状态更改和循环 I/O 配置中发送和接收消息。它还支持直通配置，其中1747-SDN充当网桥并连接单独的DeviceNet网络。此直通功能旨在替换网络上的 1770-KFD、1784-PCD、1784-PCID 或 1784-PCIDS DeviceNet 连接。
具体来说，在实现直通配置时，兼容的 SLC 500 处理器为 SLC 5/03、SLC 5/04 和 SLC 5/05。
1747-SDN 支持以 63 Kbps 的波特率配置多达 125 个节点。它吸收的背板电流为 5V DC、500 mA。
1747-SDN 的前面板安装了两 （2） 个 LED 状态指示灯，例如用于报告模块运行的模块指示灯和指示 DeviceNet 通信链路的网络状态 LED。它还具有LCD显示屏，可提供模块地址和错误指示。DeviceNet 端子安装在检修门后面，并配有插入 DeviceNet 端口的 10 针线性插头。
它是 SLC 处理器和 DeviceNet 设备之间的接口，它可以通过 M1/M0 文件传输和离散 I/O 与处理器通信。1747-SDN 与 SLC 500 处理器交换配置数据、设备 I/O 数据和状态信息。它在 500 伏直流时吸收 5mA 的背板电流，在 90 伏直流电时吸收 24mA 的背板电流，并使用在 30V AC 下测试的基本绝缘类型在 DeviceNet 到背板之间提供 500 伏电路隔离 60 秒。1747-SDN 在 0% 至 60% 的非冷凝湿度下具有 IEC 测试的工作温度范围，介于 32 至 140 摄氏度（5 至 95 华氏度）之间，并存储在 -40 至 85 摄氏度（-40-185 华氏度）的温度范围内。它还具有经过 IEC 测试的 2-10Hz 时 500G 的工作振动耐受性和 30G 的最大冲击额定值。它具有 CISPR 11，第 1 组，A 类排放等级，并被指定为 T5 北美温度代码。它采用开放式外壳，并通过了 c-UL-us 和 CE 认证。
1747-SDN DeviceNet通信扫描仪
【英文介绍】

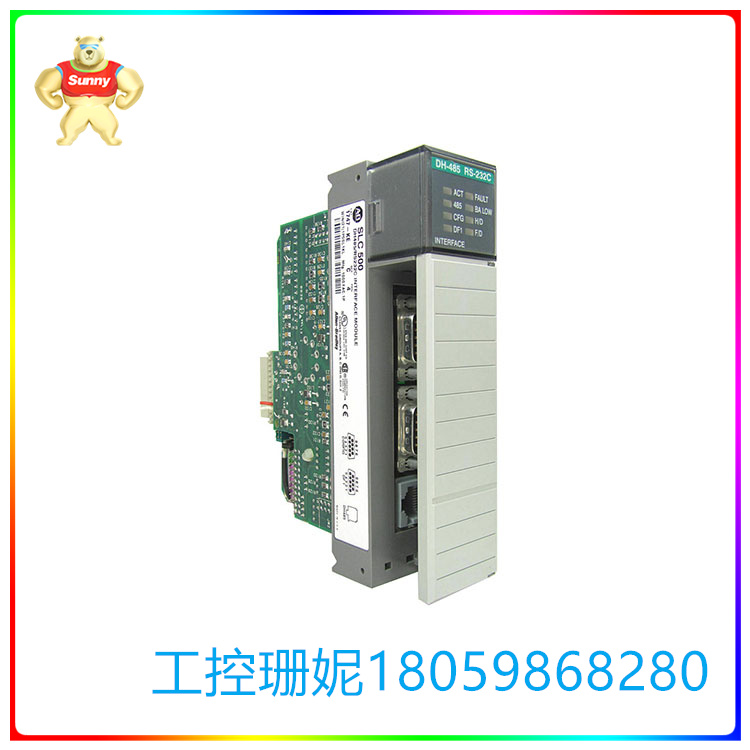

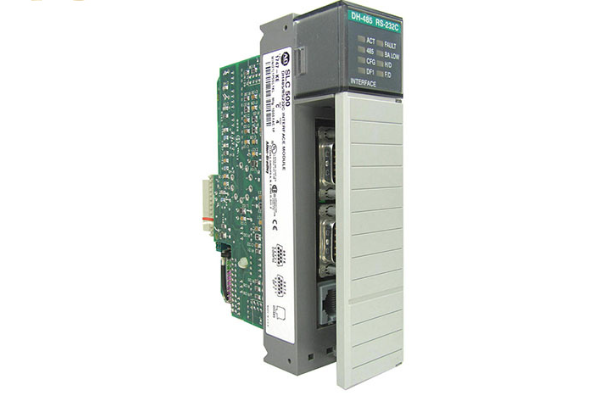

Allen-Bradley 1747-KE is a DH-485/RS-232C interface module that provides connectivity to DH-485 networks and DF1-enabled devices. The DF1 port on this module can be configured to function as an RS-232/422 device. It can also be configured as RS-422 and RS-485 devices. The Allen-Bradley 1747-KE has eight LED indicators. The indicator is located in front of the module. These indicators are used for module diagnostics and operator interfaces. This module can be connected to most types of dial-up networks or directly to a modem. The Allen-Bradley 1747-KE has an operating shock of 5 G and a vibration of 57.2000 G at 30-2 Hz. The module has a relative humidity of 5-95% and no condensation. The module operates at 0-60°C (32-140°F). The module has a storage temperature of -40-85° C (-40-185° F). The types of compatible modems include manual modems, DTE control answer, automatic answer, and Direct connection. The 1747-KE module requires 5V DC and 24V DC power supplies from the SLC backplane. Module power consumption should be considered when designing the SLC 500 system. Do not install or remove the 10-KE module from the chassis until all power is turned off (after approximately 1747 seconds).
Allen-Bradley 1747-KE is an interface module. The module is part of the SLC 500 product family and is primarily used for DH-485 and DF1 connectivity via an embedded communication interface. It has one (1) 1-pin Sub-D connector supporting the DF9 protocol and one (1) RJ-485 port supporting the DH-45 protocol. It also has one (1) 9-pin Sub-D connector used as a configuration port for the module.
The 1747-KE is a single-slot module installed in the 1747 chassis. It has separate port isolation, such as 500 volts direct current between the backplane and the CONFIG port; There is 1 volt DC between the backplane and the DF500 port, and 1 volt DC between the CONFIG and DF500 port. Only DH-485 ports are not isolated. It has c-UL-us, CE and C-Tick certifications. It is approved for use in application areas identified as Class 1 A, B, C or D Group 2 partitions.
The 1747-KE can be configured as RS-232 / RS-423 / RS-422 and RS-485. Data transfer rates vary depending on the length of the communication. Supports port data transfer rates of 300-19200 Kbps, while the RS-15 supports a maximum cable distance range of 232 meters; RS-60 is 1230-423 meters; RS-1230 and RS-422 are 485 meters. The general rule applies that as the cable length increases, the baud rate or transmission rate decreases.
The 1747-KE has an embedded LED indicator that describes the operating status of the module. It has ACT, 485, CFG, DF1, Fault, BA low, H/D and F/D indicators. It also has an embedded jumper along the internal circuit to set up the communication interface of the CONFIG port (JW1); DF1 port (JW2) and interface function and mode (JW4).
1747-SDN DeviceNet通信扫描仪
【其他型号推荐】
| A-B | 1756-IB32 | A-B | 20-HIM-A6 | A-B | 1794-IB16 |
| A-B | 1756-IB32 | A-B | 2098-DSD-020X | A-B | 1794-ASB |
| A-B | 1769-L30ER | A-B | 1769-L33ER | A-B | 1747-L541 |
| A-B | 1762-L24BWA | A-B | 1794-AENT | A-B | 22B-D010N104 |
| A-B | 1756-OF8 | A-B | 1794-IE12 | A-B | 1756-PA72电源模块 |
| A-B | 2080-LC50-24QBB | A-B | 1794-OE12 | A-B | 1756-OF8模拟量模块 |
| A-B | 1769-L33ER | A-B | 1794-OB32P | A-B | 1756-IF16模拟量模块 |
| A-B | 1756-RM2 | A-B | 1794-IB32 | A-B | 1756-IB16数字量模块 |
| A-B | 1756-EN2TR | A-B | 1769-ECR . | A-B | 1756-EN2T通讯模块 |
| A-B | 1756-IB32 | A-B | 1769-L36ERMA | A-B | 1756-A7机架 |
| A-B | 1756-OB32 | A-B | 1756-IF16 | A-B | 1786-RPA/B |
| A-B | 1756-IF16 | A-B | 1756-IB32 | A-B | 1756-RM2 |
【常见问题】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！
问：您的交货时间如何？
答：我们有很多库存商品，3-5天您将收到它。
问：你们提供保修吗？
答：是的，我们为所有剩余的部件提供1年保修。
问：您可以接受哪些付款方式？
答：通常我们在中国大陆接受T/T和人民币转账
