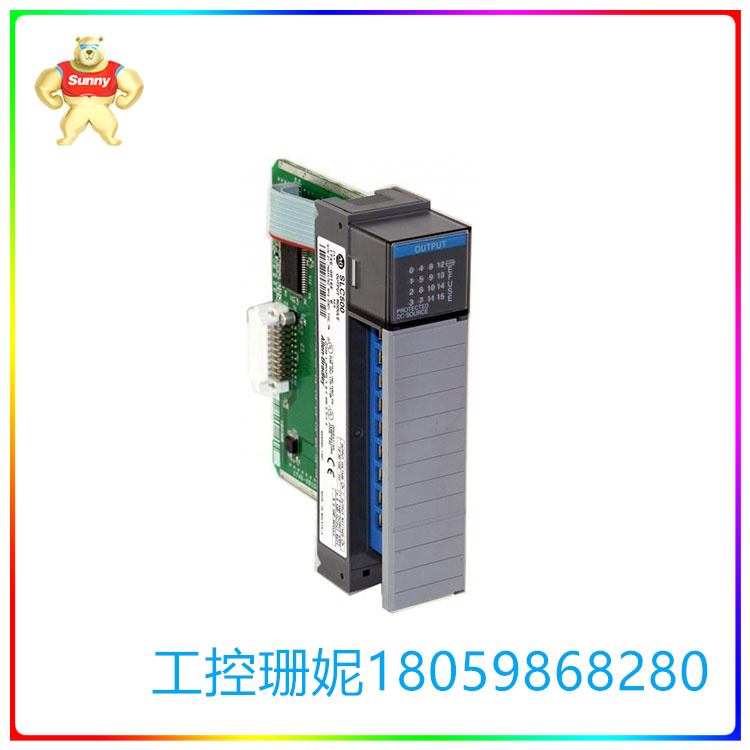

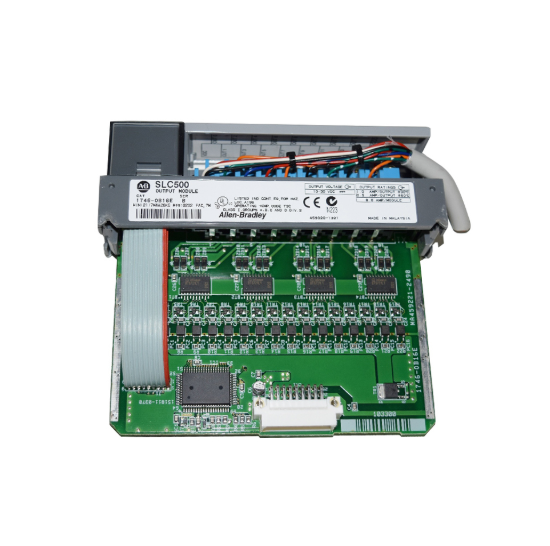

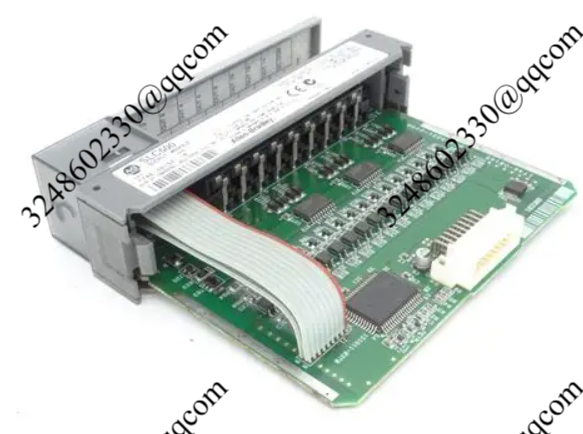

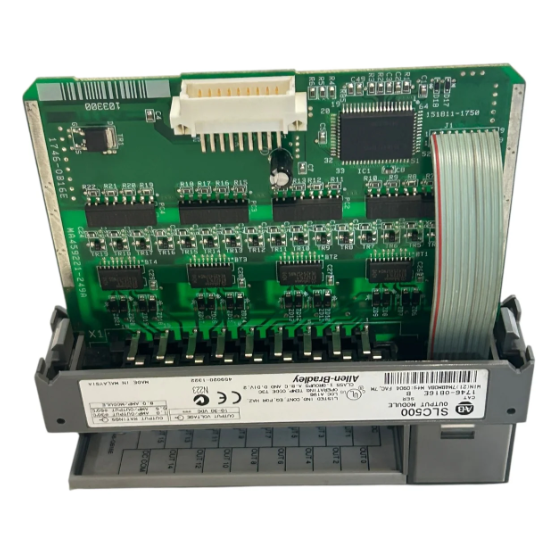

1746-OB16E 数字直流输出模块
【产品详情】
1746- ob16e SLC 500数字输出模块是艾伦-布拉德利的电子熔接24V直流信号输出模块,可以固定在1746底盘的任何可用插槽上,它使用可移动终端块(RTB)。它的工作电压范围在10到30V DC(源)之间,并在5V DC时绘制0.135A的背板电流。1746-OB16E在ON和OFF模式下都有负载相关的1ms信号延迟时间,并且在OFF状态下最大输出漏电流为1mA。每个点上可用的最小电流负载为1mA,在30°C(86°F)下,每个点上的涌流电流为2.0A,持续2ms,每15秒重复一次。1746-OB16E每个输出点的散热为0.388W,模块的总散热为7.6W。它的工作温度为0-60°C(32-140°F),相对湿度为5-95%,无冷凝水,它是NEMA ICS 2-230额定抗噪声。1746-OB16E在10-200Hz下的工作振动为2.5G,冲击等级为30G。
1746-OB16E 数字直流输出模块
【英文介绍】
The 1746-OB16E SLC 500 digital output module is an Allen Bradley electronically fused 24V DC signal output module that can be fixed to any available slot in the 1746 chassis, and it uses a removable terminal block (RTB). It operates in A voltage range between 10 and 30V DC(source) and draws a backplane current of 0.135A at 5V DC. The 1746-OB16E has a load-dependent 1ms signal delay time in both ON and OFF modes, and a maximum output leakage current of 1mA in OFF mode. The minimum current load available at each point is 1mA, and the inrush current at each point is 2.0A at 30°C(86°F) for 2ms, repeating every 15 seconds. The 1746-OB16E has a heat dissipation of 0.388W per output point, and the total heat dissipation of the module is 7.6W. It operates at 0-60°C(32-140°F), with a relative humidity of 5-95% and no condensation, and it is NEMA ICS 2-230 rated for noise resistance. The 1746-OB16E has an operating vibration of 2.5G and an impact rating of 30G at 10-200Hz.
1746-OB16E 数字直流输出模块
