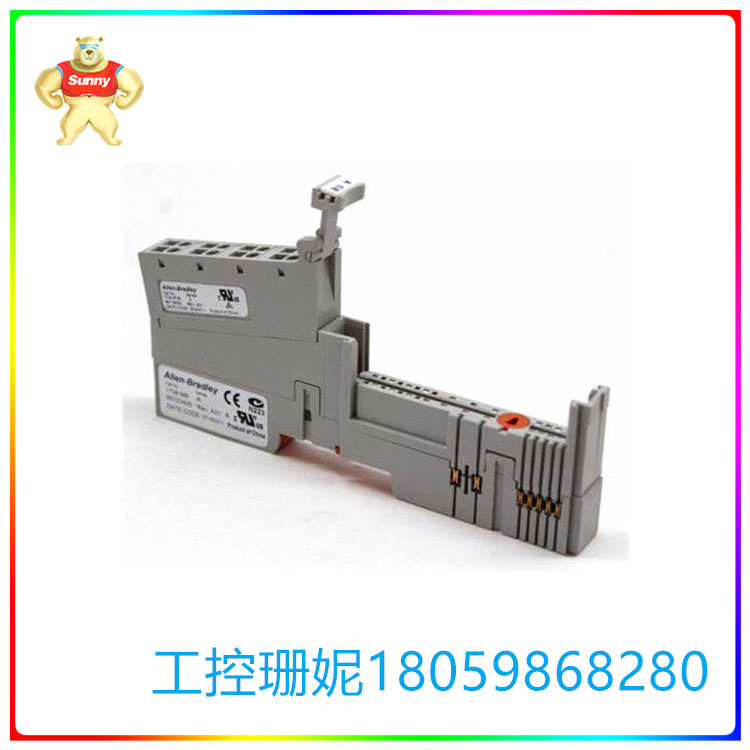

1734-RTB 可移动终端块
【产品详情】
1734-RTB是一种可移动终端块(RTB)，由艾伦·布拉德利制造。它属于1734系列，通常与点输入/输出安装底座一起使用。1734-RTB通常连接到安装底座上，以形成终端底座组件;它是一个开放式模块，它有8个极，以及120至240伏交流和24伏直流的平均现场供电电压范围。1734-RTB的最大现场供电电流为10a;它还具有用于连接目的的螺钉夹。对于该模块，端子底座螺丝扭矩约为0.6 N-m(7磅/英寸)，属于接线类别2。1734-RTB的线材尺寸范围为14 AWG(2.5平方毫米)至22 AWG(0.25平方毫米)，无论是实线还是绞合线，其额定温度必须至少为75摄氏度，但最好更高。1734-RTB具有3/64英寸(1.2毫米)的最大绝缘，并使用DIN导轨和安装底座安装。
当1734-RTB插入安装底座时，它提供了现场接线的终端位置。在安装1734-RTB端子之前，必须确保安装底座的键合正确。这种RTB单元是一种高效的设备，因为它可以加速安装，并促进模块整个系统的启动。如果没有1734-RTB模块，在安装过程中垂直访问电线和螺钉的终端将非常困难;1734-RTB模块为用户提供这种访问。也可以安装在安装座安装完成之前或之后。1734-RTB有许多状态指示灯，显示网络状态、模块状态和每个输出的状态。
1734-RTB 可移动终端块
【英文介绍】
The 1734-RTB is a removable terminal block (RTB) made by Alan Bradley. It belongs to the 1734 series and is commonly used with point input/output mounting mounts. The 1734-RTB is usually attached to the mounting base to form the terminal base assembly; It is an open module, it has 8 poles, and an average field supply voltage range of 120 to 240 volts AC and 24 volts DC. The 1734-RTB has a maximum field supply current of 10a; It also has a screw clamp for connection purposes. For this module, the terminal base screw torque is approximately 0.6N-m (7 lb/in), which belongs to wiring category 2. Wire sizes for the 1734-RTB range from 14 AWG(2.5 sq mm) to 22 AWG(0.25 sq mm), whether solid or stranded, and must be rated at least 75 degrees Celsius, but preferably higher. The 1734-RTB has a 3/64 inch (1.2 mm) maximum insulation and is mounted using DIN rail and mounting base.

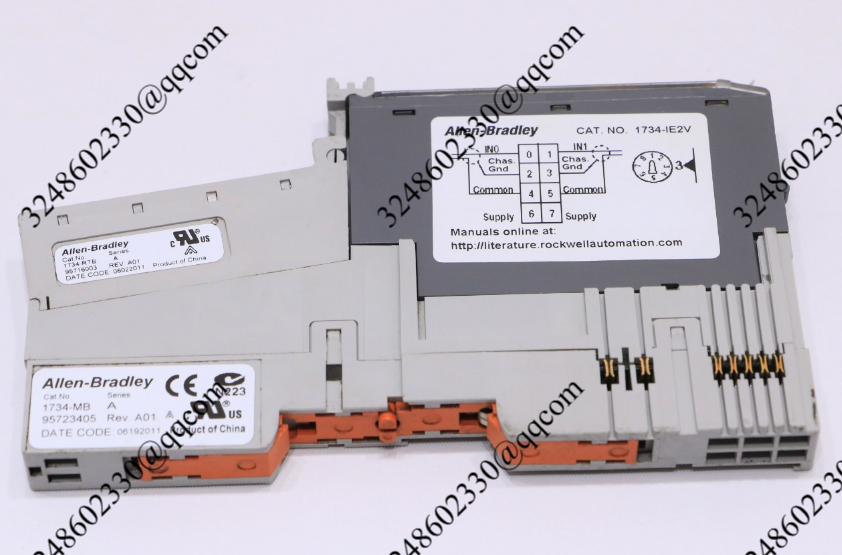

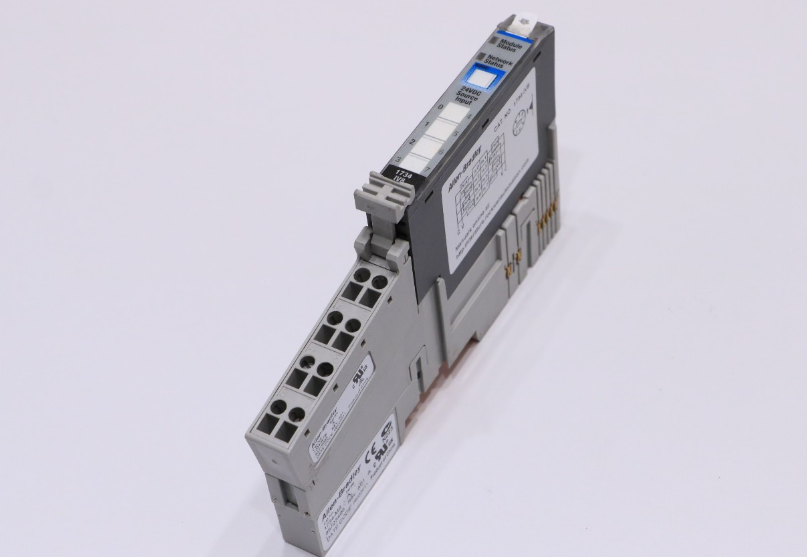

When the 1734-RTB is plugged into the mounting base, it provides the terminal location for field wiring. Before installing the 1734-RTB terminal, ensure that the mounting base is properly bonded. This RTB unit is an efficient device because it speeds up installation and facilitates the startup of the entire system of the module. Without the 1734-RTB module, vertical access to the terminals of wires and screws during installation would be very difficult; The 1734-RTB module provides users with this access. It can also be installed before or after the mounting base is installed. The 1734-RTB has a number of status indicators that show the status of the network, the status of the module, and the status of each output.
1734-RTB 可移动终端块
