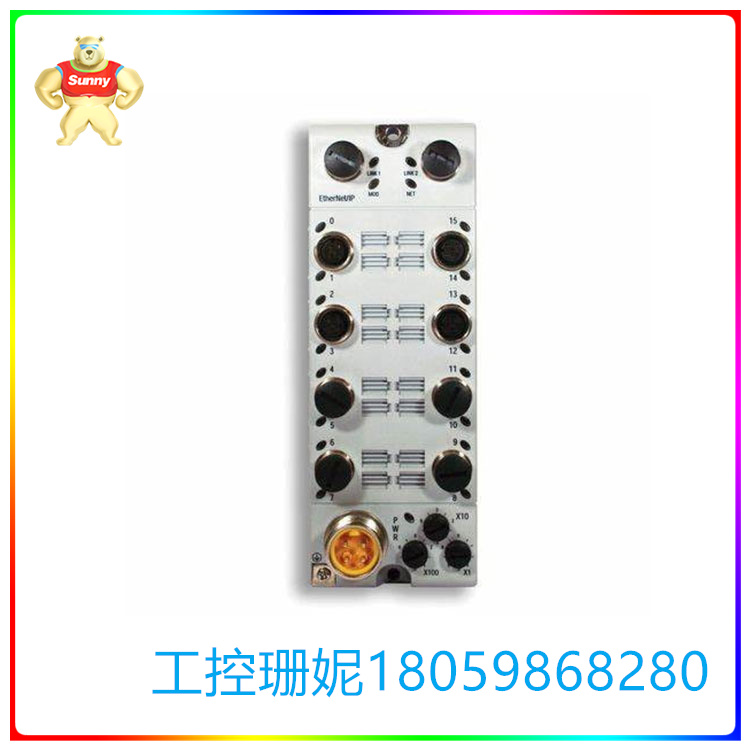

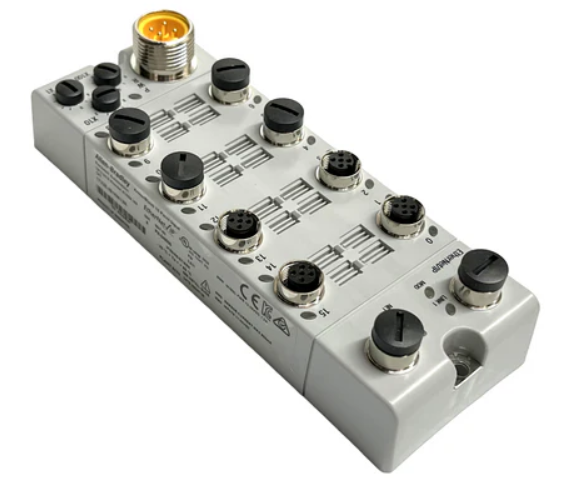

1732E-OB16M12DR 具有16个输出和24伏源输出类型
【产品详情】
Allen-Bradley 1732E-OB16M12DR 2端口以太网/IP模块具有16个输出和24伏源输出类型。该模块的最大导通输出电压降额定值为0.5伏，最小非峰值阻断电压额定值为30伏。最大导通输出电压为30v，最大传感器源电压为30v。该模块的最大导通输出电流为2安培，每个模块的最大输出电流为8安培。它获得了DC-14的飞行员任务等级。Allen-Bradley在1732E-OB16M12DR模块上的一些通用规格包括30伏的最大辅助电源额定电压和12伏的最小额定电压。每个输入的最大传感器源电流为50毫安。armblock 1732E-OB16M12DR模块的一个特性是LED指示灯，允许最终用户判断模块的状态，模块状态指示灯为红/绿色，网络状态指示灯为红/绿色，链路状态指示灯为绿色，辅助电源指示灯为绿色，I/O指示灯为黄色。
该模块的环境规格包括工作温度范围为-4至140华氏度，存储温度范围为-40至185华氏度。周围最高温度不应超过140华氏度。本模块的相对湿度应控制在5% ~ 95%(无冷凝)之间。1732E-OB16M12DR模块的更多环境规格包括1组a级排放等级和10至500赫兹的5 g振动等级。该模块的尺寸为179 x 65 x 43.25毫米，或7.05 x 2.56 x 1.70英寸。它重约0.34公斤，或0.75磅。
1732E-OB16M12DR 具有16个输出和24伏源输出类型
【英文介绍】
The Allen-Bradley 1732E-OB16M12DR 2-port Ethernet /IP module has 16 outputs and 24 volt source output types. The module has a maximum on-output voltage drop rating of 0.5 volts and a minimum off-peak blocking voltage rating of 30 volts. The maximum on-output voltage is 30v and the maximum sensor source voltage is 30v. The maximum on-output current of the module is 2 amps, and the maximum output current of each module is 8 amps. It received the pilot mission rating of a DC-14. Some of Allen-Bradley's common specifications on the 1732E-OB16M12DR module include a maximum auxiliary power rating of 30 volts and a minimum rating of 12 volts. The maximum sensor source current per input is 50 MA. One of the features of the armblock 1732E-OB16M12DR module is the LED indicator that allows the end user to judge the status of the module, the module status indicator is red/green, the network status indicator is red/green, the link status indicator is green, the auxiliary power indicator is green, and the I/O indicator is yellow.
The module's environmental specifications include operating temperatures ranging from -4 to 140 degrees Fahrenheit and storage temperatures ranging from -40 to 185 degrees Fahrenheit. The maximum ambient temperature should not exceed 140 degrees Fahrenheit. The relative humidity of the module should be controlled between 5% and 95%(without condensation). Additional environmental specifications for the 1732E-OB16M12DR module include a set of Class A emission levels and 5 g vibration levels from 10 to 500 Hz. The module measures 179 x 65 x 43.25 mm, or 7.05 x 2.56 x 1.70 inches. It weighs about 0.34 kilograms, or 0.75 pounds.
