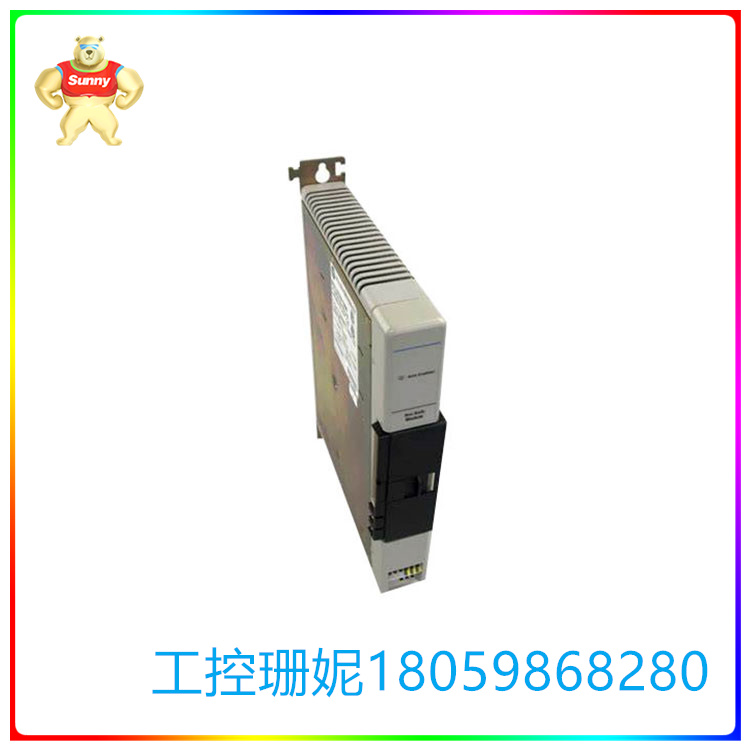

1394-AM04 伺服驱动轴模块
【产品详情】
Allen-Bradley 1394- am04是1394伺服驱动轴模块。它是1394 GMC或GMC涡轮增压系统的一部分。1394-AM04属于A系列和B系列，但它可以与1394C-AM04系列C轴模块互换。它是一个无散热器的逆变器，将系统模块提供的直流电源转换为1394系统中的可变交流电压。每个伺服电机都需要一个1394- am04轴模块来运行1394系统。它使用滑动锁定机制连接到系统模块，消除了多达100个接线端子。一个1394系统由1-4轴模块组成。1394-AM04模块的直流输入电压为530-680V，电流为4.5 - 9a。380 ~ 460 V时的功耗为2.4/3 ~ 4.8/ 6kw。1394-AM04的效率为98%，电容为110 µF，静态增益(RMS a /mV)为2.6。它的尺寸为13.78 x 11.02 x 1.97英寸，重11.02磅。它的调速范围为基本转速的0-0.05%，扭矩干扰为100%。1394-AM04轴模块用于所有需要多达四个高性能循环轴的新应用。它也是理想的应用需要频繁的电源监控或电源循环。一些1394-AM04的应用包括材料处理，高速包装，压力加载/卸载，和转换。
Allen-Bradley 1394- am04是Bulletin 1394系列多轴数字伺服驱动器的一个轴模块。该轴模块是一个系列a /B模块，工作在直流输入电压530伏DC/680伏DC，输入电流4.8安培。该驱动器的输出电压为310伏交流/390伏交流，三相连续输出电流为4.5安培，峰值电流为9安培，连续输出功率为2.4千瓦@ 310伏交流和3千瓦@ 390伏交流，频率输出为0-240千赫兹。
1394-AM04的调速范围为基本转速的0 ~ 0.05%，扭矩扰动为100%，静态增益为2.6 (rms A/mV)。调制频率为5 kHz±10%，漂移为0.03 rpm/摄氏度。该驱动器的效率为98%，电容为110µF。
该1394-AM04兼容使用各种伺服电机，如1326AB伺服电机，具体1326AB- b410g, 1326AB- b410j, 1326AB- b420e, 1326AB- b420h, 1326AB- b430e, 1326AB- b430g, 1326AB- b515e，和1326AB- b520e。它还兼容1326AS- b330h、1326AS- b420g、1326AS- b440g、1326AS- b460f等1326AS伺服电机。
为了避免1394运动控制系统的麻烦跳闸，1394- am04理想地与具有二次电路保护装置的1394x-SJT05-x系统模块配对，目录号1492-CB3-H300。1394-AM04也兼容1394x-SJT10-x和目录号1492-CB3-H500和1394x-SJT22-x和目录号1492-CB3-H600的保护装置。本轴模块必须安装在冲击不超过15g、振动不超过1g的环境中。

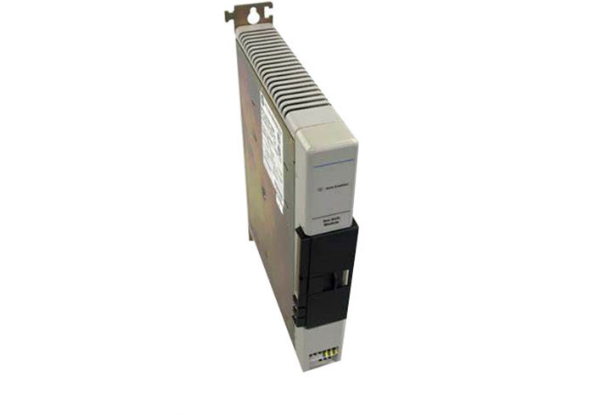

1394-AM04 伺服驱动轴模块
【英文介绍】
The Allen-Bradley 1394-AM04 is a 1394 Servo Drive Axis Module. It is part of the 1394 GMC or GMC Turbo system. The 1394-AM04 belongs to Series A and B but it is interchangeable with the 1394C-AM04 Series C axis module. It is an inverter with no heatsink that converts the DC power supplied by the system module to a variable AC voltage in a 1394 system. One 1394-AM04 axis module is required for every servo motor to run the 1394 system. It is connected to a system module using its slide-and-lock mechanism that eliminates up to 100 wire terminals. One 1394 system consists of 1-4 axis modules. The 1394-AM04 module has 530-680V DC input voltage and 4.5 - 9 A current. It has a power dissipation of 2.4/3 - 4.8/6 kW at 380-460 V. The 1394-AM04 also has 98% efficiency, a 110 µF capacitance, and a static gain (RMS A/mV) of 2.6. It has dimensions of 13.78 x 11.02 x 1.97 in and it weighs 11.02 lbs. It has a speed regulation of 0-0.05% of the base speed with a 100% torque disturbance. The 1394-AM04 axis module is used in all new applications that require up to four high-performance cycle axes. It is also ideal for applications requiring frequent power monitoring or power cycling. Some of the 1394-AM04’s applications include material handling, high-speed packaging, press load/unload, and converting.
The Allen-Bradley 1394-AM04 is an axis module from the Bulletin 1394 product family of multi-axis digital servo drives. This axis module is a series A/B module that operates at a DC input voltage of 530 Volts DC/680 Volts DC with an input current of 4.8 Amperes. This drive delivers an output voltage of 310 Volts AC/390 Volts AC, 3-phase with a continuous output current of 4.5 Amperes, peak current of 9 Amperes, and continuous output power of 2.4 Kilowatts @ 310 Volts AC and 3 Kilowatts @ 390 Volts AC along a frequency output of 0-240 Kilohertz.
The 1394-AM04’s speed regulation is 0 to 0.05% of base speed with 100% torque disturbance with static gain of 2.6 (rms A/mV). It has modulation frequency of 5 kHz ±10% with drift of 0.03 rpm/degree Celsius. This drive has 98% efficiency with a capacitance of 110 µF.
The 1394-AM04 is compatible for use with a variety of servo motors such as 1326AB Servo motors, specifically 1326AB-B410G, 1326AB-B410J, 1326AB-B420E, 1326AB-B420H, 1326AB-B430E, 1326AB-B430G, 1326AB-B515E, and 1326AB-B520E. It is also compatible with 1326AS servo motors such as 1326AS-B330H, 1326AS-B420G, 1326AS-B440G, and 1326AS-B460F.
To avoid nuisance tripping of the 1394 motion control system, the 1394-AM04 is ideally paired with the 1394x-SJT05-x system modules with a secondary circuit protection device, catalog number 1492-CB3-H300. The 1394-AM04 is also compatible with the 1394x-SJT10-x and protection device with catalog number 1492-CB3-H500 and 1394x-SJT22-x and protection device with catalog number 1492-CB3-H600. This axis module must be installed in an environment with shock and vibration not exceeding 15g and 1g, respectively.
1394-AM04 伺服驱动轴模块
【其他型号推荐】
| A-B | 1756-EN2TR | A-B | 1769-ECR . | A-B | 1756-EN2T通讯模块 |
| A-B | 1756-IB32 | A-B | 1769-L36ERMA | A-B | 1756-A7机架 |
| A-B | 1756-OB32 | A-B | 1756-IF16 | A-B | 1786-RPA/B |
| A-B | 1756-IF16 | A-B | 1756-IB32 | A-B | 1756-RM2 |
| A-B | 1756-OB16E | A-B | 1756-OB32 | A-B | 1756-IB32 |
| A-B | 1769-ECR | A-B | 1738-AENT SER.B | A-B | 2711P-B6C20D |
| A-B | 1756-OB16E | A-B | 1764-LSP | A-B | 1756-ENBT/A |
| A-B | 1756-TBNH | A-B | 1756-EN2T/C | A-B | 1747-L542 |
| A-B | 1756-IF16 | A-B | 1761-NET-ENI | A-B | 1770-XYC/A电池 |
| A-B | 1756-TBCH | A-B | HT-230712-1001 | A-B | 1756-BA2 |
| A-B | 1756-IB16 | A-B | SST-PFB-SLC | A-B | 1756-BA2 |
| A-B | 2711-B6C20 | A-B | 2711P-T15C4D8 | A-B | 1786-RPA |
| A-B | 1746-NI8 | A-B | 1761-L32BWA | A-B | 1771-ASB |
| A-B | 842E-CM-MIP3BA | A-B | 1761-L10BWA | A-B | 1756-IB32 |
| A-B | 1794-ACN15通讯模块 | A-B | 1756-CN2R | A-B | 1747-L514 |
| A-B | 1786-TPS/C通讯电缆连接器 | A-B | 1761-NET-ENI | A-B | 1746-NI8 |
| A-B | 1746-NO4I | A-B | 1756-1F16 | A-B | 1756-OW16I |
