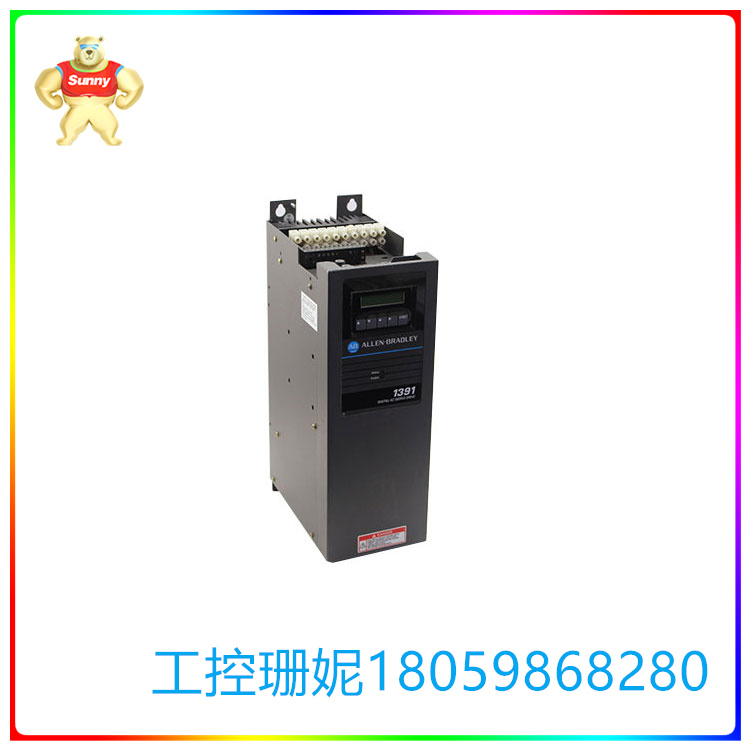

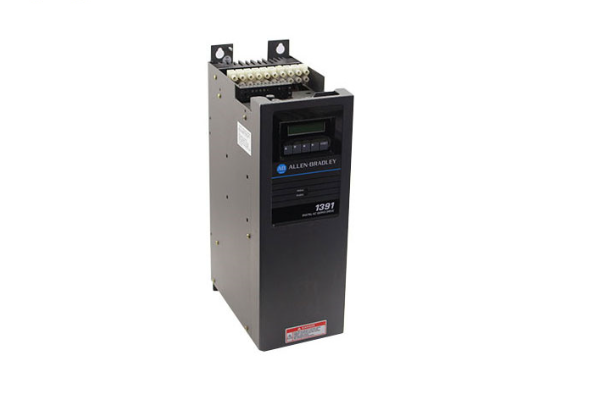

1391-DES45 数字交流伺服驱动器 具有单轴和集成LCD
【产品详情】
Allen-Bradley 1391-DES45-DI是一种数字交流伺服驱动器，具有单轴和集成LCD。它的显示屏由2行16个字符组成，可以通过5个按钮的键盘输入。该驱动器还配有红色/绿色LED状态指示灯，方便监控其状态。1391-DES45-DI驱动器通常用于自动化机器伺服系统，通过集成断路器、标准300V直流电源母线上的集成分流稳压器、分流稳压器电阻和电源线/DB接触器提供内置保护。
1391-DES45-DI驱动器的标称电压为300V DC，其连续电流(RMS)为45a，峰值电流(RMS)为90a。输入功率为230V AC，三相，50hz和60hz，输出功率为210V AC，三相，50hz ~ 60hz, 14kw。1391-DES45-DI驱动器的连续输出功率为15kw，峰值输出功率为30kw。驱动器的断路器具有38A RMS的输入额定值，其对称安培中断额定值为1300a。
1391-DES45-DI驱动器工作温度为0-60℃，存储温度为0-65℃。该驱动器在额定负载下也具有85%的最低效率，以及95%的最小功率因数。其非冷凝相对湿度为5-95%，最大工作高度为1000米或3300英尺。整个1391-DES45-DI驱动器重约34磅。或者15.4千克。
1391-DES45 数字交流伺服驱动器 具有单轴和集成LCD
【英文介绍】
Allen-Bradley 1391-DES45-DI is a digital AC servo drive with a single axis and integrated LCD. Its display consists of two lines of 16 characters that can be entered via a five-button keyboard. The drive is also equipped with a red/green LED status indicator for easy monitoring of its status. The 1391-DES45-DI driver is commonly used in automated machine servo systems and provides built-in protection through integrated circuit breakers, integrated shunt regulators on standard 300V DC power supply busbars, shunt regulator resistors and power line /DB contactors.
The 1391-DES45-DI driver has a nominal voltage of 300V DC, a continuous current (RMS) of 45a, and a peak current (RMS) of 90a. The input power is 230V AC, three-phase, 50hz and 60hz, the output power is 210V AC, three-phase, 50hz ~ 60hz, 14kw. The 1391-DES45-DI driver has a continuous output power of 15kw and a peak output power of 30kw. The circuit breaker for the driver has an input rating of 38A RMS and a symmetric ampere interrupt rating of 1300a.
The operating temperature of the 1391-DES45-DI driver is 0-60 ° C and the storage temperature is 0-65 ° C. The drive also has a minimum efficiency of 85% at rated load, and a minimum power factor of 95%. It has a non-condensing relative humidity of 5-95% and a maximum operating height of 1,000 meters or 3,300 feet. The entire 1391-DES45-DI driver weighs about 34 pounds. Or 15.4 kilograms.
1391-DES45 数字交流伺服驱动器 具有单轴和集成LCD
【其他型号推荐】
| A-B | 1756-EN2TR | A-B | 1769-ECR . | A-B | 1756-EN2T通讯模块 |
| A-B | 1756-IB32 | A-B | 1769-L36ERMA | A-B | 1756-A7机架 |
| A-B | 1756-OB32 | A-B | 1756-IF16 | A-B | 1786-RPA/B |
| A-B | 1756-IF16 | A-B | 1756-IB32 | A-B | 1756-RM2 |
| A-B | 1756-OB16E | A-B | 1756-OB32 | A-B | 1756-IB32 |
| A-B | 1769-ECR | A-B | 1738-AENT SER.B | A-B | 2711P-B6C20D |
| A-B | 1756-OB16E | A-B | 1764-LSP | A-B | 1756-ENBT/A |
| A-B | 1756-TBNH | A-B | 1756-EN2T/C | A-B | 1747-L542 |
| A-B | 1756-IF16 | A-B | 1761-NET-ENI | A-B | 1770-XYC/A电池 |
| A-B | 1756-TBCH | A-B | HT-230712-1001 | A-B | 1756-BA2 |
| A-B | 1756-IB16 | A-B | SST-PFB-SLC | A-B | 1756-BA2 |
| A-B | 2711-B6C20 | A-B | 2711P-T15C4D8 | A-B | 1786-RPA |
| A-B | 1746-NI8 | A-B | 1761-L32BWA | A-B | 1771-ASB |
| A-B | 842E-CM-MIP3BA | A-B | 1761-L10BWA | A-B | 1756-IB32 |
| A-B | 1794-ACN15通讯模块 | A-B | 1756-CN2R | A-B | 1747-L514 |
| A-B | 1786-TPS/C通讯电缆连接器 | A-B | 1761-NET-ENI | A-B | 1746-NI8 |
| A-B | 1746-NO4I | A-B | 1756-1F16 | A-B | 1756-OW16I |
