1336-WB110 频率驱动器
【产品详情】

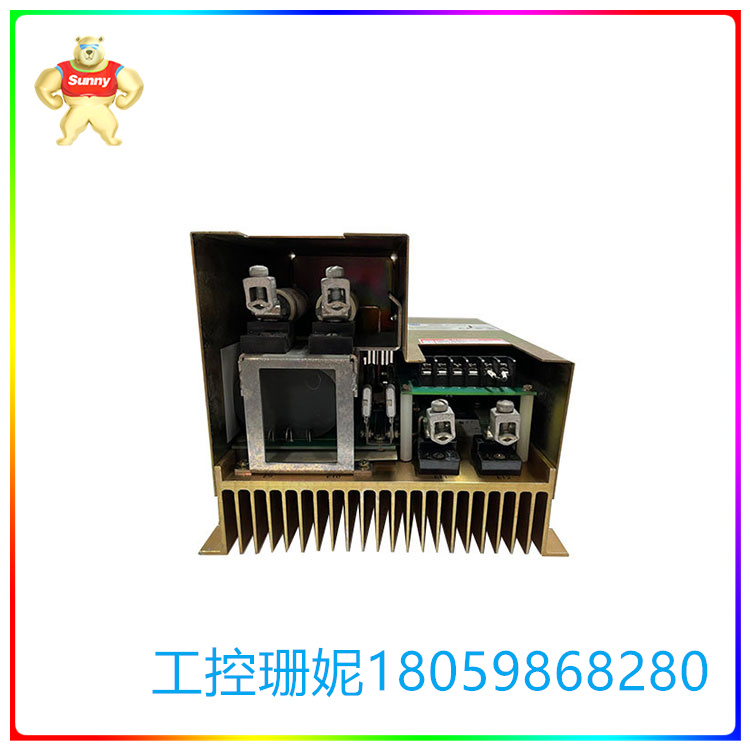

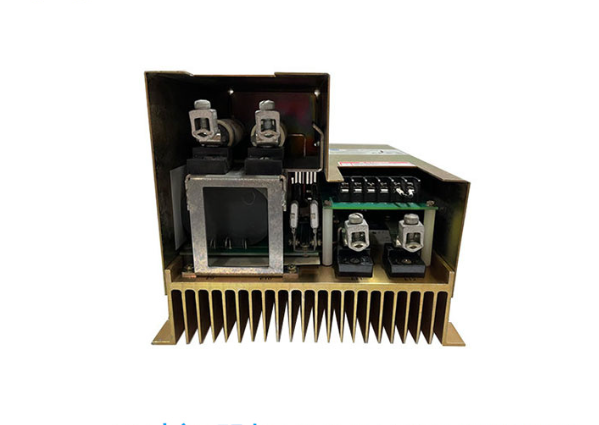

该1336- wb110动态制动斩波模块由艾伦-布拉德利是一个480V交流制动斩波模块与2.5欧姆制动电阻用于增加制动扭矩从10-100%，为艾伦-布拉德利1336,1336VT, 1336PLUS, 1336PLUSII, 1336FORCE，或1336IMPACT频率驱动器。制动斩波模块具有200A, 700V AC, Ferraz Shawmut熔断器，具有可控硅过电压crowbar电路，提供廉价但有效的过电压保护，并且它还具有绝缘栅双极晶体管(IGBT)斩波晶体管电压控制，可在再生期间有效调节直流母线电压。1336-WB110的工作电压范围为380-480V AC，工作电流为110A，在工作电流超过模块额定电流的应用中，它可以与另一个艾伦-布拉德利制动斩波模块并联在主从动件配置中。1336-WB110具有460V交流驱动电压的重载额定值，直流母线电源提供750V直流导通输入电压，以及2.5欧姆动态制动值。
1336-WB110具有12A, 30V直流，常闭(nc)触点，具有晶体管-晶体管环路兼容性，当电源供应给终端的制动模块时，触点被配置为闭合，当制动故障或断电时，触点断开，初始触点电阻为100m欧姆。1336-WB110的工作温度范围为-10-40ºC(14-104ºF)，不降级，无冷凝和无腐蚀湿度范围为5-95%，存储温度范围为-40-70ºC(-40-158ºF)。最大安装高度1000m，不降阶，100%占空比时最大功耗190W，封装在IP00(开式)等级外壳内。1336-WB110重约11.34公斤(25磅)，整体尺寸为290.6毫米x 239.8毫米x 304.8毫米(11.44英寸x 9.44英寸x 12英寸)，并通过UL和c-UL认证，符合CE要求。
1336-WB110 频率驱动器
【英文介绍】
The 1336-wb110 Dynamic Brake Chopper module by Allen Bradley is a 480V AC brake chopper module with 2.5 ohm brake resistors used to increase braking torque from 10-100%, Available as Allen-Bradley 1336,1336VT, 1336PLUS, 1336PLUSII, 1336FORCE, or 1336IMPACT frequency drivers. The brake chopper module has a 200A, 700V AC, Ferraz Shawmut fuse, has a thyristor overvoltage crowbar circuit that provides inexpensive but effective overvoltage protection, and it also has an insulated-gate bipolar transistor (IGBT) chopper transistor voltage control that effectively regulates the DC bus voltage during regeneration. The 1336-WB110 operates in a voltage range of 380-480V AC with an operating current of 110A and can be connected in parallel with another Allen-Bradley brake chopper module in a master-slave actuator configuration in applications where the operating current exceeds the module rating. The 1336-WB110 has a heavy duty rating of 460V AC drive voltage, a 750V DC on-input voltage from a DC bus supply, and a 2.5 ohm dynamic braking value.
The 1336-WB110 has 12A, 30V DC, normally closed (nc) contacts with transistor-transistor loop compatibility that are configured to close when power is supplied to the terminal's brake module and open when the brake fails or power is lost, with an initial contact resistance of 100m ohms. The 1336-WB110 has an operating temperature range of -10-40ºC(14-104ºF), non-degraded, non-condensing and non-corrosive humidity range of 5-95%, and a storage temperature range of -40-70ºC(-40-158ºF). Maximum installation height 1000m, no order reduction, maximum power consumption 190W at 100% duty cycle, packaged in IP00(open) grade housing. The 1336-WB110 weighs approximately 11.34 kg (25 lb), has an overall dimension of 290.6 mm x 239.8 mm x 304.8 mm (11.44 in x 9.44 in x 12 in), and is UL and c-UL certified to meet CE requirements.
1336-WB110 频率驱动器
