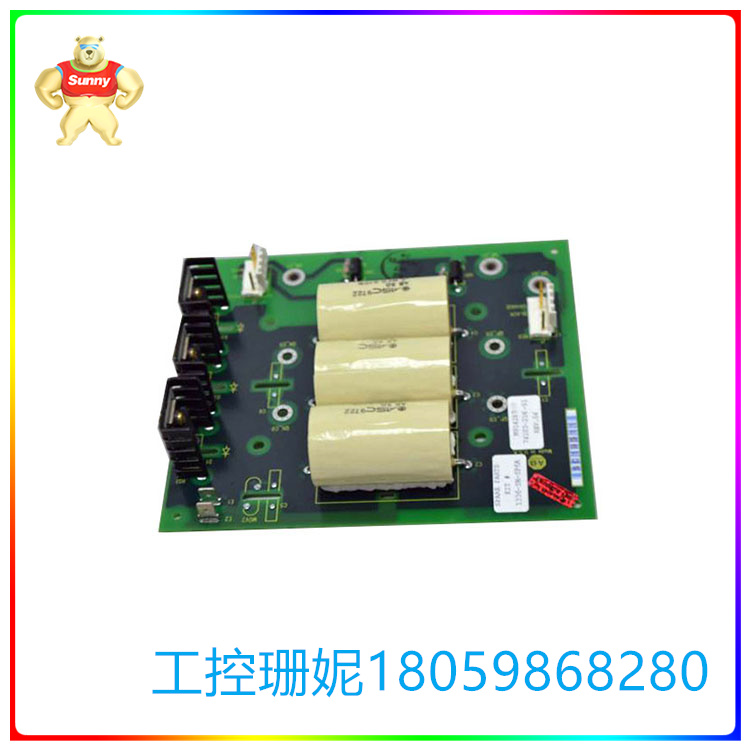

1336-SN-SP6A 逆变缓冲器板
【产品详情】
Allen-Bradley 1336- sn - sp6a逆变缓冲器板组件套件是用于1336系列Allen-Bradley交流驱动器的替代缓冲器板。1336- sn - sp6a缓冲器板是一种独立的设备，不共享公共总线，与Impact, Force, Plus和Plus系列1336驱动器兼容。一般来说，1336-SN-SP6A PCB逆变器缓冲板和所有类似的板有助于限制电路中的开关电压和电压瞬态电平的任何上升。1336-SN-SP6A缓冲板组件套件包括3个逆变器缓冲板和15个提供的紧固螺钉。它被设计为兼容艾伦-布拉德利1336 Plus, Plus II，力和冲击驱动器与230伏交流输入电压额定值和40至50马力输出功率额定值。它还与460伏交流额定D-Frame驱动器兼容，输出功率为60至100马力。1336- sn - sp6a板可作为575伏交流额定D-Frame 1336 Plus, Plus II, Force和Impact系列驱动器的替换逆变器缓冲板，额定功率在75马力到100马力之间。
1336-SN-SP6A逆变器缓冲板不向后兼容任何以前的逆变器缓冲板版本，它只能作为具有类似规格的缓冲板的替代品。更换旧的隔音板并安装一块新的很容易。安装1336-SN-SP6A PCB逆变器缓冲板时，请先拆卸机箱(如果有)，然后关闭驱动器电源。拆下固定旧板的螺丝，将旧板拆下，再更换新板。请参阅1336 FORCE-6.2, 1336 PLUS-6.2或1336 IMPACT-6.2故障排除手册，了解有关缓冲板更换和安装的更多信息。

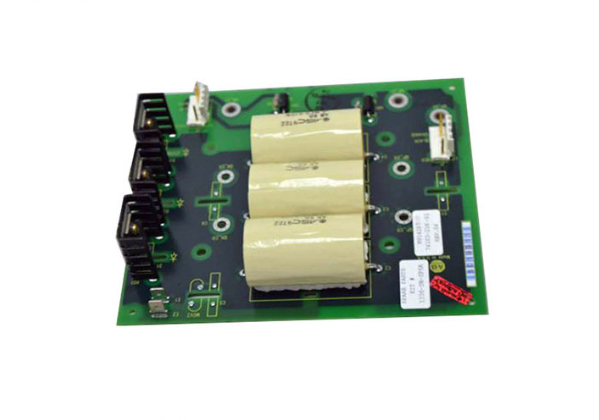

1336-SN-SP6A 逆变缓冲器板
【英文介绍】
The Allen-Bradley 1336-SN-SP6A Inverter Snubber Board Assembly Kit is a replacement Snubber Board for the 1336 series of Allen-Bradley AC drives. The 1336-SN-SP6A Snubber Board is a stand-alone device that does not share a common bus and that is compatible with the Impact, Force, Plus, and Plus series 1336 drives. Generally, the 1336-SN-SP6A PCB Inverter Snubber Board and all board like it help to limit switching voltage in the circuit and any rise in the voltage transient level. The 1336-SN-SP6A Snubber Board Assembly Kit comprises 3 inverter snubber boards, and 15 supplied fastening screws. It is designed to be compatible with Allen-Bradley 1336 Plus, Plus II, Force, and Impact drives with 230 Volts AC input voltage ratings and 40 to 50 Horsepower output power ratings. It is also compatible with the 460 Volts AC rated D-Frame drives with 60 to 100 Horsepower output power ratings. The 1336-SN-SP6A Board can serve as a replacement inverter snubber board for the 575 Volts AC rated D-Frame 1336 Plus, Plus II, Force, and Impact series drives with ratings between 75 Horsepower and 100 Horsepower.
The 1336-SN-SP6A Inverter Snubber Board is not backward-compatible with any previous Inverter Snubber Board versions, and it can only serve as a replacement for snubber boards with similar specifications. Replacing the old snubber board and installing a new one is very easy. To install the 1336-SN-SP6A PCB Inverter Snubber Board, remove the enclosure first (if there is any) and turn off the power to the drive. Remove the screws fastening the old board in place and detach the old board, then replace it with a new board. Consult the 1336 FORCE-6.2, 1336 PLUS-6.2, or 1336 IMPACT-6.2 Troubleshooting Manual for more information on snubber board replacement and installation.
1336-SN-SP6A 逆变缓冲器板
【其他型号推荐】
| A-B | 1756-EN2TR | A-B | 1769-ECR . | A-B | 1756-EN2T通讯模块 |
| A-B | 1756-IB32 | A-B | 1769-L36ERMA | A-B | 1756-A7机架 |
| A-B | 1756-OB32 | A-B | 1756-IF16 | A-B | 1786-RPA/B |
| A-B | 1756-IF16 | A-B | 1756-IB32 | A-B | 1756-RM2 |
| A-B | 1756-OB16E | A-B | 1756-OB32 | A-B | 1756-IB32 |
| A-B | 1769-ECR | A-B | 1738-AENT SER.B | A-B | 2711P-B6C20D |
| A-B | 1756-OB16E | A-B | 1764-LSP | A-B | 1756-ENBT/A |
| A-B | 1756-TBNH | A-B | 1756-EN2T/C | A-B | 1747-L542 |
| A-B | 1756-IF16 | A-B | 1761-NET-ENI | A-B | 1770-XYC/A电池 |
| A-B | 1756-TBCH | A-B | HT-230712-1001 | A-B | 1756-BA2 |
| A-B | 1756-IB16 | A-B | SST-PFB-SLC | A-B | 1756-BA2 |
| A-B | 2711-B6C20 | A-B | 2711P-T15C4D8 | A-B | 1786-RPA |
| A-B | 1746-NI8 | A-B | 1761-L32BWA | A-B | 1771-ASB |
| A-B | 842E-CM-MIP3BA | A-B | 1761-L10BWA | A-B | 1756-IB32 |
| A-B | 1794-ACN15通讯模块 | A-B | 1756-CN2R | A-B | 1747-L514 |
| A-B | 1786-TPS/C通讯电缆连接器 | A-B | 1761-NET-ENI | A-B | 1746-NI8 |
| A-B | 1746-NO4I | A-B | 1756-1F16 | A-B | 1756-OW16I |
