1336-MOD-L2 5V DC TTL逻辑接口板

【产品详情】

Allen-Bradley 1336-MOD-L2板是由罗克韦尔自动化制造的产品，它由直流电压供电。Allen-Bradley 1336-MOD-L2是一款5V DC TTL逻辑接口板。它与1336驱动器家族兼容并能很好地工作。这个逻辑接口板总是与驱动器的触点闭合一起使用。它还具有NEMA 12型基本控制面板，具有START, STOP和JOG按钮，反向或正向开关和单转速度电位器。该驱动器和整个1336驱动器的HP额定值从3 HP到800 HP不等。

1336系列有不同类型的驱动器，如FORCE, IMPACT, CLASSIC, PLUS和PLUS II驱动器。这些类型中的任何一种都可以与Allen-Bradley 1336-MOD-L2逻辑接口板一起使用。这些驱动器还配备了UL面板识别，以及不同的通信和I/O端口。其中一些是模拟I/O，一些是增强的DeviceNet端口，一些是RS232/422/485端口，一些是DeviceNet端口，还有一些是单点RIO。

1336系列驱动器以及Allen-Bradley 1336- mod - l2逻辑接口板具有安全功能，例如防止电机过载，输出短路，输出接地故障，过压和欠压保护。此外，这些驱动器在驱动器的非可编程输入处有一个硬件使能器，精确地说是在终端30。一般性能应用程序最好利用PLUS, PLUS II和CLASSIC 1336驱动器。另一方面，高性能应用程序最好与FORCE和IMPACT 1336驱动器一起使用。

1336-MOD-L2 5V DC TTL逻辑接口板

【英文介绍】

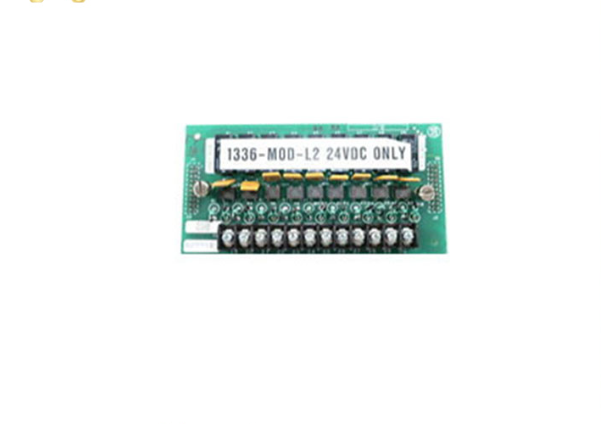

The Allen-Bradley 1336-MOD-L2 Board is a product manufactured by Rockwell Automation and it is powered by DC voltage.  The Allen-Bradley 1336-MOD-L2 is a 5V DC TTL logic interface board.  It is compatible with and works well with the 1336 drive family.  This logic interface board is always used with the contact closures of the drives.  It also features NEMA Type 12 basic control panels, with the START, STOP, and JOG push buttons, a reverse or forward switch, and a single-turn speed potentiometer.  This drive and the entire 1336 drives have HP ratings ranging from 3 HP to 800 HP.

The 1336 series has different types of drives such as the FORCE, IMPACT, CLASSIC, PLUS, and PLUS II drives.  Any of these types can be used with the Allen-Bradley 1336-MOD-L2 logic interface board.  These drives are also equipped with a UL panel recognition, and dissimilar communication and I/O ports.  Some of them are analog I/O, some are Enhanced DeviceNet ports, some are RS232/422/485 ports, some are DeviceNet ports, and some are single-point RIO.

The 1336 series of drives, as well as the Allen-Bradley 1336-MOD-L2 logic interface board, have safety features such as protection against motor overload, output short circuits, output ground faults, over voltage, and protection against under voltage.  Additionally, these drives have a hardware-enabler positioned at the drive’s non-programmable input, precisely at Terminal 30.  The general performance applications are best utilized with the PLUS, PLUS II, and CLASSIC 1336 drives.  On the other hand, the high-performance applications are best used with the FORCE and the IMPACT 1336 drives.

1336-MOD-L2 5V DC TTL逻辑接口板

【其他型号推荐】

【常见问题】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
