1336-L5 控制接口板 可调频率交流驱动器

【产品详情】

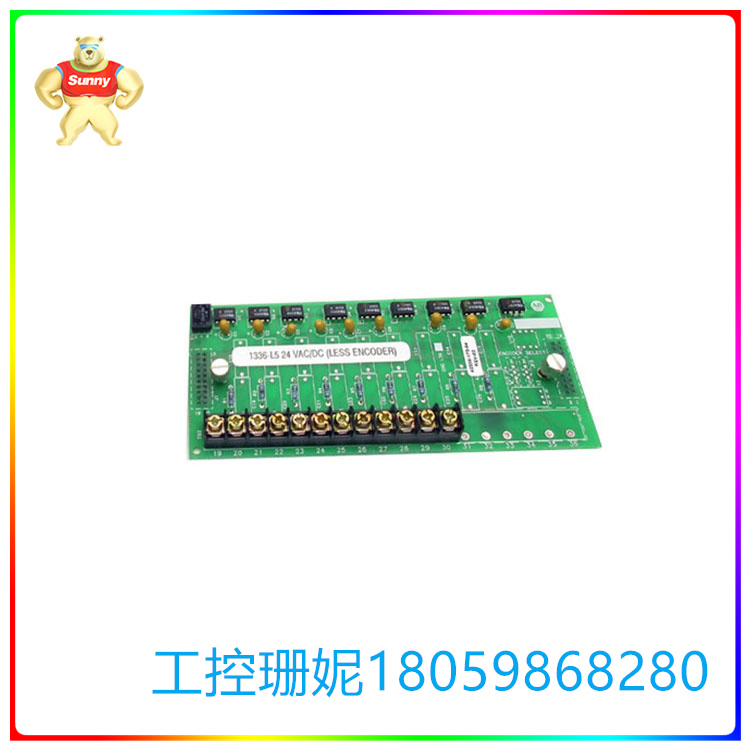

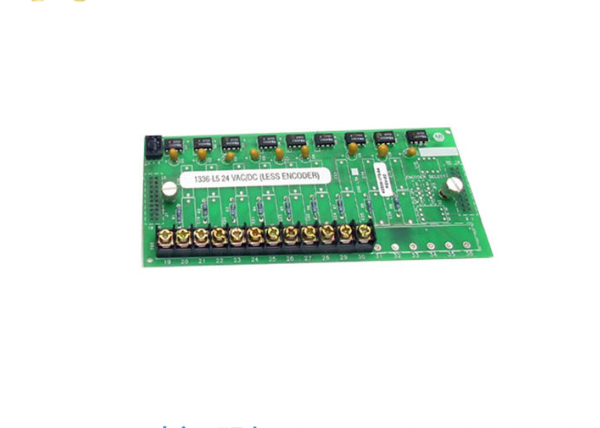

1336- l5是控制接口选项卡，是艾伦-布拉德利1336加可调频率交流驱动器的一部分。它特别适用于1336 Plus, 1336 Force和1336 Impact驱动器，特别是框架A-H驱动器，除了具有25 HP和30 HP额定功率的框架C驱动器。该控制接口板安装在主控板的底部，位于TB2端子带的顶部。1336-L5是一个24 VDC / 24 VAC逻辑板，用于接收额外的外部触点闭合信号。这些信号可以是任何电路，提供高=真逻辑状态，如硬连线电路，可编程逻辑控制器(PLC)输出模块，辅助触点，顺序器，以及提供24 VDC / VAC额定信号电压的类似电路。1366-L5有12个螺纹端子，设计用于连接2.1和0.30 mm2(14和22 AWG)铜线。紧固连接时，扭矩为0.90-1.13 N-m (8-10 lb. in.)。端子19和20用于启动/停止功能，端子19可编程接受状态、运行、前进和开始输入，而端子20可配置停止/故障复位信号。其他可以连接到控制接口板可用的TB3端子带的输入包括Reverse / Forward;慢跑;辅助和速度选择1-3个输入。该接口板支持2线制和3线制控制接线配置。其他可以通过控制接口板发起的命令有加速、减速、同步和遍历。

Allen-Bradley 1336- l5 +24伏交流/直流控制接口板是用于1336可调频率交流驱动器的逻辑控制接口选项板，它提供了连接各种驱动器命令和功能的手段。与所有其他逻辑接口板一样，该板位于主控板的A端口，它有9个控制输入，可以编程为任何选择的功能。为了正常工作，1336-L5逻辑控制接口板需要能够在高= true逻辑下工作的电路，并且需要24伏用户提供的交流/直流电压才能正常工作。该板还可以正常工作，电路在低状态下产生不超过8v DC/ 10v AC和1.5/2.5 mA，电压范围为+20至+26 v AC，高状态下每个输入源电流为10ma。1336-L5可用于编程各种驱动命令和功能，其中包括2个驱动加速/减速控制输入，允许用户选择驱动器使用的加速和减速时间。1336-L5也可用于本地控制，这使用户可以独家控制驱动逻辑，它还有助于控制前进/反转功能，控制反向和正向操作。该板还可用于控制其他各种驱动功能，如使能，通量使能，Jog，数字电位器，斜坡，复位和启动功能。1336-L5安装在主控板上J1跳线的2、3引脚和17、18引脚处，与1771-OB、-OQ、-OBB、-OBD、-OBN、-OQ16 PLC模块兼容。

1336-L5 控制接口板 可调频率交流驱动器

【英文介绍】

The 1336-L5 is a Control Interface option card that is part of the 1336 Plus Adjustable Frequency AC Drive by Allen-Bradley.  It is specifically compatible for use with the 1336 Plus, 1336 Force, and 1336 Impact, drives specifically, Frame A-H drives except Frame C drives with 25 HP and 30 HP power rating.  This control interface board is mounted at the bottom of the main control board, sitting atop the TB2 terminal strip.  The 1336-L5 is a 24 VDC / 24 VAC logic board that is used to receive additional external contact closure signals.  These signals could be any circuit that provides High = True logic state such as hardwired circuits, Programmable Logic Controller (PLC) output modules, auxiliary contacts, sequencers, and similar circuitry that delivers 24 VDC / VAC rated signal voltage.  The 1366-L5 has Twelve (12) screw-type terminals that are designed to be terminated with wire sizes 2.1 and 0.30 mm2 (14 and 22 AWG) copper wires.  Tighten connections at Torque of 0.90-1.13 N-m (8-10 lb.-in.).  Terminal 19 and 20 are intended for Start / Stop functions only with terminal 19 programmable to accept Status, Run, Forward, and Start input while terminal 20 is configurable to Stop / Fault Reset signals.  Other inputs that can be wired to the TB3 terminal strip available to the control interface board include Reverse / Forward;  Jog;  Auxiliary and Speed Select 1-3 inputs.  This interface board supports 2-wire and 3wire control wiring configurations.  Other commands that can be initiated via the control interface board are Acceleration, Deceleration, Sync, and Traverse.

The Allen-Bradley 1336-L5 +24 Volts AC/DC Control Interface Board is a logic control interface option board for the 1336 adjustable frequency AC drives, which provides a means of interfacing various drive commands and functions.  This board, like all other logic interface boards, is located on Port A of the main control board, and it has 9 control inputs, which can be programmed for any selected function.  To function properly, the 1336-L5 logic control interface board requires a circuit capable of operating at high = true logic, and it requires 24 Volts AC/DC user-supplied voltage to function.  This board also functions properly with a circuit capable of generating no more than 8 Volts DC/10 Volt AC and 1.5/2.5 mA in the low state, and a voltage range of +20 to +26 Volts AC, with a source current of 10 mA for each input in the high state.  The 1336-L5 can be used to program various drive commands and functions, and among those functions are 2 drive accel/decel control inputs which allow users to select the acceleration and deceleration times the drive uses.  The 1336-L5 can also be used for local control, which gives users exclusive control of the drive logic, and it also helps control the Fwd/Reverse function, which controls reverse and forward direction operation.  This board can also be used to control other various drive functions like the Enable, Flux Enable, Jog, Digital Potentiometer, Ramp, Reset, and Start functions.  The 1336-L5 is installed on the main control board at pins 2 and 3, and 17 and 18 of the J1 jumper on the main control board, and it is compatible with the 1771-OB, -OQ, -OBB, -OBD, -OBN, and -OQ16 PLC modules.

1336-L5 控制接口板 可调频率交流驱动器

【其他型号推荐】

【常见问题】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。
