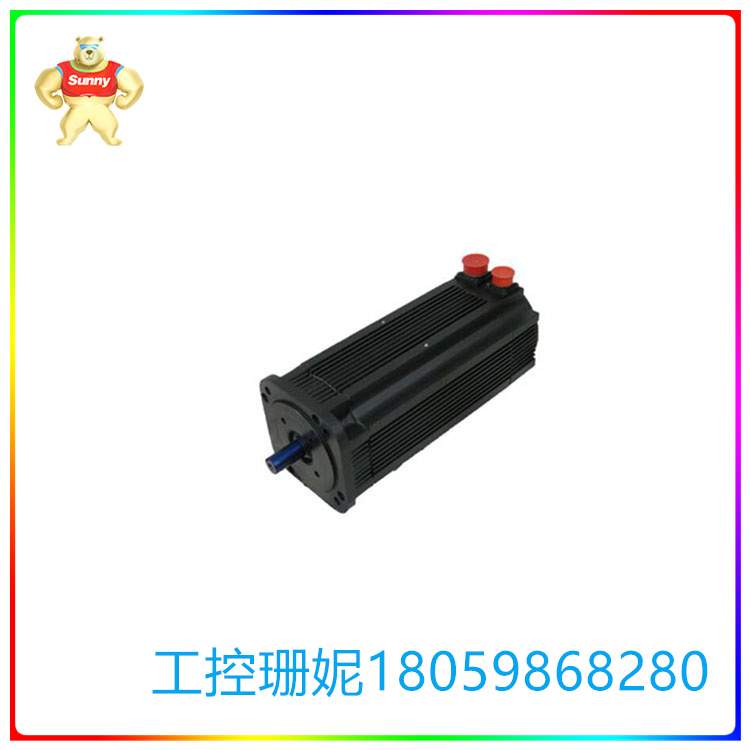

1326AB-B720E-21 Allen-Bradley 伺服电机
【产品详情】
该1326AB-B720E-21伺服电机是一个3500 RPM额定艾伦-布拉德利伺服电机。它是作为艾伦-布拉德利1326AB系列伺服电机的一部分设计和制造的。1326AB系列伺服电机的应用包括金属成型，包装，汽车和机床应用。1326AB-B720E-21伺服电机分别在380伏和460伏交流电下提供3000和3500转。额外的电机规格包括27.3磅对一英寸电机扭矩，6.8千瓦的功率输出，和0.14磅-in-s2转子惯性。1326AB-B720E-21伺服电机设计用于Allen-Bradley 1394电机控制系统。电机可与2个不同的1394轴模块一起使用。在Allen-Bradley AM50和AM75模块中，电机提供273磅/英寸的稳态失速扭矩，而AM50模块的最大失速扭矩为518磅/英寸，AM75模块的最大失速扭矩为780磅/英寸。使用AM50和AM75模块时，1326AB-B720E-21伺服电机可提供17.5安培的连续失速电流，而使用AM50模块时最大失速电流为33.2安培，使用AM75模块时最大失速电流为50安培。
1326AB-B720E-21伺服电机的机械规格包括机架直径194毫米，磁体堆叠长度20毫米，电机重量102磅。伺服电机上还提供IEC 72-1公制法兰和基于旋转器的反馈。Allen-Bradley建议1326AB-B720E-21伺服电机应在电机周围空气温度不超过104华氏度的环境中运行。电机可安装轴垂直向下或向上。1326AB-B720E-21伺服电机的挤压铝外壳使其具有更好的传热。电机的环保等级为ip65。

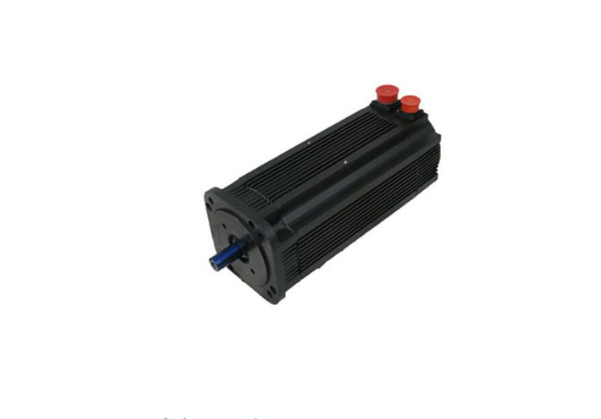

1326AB-B720E-21 Allen-Bradley 伺服电机
【英文介绍】
The 1326AB-B720E-21 servo motor is a 3500 RPM rated Allen-Bradley servo motor. It is designed and manufactured as part of the Allen-Bradley 1326AB series of servo motors. Applications of the 1326AB series servo motors include metal forming, packaging, automotive and machine tool applications. The 1326AB-B720E-21 servo motor offers 3000 and 3500 RPM at 380 and 460 VAC respectively. Additional motor specifications include 27.3 pounds-to-inch motor torque, 6.8 kilowatts of power output, and 0.14 pounds-in-S2 rotor inertia. The 1326AB-B720E-21 servo motor is designed for the Allen-Bradley 1394 motor control system. The motor can be used with 2 different 1394 axis modules. In the Allen-Bradley AM50 and AM75 modules, the motor provides 273 lb/inch of steady-state stall torque, while the AM50 module has a maximum stall torque of 518 lb/inch and the AM75 module has a maximum stall torque of 780 lb/inch. With the AM50 and AM75 modules, the 1326AB-B720E-21 servo motor provides a continuous stall current of 17.5 amps, compared to a maximum stall current of 33.2 AMps with the AM50 module and 50 AMps with the AM75 module.
The mechanical specifications of the 1326AB-B720E-21 servo motor include a rack diameter of 194 mm, a magnet stack length of 20 mm, and a motor weight of 102 LBS. IEC 72-1 metric flanges and rotator-based feedback are also available on the servo motor. Allen-Bradley recommends that the 1326AB-B720E-21 servo motor should be operated in an environment where the air temperature around the motor does not exceed 104 degrees Fahrenheit. The motor can be mounted vertically down or up. The extruded aluminum housing of the 1326AB-B720E-21 servo motor enables better heat transfer. The motor's environmental protection rating is ip65.
1326AB-B720E-21 Allen-Bradley 伺服电机
【其他型号推荐】
| A-B | 1756-IB32 | A-B | 20-HIM-A6 | A-B | 1794-IB16 |
| A-B | 1756-IB32 | A-B | 2098-DSD-020X | A-B | 1794-ASB |
| A-B | 1769-L30ER | A-B | 1769-L33ER | A-B | 1747-L541 |
| A-B | 1762-L24BWA | A-B | 1794-AENT | A-B | 22B-D010N104 |
| A-B | 1756-OF8 | A-B | 1794-IE12 | A-B | 1756-PA72电源模块 |
| A-B | 2080-LC50-24QBB | A-B | 1794-OE12 | A-B | 1756-OF8模拟量模块 |
| A-B | 1769-L33ER | A-B | 1794-OB32P | A-B | 1756-IF16模拟量模块 |
| A-B | 1756-RM2 | A-B | 1794-IB32 | A-B | 1756-IB16数字量模块 |
| A-B | 1756-EN2TR | A-B | 1769-ECR . | A-B | 1756-EN2T通讯模块 |
| A-B | 1756-IB32 | A-B | 1769-L36ERMA | A-B | 1756-A7机架 |
| A-B | 1756-OB32 | A-B | 1756-IF16 | A-B | 1786-RPA/B |
| A-B | 1756-IF16 | A-B | 1756-IB32 | A-B | 1756-RM2 |
【常见问题】
1）备件
2）保修期：12个月！
3）包装：原包装与纸箱。
4）交货时间：付款后3天内发货
5）所有货物将在发货前进行测试。
无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！
问：您的交货时间如何？
答：我们有很多库存商品，3-5天您将收到它。
问：你们提供保修吗？
答：是的，我们为所有剩余的部件提供1年保修。
问：您可以接受哪些付款方式？
答：通常我们在中国大陆接受T/T和人民币转账
