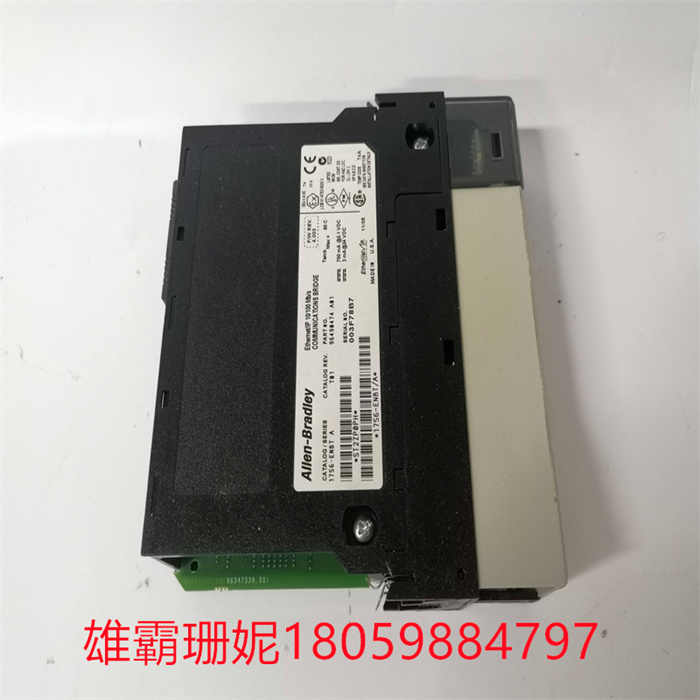

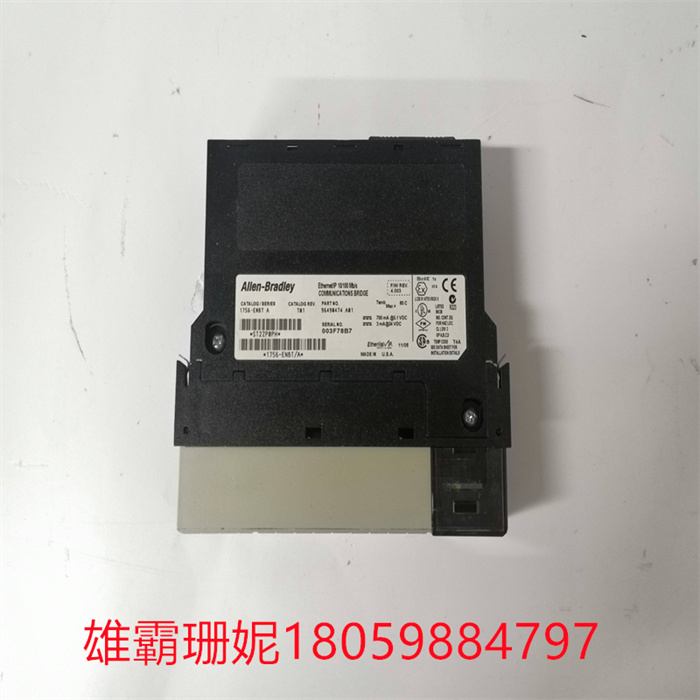

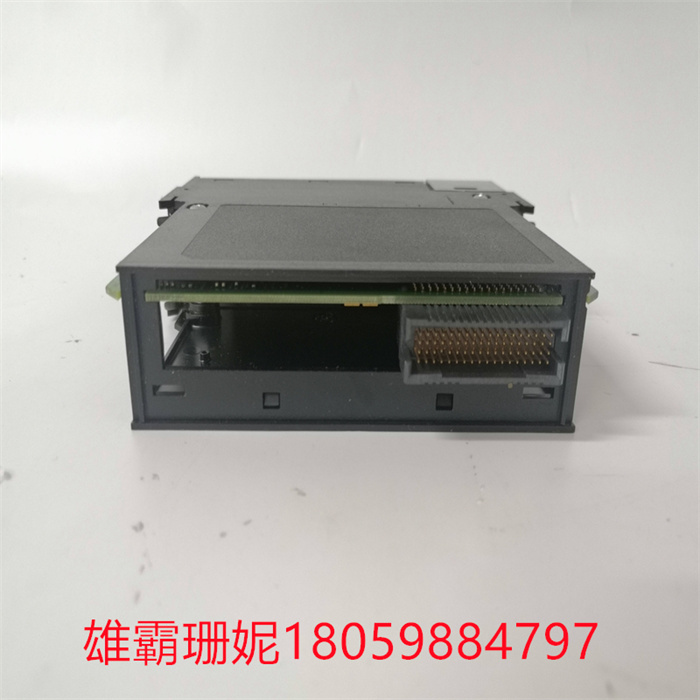

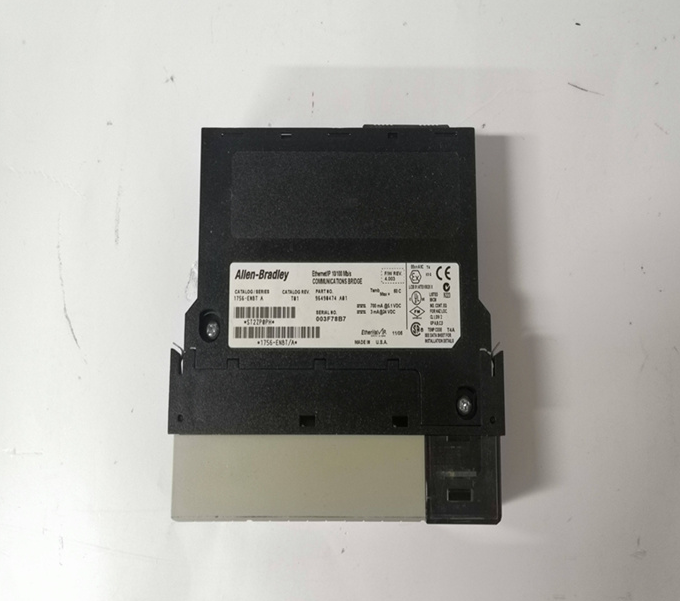

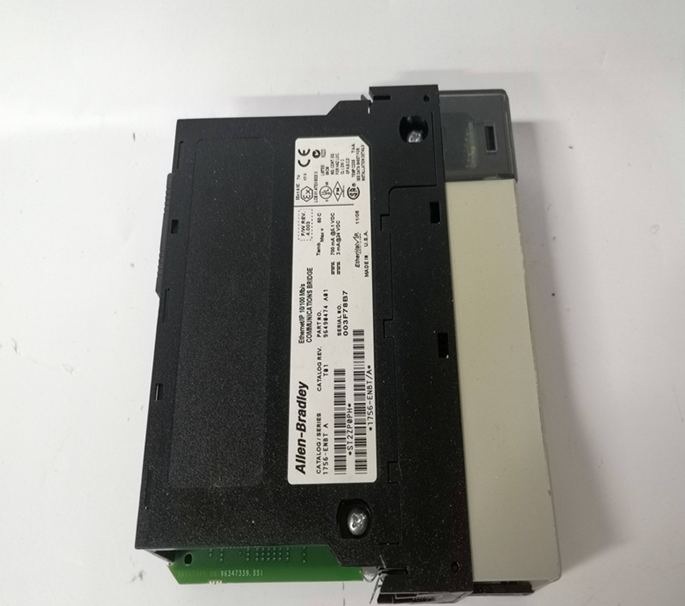

A-B 1756-ENBTA 通信模块

A-B 1756-ENBTA 电机保护器

A-B 1756-ENBTA 通信模块

Allen-Bradley 1756-ENBT ControlLlogix EtherNet/IP 10/100 桥接模块 -双绞线，最多支持 64 个 TCP/IP 连接和 128 个 Logix连接 (U/0 和信息)，64 + 64 个 CIP 未连接消息(背板 + 以太网);最大多标签数: 32单播 在 RSLogix 5000 软件版本16.03.00 或更高版本中可用:套接字服务:SNMP 支持需要密码)，重复 P 检测(从修订版 3.3 开始)数据包速率容量(数包秒): 500pps /0,900pps HMI/MSGOB 1771-AN 1771-0BN 1771-IFMS... 1746-NT8 1747-N116...1747-L541 1747L542 1747-L551 1747-L552 1747-L553 .....

A-B 1756-ENBTA 通信模块最多可支持64个与其它ControlNet设备的双向连接。它可以是计划连接和非计划连接的混合。但是，支持的连接数也取决于网络配置。如果应用程序需要更多的连接，用户可以添加另一个1756 CNB模块，但他们必须确保在与第一个模块相司的机箱和网络中添加。它还可以为未连接的消息支持多达20个缓冲区。它还有两个端口--一个控制网BNC端口和一个控制网RJ45端口。安装A-B 1756-ENBTA 通信模块时，用户需要首先设置模块的节点地址开关。他们可以从01到99中洗择一个唯一的节点地址。然后，用户可以通过使用一组模块将该模块用作独立控制模块，或者通过使用相同的模块对(伙伴)将该模块用作几余控制设置。请注意，使用几余控制时，节点地址交换机应该具有相同的节点地址。在5.1伏DC下A-B 1756-ENBTA 通信模块的电流消耗是970毫安，如果电流消耗是在24伏DC下则是1.7毫安。它的功耗额定为5.14瓦。

A-B 1756-ENBTA 通信模块是一种Controllogix通信适配器，用于将任何Controllogix机架连接到ControlNet数据高速公路。该模块是一个单槽模块，带有一(1)个用于非几余媒体操作的BNC连接器和一(1)个NAP(带屏蔽的RJ-45 8针)的集成通信端口。

A-B 1756-ENBTA 通信模块

这种ControlNet桥与Allen-Bradley平台的ControlNet模块兼容，如Flex 10系统、POINT0、SLC和PLC5 ControlNet.

Allen-bradley 1756-enbt controllogix Ethernet/IP 10/100 bridge module-twisted pair, which supports up to 64 TCP/IP connections and 128 Logix connections (U/0 and information) and 64+64 CIP disconnected messages (backplane+Ethernet); Maximum number of tags: 32 Unicast is available in RSLogix 5000 software version 16.03.00 or later: Socket service: SNMP support requires password), repeated P detection (starting from revision 3.3) Packet rate capacity (several packets per second): 500pps /0, 900pps HMI/MSGOB 1771-AN 1771-0BN 1771-IFMS... 1746-NT8 1747-N116...1747-L541 1747L542 1747-L551 1747-L552 1747-L553  .....

A-B 1756-ENBTA communication module can support up to 64 bidirectional connections with other ControlNet devices. It can be a mixture of planned and unplanned connections. However, the number of connections supported also depends on the network configuration. If the application needs more connections, users can add another 1756 CNB module, but they must make sure to add it in the chassis and network that is different from the first module. It can also support up to 20 buffers for disconnected messages. It also has two ports-a control network BNC port and a control network RJ45 port. When installing A-B 1756-ENBTA communication module, users need to set the node address switch of the module first. They can choose a unique node address from 01 to 99. Then, the user can use the module as an independent control module by using a group of modules, or use the module as several control settings by using the same module pair (partner). Note that when using redundant control, the node address switches should have the same node address. The current consumption of A-B 1756-ENBTA communication module is 970 mA at 5.1 volts DC, and 1.7 mA if the current consumption is at 24 volts DC. Its power consumption is rated at 5.14 watts.

A-B 1756-ENBTA communication module is a Controllogix communication adapter, which is used to connect any Controllogix rack to the ControlNet data highway. The module is a single slot module with one (1) BNC connector for non-redundant media operation and one (1) NAP (RJ-45 8 pin with shield) integrated communication port.

This ControlNet bridge is compatible with ControlNet modules of Allen-Bradley platform, such as Flex 10 system, POINT0, SLC and PLC5 ControlNet.

A-B 1756-ENBTA 通信模块
