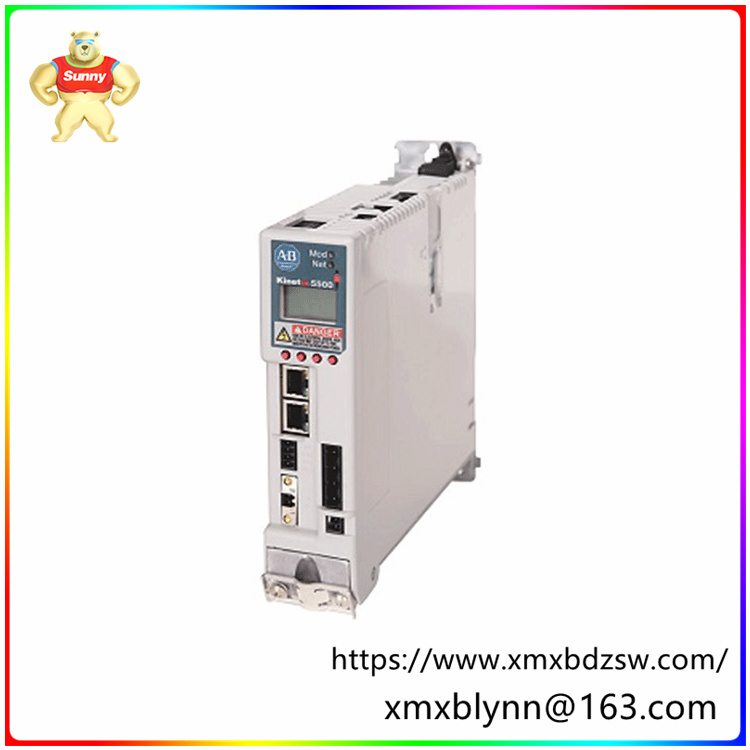

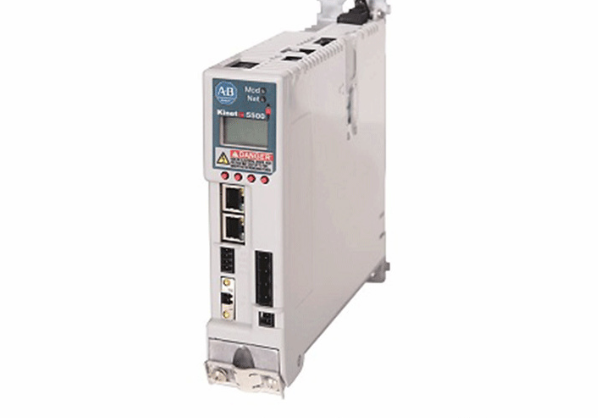

2198-S086-ERS4 单轴逆变器 具有电机制动连接器

☆型号：2198-S086-ERS4   单轴逆变器    具有电机制动连接器

【产品详情】

制造者：艾伦-布拉德利

品牌：艾伦-布拉德利

零件编号：编号：2198-S086-ERS4

模块类型：单轴逆变器

产品线：Kinetix 伺服

2198-S086-ERS4 驱动器是一款单轴伺服驱动器，由 Allen-Bradley 在 Kinetix 5700 驱动器系列中设计和制造。其PWM额定频率为4千赫兹。2198-S086-ERS4 单轴伺服驱动器可用于工业环境中的复杂多轴控制系统，这些系统清洁、无害且不会出现明显的湿气或冷凝。该驱动器可以承受高达 95% 的相对湿度水平，而不会在操作和存储中出现冷凝。它在 32 到 122 华氏度之间的温度下运行，可以在 -40 到 158 华氏度的温度下储存或运输。2198-S086-ERS4 单轴伺服驱动器配有安装片和易于安装的切口，并配有有助于调节温度的冷却风扇。

Allen-Bradley 2198-S086-ERS4 Kinetix 5700 系列单轴伺服驱动器通过以太网与其他设备通信，并带有 2 个以太网 RJ45 端口，用于进行以太网连接。该驱动器还具有电机制动连接器、电机反馈连接器、通用反馈连接器、数字输入连接器、安全扭矩关闭连接器、直流总线连接器、电机电源连接器和 24 伏控制输入电源连接器。2198-S086-ERS4 伺服驱动器的前面板上有一个小的 LCD 屏幕和导航键。它支持最大速度环路频率的 400 赫兹和 1000 赫兹的电流环路频率的带宽额定值。其连续 RMS 输出电流额定值为 43 安培，其连续 0 包输出额定电流为 60.8 安培。

【英文介绍】

Maker: Alan Bradley

Brand: Alan Bradley

Part Number: Number: 2198-S086-ERS4

Module type: single-axis inverter

Product line: Kinetix Servo

The 2198-S086-ERS4 drive is a single-axis servo drive designed and manufactured by Allen-Bradley in the Kinetix 5700 drive family. Its PWM frequency is rated at 4 KHZ. The 2198-S086-ERS4 single-axis servo drive can be used in complex multi-axis control systems in industrial environments that are clean, harmless and do not experience significant moisture or condensation. The drive can withstand relative humidity levels of up to 95% without condensation in operation and storage. It operates at temperatures between 32 and 122 degrees Fahrenheit and can be stored or transported at temperatures between -40 and 158 degrees Fahrenheit. The 2198-S086-ERS4 single-axis servo drive is equipped with mounting pads and easy-to-install notches, and is equipped with a cooling fan to help regulate the temperature.

Allen-Bradley 2198-S086-ERS4 Kinetix 5700 Series single-axis servo drives communicate with other devices over Ethernet and come with 2 Ethernet RJ45 ports for Ethernet connections. The drive also has a motor brake connector, motor feedback connector, universal feedback connector, digital input connector, safe torque off connector, DC bus connector, motor power connector, and 24 volt control input power connector. The 2198-S086-ERS4 servo drive has a small LCD screen and navigation keys on the front panel. It supports bandwidth ratings for maximum speed loop frequencies of 400 Hz and current loop frequencies of 1000 Hz. Its continuous RMS output current rating is 43 amps and its continuous 0 packet output current rating is 60.8 amps.
