2094-AC16-M03-S 集成轴模块 包含一个逆变器和一个转换器部分

>>>>>型号:2094-AC16-M03-S  集成轴模块    包含一个逆变器和一个转换器部分

【功能描述】

品牌 ：艾伦-布拉德利

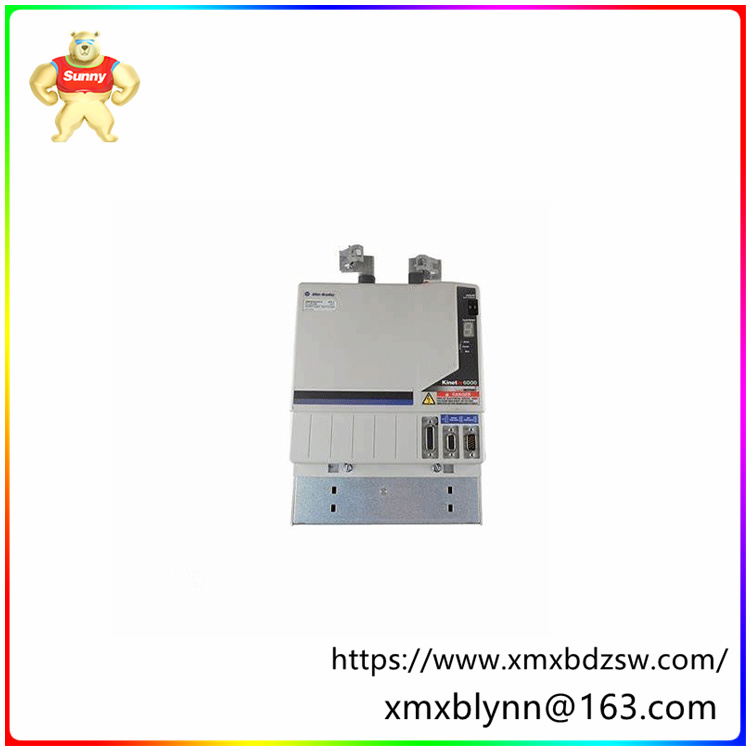

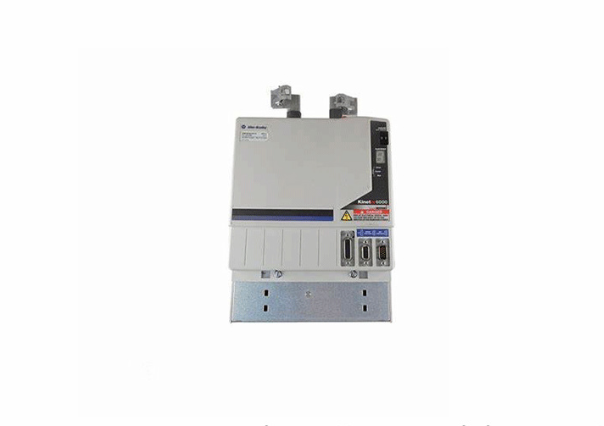

产品描述：集成轴模块

制造者：罗克韦尔自动化

输入电压范围：400/460伏交流电

逆变器部分输出电流：30 安培

转换器部分输出：28 千瓦

功耗：94-255 瓦

2094-BC04-M03-S 是 Kinetix 6000 驱动系统模块。该组件由 Allen-Bradley 制造，设计用作逆变器的集成轴模块。该模块的额定输出功率为 53 瓦（20%）、72% 负载（40%）、93% 负载（60%）、116% （80%）和 142 瓦（100%）。

该模块具有转换器和逆变器部分。变频器部分的输出额定功率为 28kW，逆变器的额定输出为 30 安培。该模块也称为增材制造电源模块。它随附一个接线插头连接器组，用于电机功率 （MP） 和电机/电阻制动功率 （BC）。该模块不提供连接器套件输入和输出接口、安全和辅助反馈信号，目录号为 2090-K6CK-D44M 和 2090-K6CK-D44S0，电机反馈目录号为 2090-K6CK-D15M。

使用此模块时，并不总是需要接地跳线设置。但是，未接地或高阻抗电源配置需要接地跳线设置。要设置接地跳线设置，请从电源轨上移除集成接入模块 （IAM），打开电源模块并将跳线位置修改到适当的位置。默认情况下，模块设置为接地位置，其中 P16 和 P17 短路，而未接地配置的 P18 和 P19 端子短路。

安装 2094-BC04-M03-S 时，首先安装集成轴模块，然后安装 IPIM、轴模块、分流模块和插槽填充模块。IAM 必须安装在电源轨的最左侧。其他模块位于 IAM 的右侧。

该模块旨在为您的驱动、电机和执行器应用提供 Kinetix 集成运动控制解决方案。

2094-BC04-M03-S 具有 200V 或 400V 级交流输入电源的安全关断功能。它包含一个逆变器和一个转换器部分。峰值增强功能在 400V 级（B 系列和 C 系列）2094-BC04-M03-S IAM 模块上可用。2094-BC04-M03-S 驱动器可以连接到接地跳线。

【英文介绍】

Brand: Alan Bradley

Product description: Integrated shaft module

Manufacturer: Rockwell Automation

Input voltage range: 400/460 volts AC

Inverter part output current: 30 amps

Converter part output: 28 kW

Power consumption: 94-255 watts

2094-BC04-M03-S is the Kinetix 6000 drive system module. The component, manufactured by Allen-Bradley, is designed to be used as an integrated shaft module for inverters. The module has a rated output power of 53 watts (20%), 72% load (40%), 93% load (60%), 116% (80%) and 142 watts (100%).

The module has a converter and an inverter section. The inverter part has an output rated power of 28kW and the inverter has a rated output of 30 amps. The module is also known as the additive manufacturing power module. It comes with a wiring plug connector set for motor power (MP) and motor/resistance braking power (BC). The module does not provide connector kit input and output interfaces, safety and auxiliary feedback signals with catalog numbers 2090-K6CK-D44M and 2090-K6CK-D44S0, and motor feedback catalog number 2090-K6CK-D15M.

When using this module, it is not always necessary to ground jumper Settings. However, ungrounded or high-impedance power supply configurations require ground jumper Settings. To set the ground jumper Settings, remove the Integrated Access Module (IAM) from the power rail, turn on the power module and change the jumper position to the appropriate position. By default, the module is set to the ground position, where P16 and P17 are short-circuited, while ungrounded terminals P18 and P19 are short-circuited.

When installing the 2094-BC04-M03-S, the integrated shaft module is installed first, followed by the IPIM, shaft module, shitter module, and slot filling module. The IAM must be installed on the leftmost side of the power rail. Other modules are on the right of IAM.

This module is designed to provide Kinetix integrated motion control solutions for your drive, motor and actuator applications.

The 2094-BC04-M03-S has the safety shutdown function of 200V or 400V AC input power supply. It contains an inverter and a converter section. Peak enhancement is available on 400V class (B Series and C Series) 2094-BC04-M03-S IAM modules. The 2094-BC04-M03-S driver can be connected to a ground jumper.

The power consumption (in watts) of the 2094-BC04-M03-S varies according to its percentage of power output at a given time. For example, the 2094-BC04-M03-S consumes 94 W (20% of the rated power output), while 255 W (100% of the driver's rated power output) consumes 255 W. The 2094-BC04-M03-S is available in 3 series (A, B, and C) with different peak current ratings. The A Series 2094-BC04-M03-S drivers have a peak current rating of 150%, while the B Series and C Series 2094-BC04-M03-S drivers have a peak current rating of 250%.
