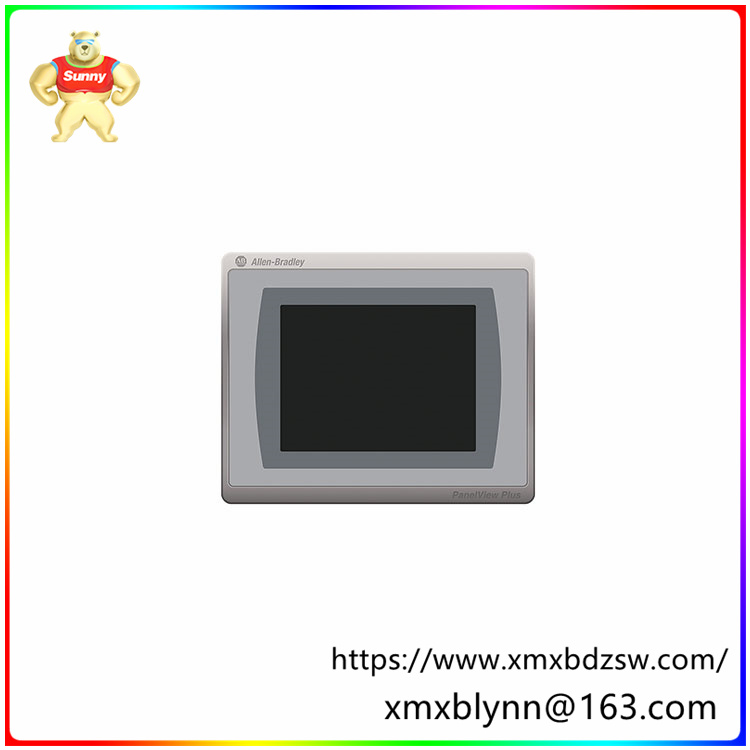

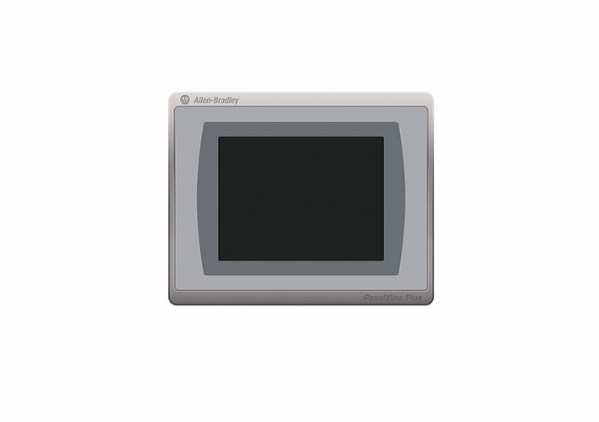

☆型号：2711P-T7C21D8S 触摸屏 具有 6.5 英寸彩色显示屏
【产品详情】
Allen-Bradley 2711P-T7C21D8S属于 PanelView Plus 7 操作终端。该操作终端具有 6.5 英寸彩色显示屏，可视面积为 132 x 99 mm，分辨率为 640 x 480 VGA，采用 18 位彩色图形，纵横比为 4：3。同一显示屏上安装了模拟电阻式触摸输入区域，允许操作员直接触摸相应的运行时对象，以启动控制、导航、数据修改等功能。这种嵌入式触摸界面可以以相当于 100 克的致动力驱动多达 100 万次。
Allen-Bradley 2711P-T7C21D8S 安装了电池供电的实时时钟 （RTC），在 25 °C （77 °F） 下，精度为每月 ±2 分钟，预期寿命至少为 4 年。它还配备了内部存储器，例如 512 MB 随机存取存储器 （RAM）、512 MB 存储和 80 MB 用于文件存储的用户存储器。此外，还可以安装外部 SD 卡和 USB 闪存驱动器以提供更高的存储内存。
2711P-T7C21D8S 由 18-30VDC 的外部电源供电，标称值为 24VDC。它的最大功耗为 50W。将此操作终端齐平安装到机柜时，请创建一个尺寸为 142 x 184 毫米（5.59 x 7.24 英寸）的面板切口。
与操作终端一起使用的合适外壳是防护等级为 NEMA 和 UL 12、13、4X 型（仅限室内使用）的电气面板，其防护等级也为 UL 分类的 IP54 或 IP66。
2711P-T7C21D8S 的工作电压范围为 18 至 30 伏直流电，在 1.46A 和 24 伏直流时的最大功耗为 35 瓦，在 47 至 63 赫兹导轨电源下的最大功耗为 85 至 265 伏交流电。其工作温度范围在 32 至 131 华氏度之间，相对湿度为 5% 至 95%，储存在 -13 至 158 华氏度的温度范围内。它在运行时耗散 15 瓦的最大热量，设计用于承受 15G 的运行冲击和 2G 的 57 至 600 赫兹运行振动。它采用 NEMA 4X、12 和 13 级外壳，并通过了 cUL-us、ATEX、CE、KCC 和 RoHS 认证。2711P-T7C21D8S 重约 0.85 千克（1.86 磅），净尺寸为 170 x 212 x 56.5 毫米（6.69 x 8.35 x 2.22 英寸）
【英文介绍】
Allen-Bradley 2711P-T7C21D8S belongs to the PanelView Plus 7 operating terminal. The operating terminal features a 6.5-inch color display with a viewing area of 132 x 99 mm, a resolution of 640 x 480 VGA, 18-bit color graphics, and an aspect ratio of 4:3. An analog resistive touch input area is installed on the same display, allowing the operator to directly touch the corresponding runtime object to initiate functions such as control, navigation, data modification, etc. This embedded touch interface can be driven up to 1 million times with the equivalent of 100 grams of actuating force.
The Allen-Bradley 2711P-T7C21D8S is fitted with a battery-powered real-time clock (RTC) with an accuracy of ±2 minutes per month at 25 °C (77 °F) and a life expectancy of at least 4 years. It also comes with internal memory, such as 512 MB of random access memory (RAM), 512 MB of storage and 80 MB of user memory for file storage. Additionally, external SD cards and USB flash drives can be installed to provide higher storage memory.
The 2711P-T7C21D8S is powered by an external power supply of 18-30VDC with a nominal value of 24VDC. It has a maximum power consumption of 50W. When mounting this operating terminal flush into the cabinet, create a panel notch measuring 142 x 184 mm (5.59 x 7.24 in).
Suitable housings for use with operating terminals are electrical panels with protection grades NEMA and UL Type 12, 13, 4X (indoor use only), which are also IP54 or IP66 in the UL classification.
The 2711P-T7C21D8S operates in A voltage range of 18 to 30 volts DC, with a maximum power consumption of 35 watts at 1.46A and 24 volts DC, and a maximum power consumption of 85 to 265 volts AC at a 47 to 63 Hertz guide power supply. It operates in a temperature range of 32 to 131 degrees Fahrenheit, has a relative humidity of 5 to 95 percent, and is stored in a temperature range of -13 to 158 degrees Fahrenheit. It dissipates a maximum of 15 watts of heat during operation and is designed to withstand 15 g of operating shock and 2G of 57 to 600 Hz operating vibration. It comes in NEMA grade 4X, 12 and 13 enclosures and is cUL-us, ATEX, CE, KCC and RoHS certified. The 2711P-T7C21D8S weighs approximately 0.85 kg (1.86 lb) and has a net size of 170 x 212 x 56.5 mm (6.69 x 8.35 x 2.22 in).
