1756-L73/B ControlLogix 处理器模块 可以实现本地 I/O 配置

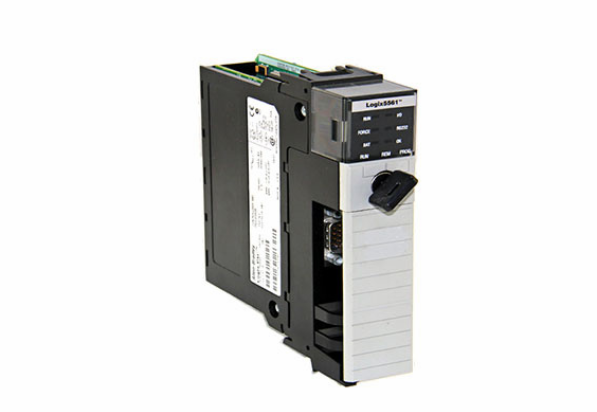

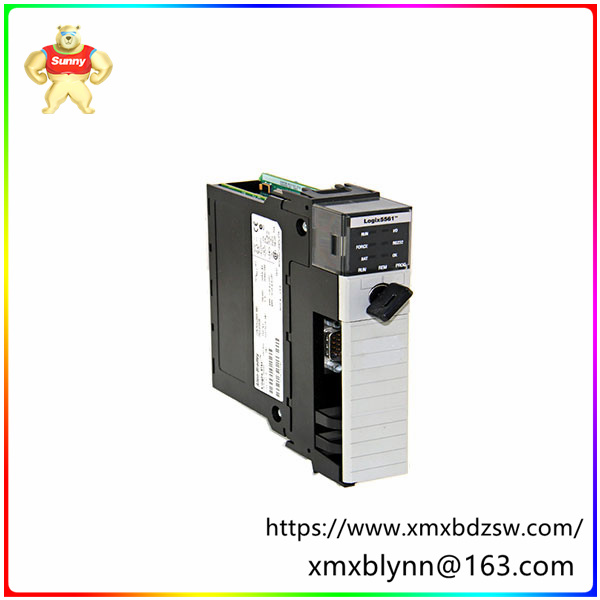

☆型号：1756-L73/B   ControlLogix 处理器模块   可以实现本地 I/O 配置

【产品详情】

Allen-Bradley 1756-L73/B 是一款 ControlLogix 处理器模块，属于 Logix 5570 产品类别。这是一款可编程自动化控制器 （PAC），兼容用于控制工厂或过程自动化应用中的大型应用。它支持单工配置和高可用性（冗余）控制器配置，以提高系统可用性。

1756-L73 能够连接 128,000 个输入和输出信号以及 4000 个模拟输入和输出信号。它可以实现本地 I/O 配置，其中 I/O 模块安装在安装控制器的同一机箱中，也可以是分布式 I/O 拓扑，其中扩展 I/O 安装在远离处理器的位置，并通过扩展通信总线提供 I/O。该控制器支持以太网 I/P、DeviceNet、ControlNet、Synchlink 以及传统通信协议，如 Data Highway Plus （DH+）、远程 I/O （RIO） 和第三方协议。它还可以配置为与网关和协议转换器通信。同样，该控制器与任何 Allen-Bradley 包含的合作伙伴 ControlLogix 模块兼容。

该控制器还具有集成运动功能，因为它支持 SERCOS 接口、模拟运动传感器和以太网 I/P 运动控制。对该控制器进行编程时，适用的编程语言包括继电器阶梯、结构化文本、功能块图和顺序功能图。

该控制器能够处理 32 个控制器任务，每个任务有 100 个程序，而事件任务接受所有事件触发器。该控制器配备 8MB 用户内存和 0.98 MB 的 I/O 内存。它还配备了储能技术，无需使用电池来保留易失性存储器的内容。

1756-L73/B 最多可使用 8 MB 用户内存和 0.98 MB 输入/输出内存。此外，它总共有 128,000 个数字 I/O 和 4000 个模拟 I/O。1.2V DC 时所需的电流消耗为 5 mA，5.1V DC 时需要 800 mA 电流消耗。1756-L73 具有 2.5 W 的功耗和 8.5 BTU/小时的散热。隔离电压在 30 V 下连续，基本绝缘，在 500V AC 下测试 60 秒。使用 USB 2.0，它可以在全速下达到 12 Mbps。它大约仅重 0.25 公斤，具有 1 槽宽度和开放式外壳。

该模块在 1756 机箱系列的任何插槽上都基于机箱。1756-L73 控制器的电源要求是标准的 1756 电源。它的接线类别是 3 个 USB 端口。1756-L73 控制器的工作温度为 0-60 度。摄氏度，其非工作温度为-40-85°。摄氏度。它可以运行的最高环境温度为 60°。摄氏度，5 - 95% 非冷凝相对湿度。其工作振动为 10 - 500 Hz 为 2 g，其工作冲击为 30 g 工作冲击，而其非工作冲击为 50 g。安装 SD 卡时，它可以达到 45 克。

【英文介绍】

The Allen-Bradley 1756-L73 is a ControlLogix processor module in the Logix 5570 product category. It is a programmable automation controller (PAC) that is compatible for controlling large applications in factory or process automation applications. It supports simplex configuration and high availability (redundant) controller configuration to improve system availability.

The 1756-L73 is capable of connecting 128,000 input and output signals and 4,000 analog input and output signals. It can be either a local I/O configuration, where the I/O module is installed in the same chassis where the controller is installed, or a distributed I/O topology, where the extended I/O is installed away from the processor and I/O is provided via an extended communication bus. The controller supports Ethernet I/P, DeviceNet, ControlNet, Synchlink, and traditional communication protocols such as Data Highway Plus (DH+), Remote I/O (RIO), and third-party protocols. It can also be configured to communicate with gateways and protocol converters. Again, the controller is compatible with any Allen-Bradley included partner ControlLogix module.

The controller also has integrated motion capabilities as it supports SERCOS interfaces, analog motion sensors, and Ethernet I/P motion control. When programming the controller, the applicable programming languages include relay ladder, structured text, function block diagram and sequential function diagram.

The controller is capable of handling 32 controller tasks, each with 100 programs, while the event task accepts all event triggers. The controller comes with 8MB of user memory and 0.98MB of I/O memory. It is also equipped with energy storage technology that does not require the use of batteries to retain the contents of volatile memory.

The 1756-L73 uses up to 8 MB of user memory and 0.98 MB of input/output memory. In addition, it has a total of 128,000 digital I/ OS and 4,000 analog I/ OS. The required current consumption is 5 mA at 1.2V DC and 800 mA at 5.1V DC. The 1756-L73 has a power consumption of 2.5 W and a heat dissipation of 8.5 BTU/ hour. The isolation voltage is continuous at 30 V, basically insulated, and tested at 500V AC for 60 seconds. With USB 2.0, it can reach 12 Mbps at full speed. It weighs only about 0.25 kg, has a 1 slot width and an open housing.

The module is chassis based on any slot in the 1756 chassis series. The power requirements for the 1756-L73 controller are the standard 1756 power supply. Its wiring category is 3 USB ports. The 1756-L73 controller operates at 0-60 degrees. Celsius, its non-operating temperature is -40-85°. Degrees Celsius. It can operate at a maximum ambient temperature of 60°. Degrees Celsius, 5-95% non-condensing relative humidity. Its working vibration is 10-500 Hz and 2 g, its working shock is 30 g working shock, and its non-working shock is 50 g. When the SD card is installed, it can reach 45 grams.
