1783-EMS08T 管理型以太网交换机 支持的输入电压范围为 12 至 48 伏直流电

☆型号：1783-EMS08T     管理型以太网交换机  支持的输入电压范围为 12 至 48 伏直流电

【产品详情】

品牌：艾伦-布拉德利

制造者：罗克韦尔自动化

产品类型：网管型以太网交换机

铜缆端口：8

光纤端口：1

输入电压：12 至 48 伏直流电

峰值功耗：5.8 瓦

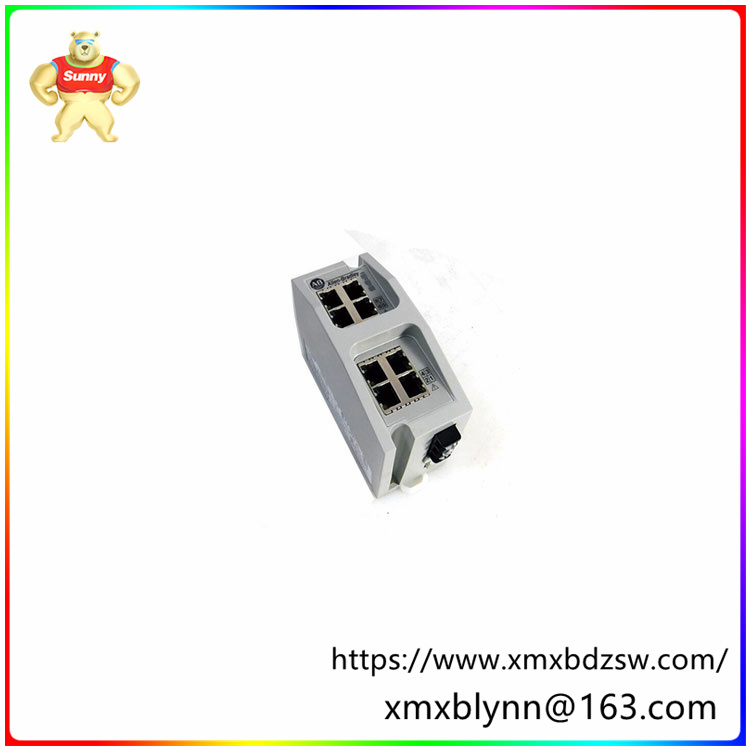

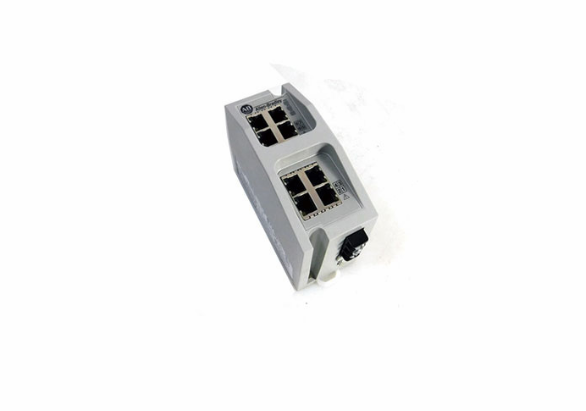

Allen-Bradley 1783-EMS08T 交换机是一款管理型以太网交换机。它带有八个额定 10/100 Mbps RJ45 端口和一个可选的光纤端口。交换机支持的SFP模块包括1783-SFP1GSX和1783-SFP1GLX模块。1783-EMS08T 交换机是 Stratix 6000 系列的一部分。1783-EMS08T 开关的额定功率输入为 250 毫安（24 伏直流电）。开关支持的输入电压范围为 12 至 48 伏直流电。1783-EMS08T 开关的峰值功耗为 5.8 瓦，在 60 摄氏度时的峰值散热为 24.6 BTU/小时。交换机支持的网络协议包括 TCP/IP、Ethernet/IP、Telnet、Http、DHCP、BOOTP、FTP、IGMP 和 SMTP 协议。1783-EMS08T 交换机上共有 16 个端口指示灯和 3 个状态指示灯。

1783-EMS08T 交换机上提供的以太网/IP 功能包括活动连接、带宽报警和端口控制功能。可用的交换机功能包括 VLAN、端口镜像、DHCP 服务器、IGMP 监听和 IGMP 查询功能。开关的最大浪涌电流电平为 2.2 安培。1783-EMS08T 交换机的工作温度范围和存储温度范围分别为 32 至 140 华氏度和 -40 至 185 华氏度。该开关对 ESD（静电放电）敏感。因此，在处理设备时必须遵守安全预防措施，包括佩戴接地腕带、触摸接地物体以释放静电、避免触摸电子元件，以及开关在不使用时应存放在防静电包装中。在危险环境中，只有在断电时才应连接接线。

该模块提供状态指示器，包括十六 （16） 个用于报告链路和活动的端口指示灯和三 （3） 个用于报告整个模块操作、模式诊断的状态指示器。该模块具有MAC ID管理、带宽报警、端口控制、链路状态、缩放带宽信息、连接活动等功能。

1783-EMS08T 支持扩展和安装 1 GB 光纤收发器或单外形可插拔接口，用于连接光纤介质，用于更快和抗噪声的通信网络。

对于以太网接口的接线，推荐使用符合 TIA 568-B.1 标准的 5e 类电缆或符合 ISO/IEC 24702 标准的 5 类电缆。对于电源连接，推荐的电线尺寸范围为 0.33...3.3 mm2 或 22...12 AWG，实心或绞合铜线，绝缘额定值为 75 °C 或 167 °F 或更高，最大绝缘为 1.2 mm 或 3/64 英寸。对于接地连接，推荐的电线是 3.3 mm2 或 12 AWG 实心或绞合铜线，绝缘等级为 75 °C 或 167 °F 或更高。将电线端接到设备的电源和接地端子时，所需的扭矩为 1.36 Nm 或 12 lb-inch。

【英文介绍】

Brand: Alan Bradley

Manufacturer: Rockwell Automation

Product type: NMS Ethernet switch

Copper cable port: 8

Optical fiber port: 1

Input voltage: 12 to 48 volts DC

Peak power consumption: 5.8W

The Allen-Bradley 1783-EMS08T switch is a managed Ethernet switch. It comes with eight rated 10/100 Mbps RJ45 ports and an optional fiber port. The SFP modules supported by the switch include the 1783-SFP1GSX and 1783-SFP1GLX modules. The 1783-EMS08T switch is part of the Stratix 6000 series. The 1783-EMS08T switch has a rated power input of 250 MA (24 volts DC). The switch supports an input voltage range of 12 to 48 volts DC. The 1783-EMS08T switch has a peak power consumption of 5.8 watts and a peak heat dissipation of 24.6 BTU/ hour at 60 degrees Celsius. The network protocols supported by the switch include TCP/IP, Ethernet/IP, Telnet, Http, DHCP, BOOTP, FTP, IGMP, and SMTP. The 1783-EMS08T switch has 16 port indicators and 3 status indicators.

Ethernet /IP capabilities available on the 1783-EMS08T switch include active connectivity, bandwidth alarm, and port control capabilities. The available switch functions include VLAN, port mirroring, DHCP server, IGMP listening, and IGMP query. The maximum surge current level of the switch is 2.2 amps. The operating and storage temperature ranges of the 1783-EMS08T switch are 32 to 140 degrees Fahrenheit and -40 to 185 degrees Fahrenheit, respectively. The switch is sensitive to ESD (electrostatic discharge). Therefore, safety precautions must be followed when handling the device, including wearing a grounding wrist strap, touching grounded objects to release static electricity, avoiding touching electronic components, and storing the switch in an ESD package when not in use. In hazardous environments, wiring should only be connected when power is off.

The module provides status indicators, including sixteen (16) port indicators for reporting link and activity and three (3) status indicators for reporting overall module operation and mode diagnosis. The module has the functions of MAC ID management, bandwidth alarm, port control, link status, scaling bandwidth information, connection activity, etc.

The 1783-EMS08T supports the expansion and installation of a 1 GB optical transceiver or a single form factor pluggable interface for connecting optical media for faster and noise-resistant communication networks.

For Ethernet interfaces, you are advised to use Class 5e cables that comply with TIA 568-B.1 or Class 5 cables that comply with ISO/IEC 24702. For power connections, the recommended wire size range is 0.33... 3.3 mm2 or 22... 12 AWG, solid or stranded copper wire with an insulation rating of 75 °C or 167 °F or higher with a maximum insulation of 1.2 mm or 3/64 inch. For ground connections, the recommended wire is 3.3 mm2 or 12 AWG solid or stranded copper wire with an insulation class of 75 °C or 167 °F or higher. When connecting the wire to the device's power and ground terminals, the required torque is 1.36 Nm or 12 lb-inch.
