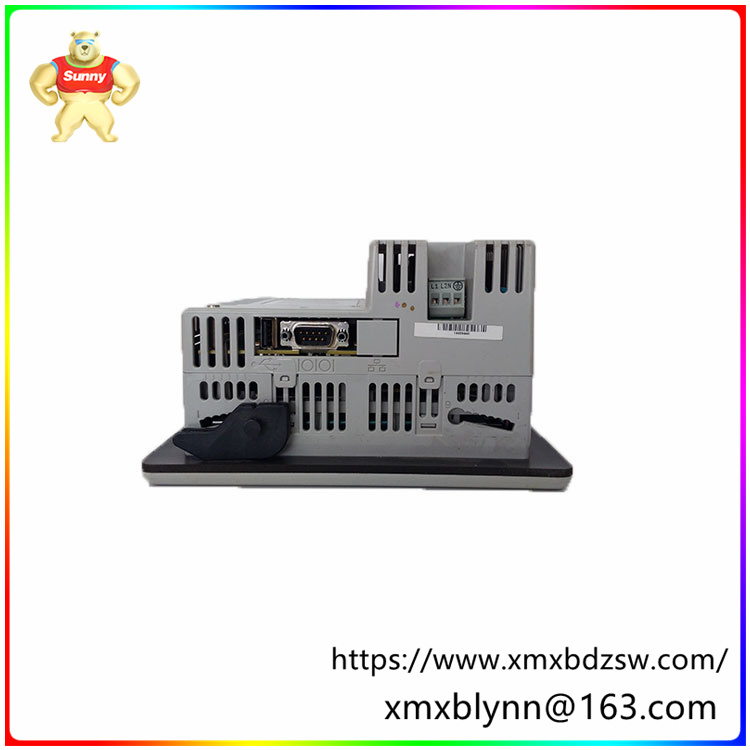

2711P-T6C5A 操作界面终端 实时系统时钟的备用电源来自集成电池

☆型号：2711P-T6C5A   操作界面终端   实时系统时钟的备用电源来自集成电池

【产品详情】

制造者：罗克韦尔自动化

品牌：艾伦-布拉德利

零件编号/目录号：2711P-T6C5A

系列 ：面板视图 Plus 600

模块类型：操作界面终端

输入类型：触摸屏

电源：120 伏交流电

通信 ：RS-232，USB 端口

显示 ：5.7 英寸彩色

  Allen-Bradley 2711P-T6C5A 终端是 Panelview Plus 600 系列操作界面终端，可控制工业机械系统和各种应用。它的控制方法是触摸屏，可以手动激活或使用经批准的手写笔激活。2711P-T6C5A操作界面终端的触摸屏也可以支持全彩图形，宽度为6英寸。

Allen-Bradley 2711P-T6C5A 终端是 PanelView Plus 6 系列工业终端的操作终端。2711P-T6C5A 端子上的触摸式彩色显示屏用于操作员输入。端子上的触摸技术是模拟电阻式（4 线）。触摸屏的额定值为 100 万次。5.5英寸彩色显示屏的技术是彩色有源矩阵TFT技术，具有4.5 x 3.4英寸的显示面积，320 x 240分辨率，支持18位彩色图形，亮度为440尼特。显示屏上的背光是白色LED，额定工作寿命为25,000小时，不可更换。关键数据的时间戳由板载实时时钟提供。实时系统时钟的备用电源来自集成电池，其工作寿命为 4 年。

该终端还包括 256 MB 的 RAM。系统上的非易失性存储器为 512 MB，其中大约 73 MB 可用于用户数据。如果需要额外的外部存储，也支持 USB 闪存驱动器和 SD 卡。2711P-T6C5A 端子上可用的通信接口包括 RS-232 和 USB 接口（1 个 USB 主机和 1 个设备端口）。2711P-T6C5A 端子使用交流电源供电。支持的输入电压范围为 100 至 240 伏交流电。终端通常消耗 20 VA，最大功耗可达 35 VA。2711P-T6C5A端子的重量约为0.594千克。2711P-T6C5A 端子的尺寸为 6.5 x 10.4 x 3.8 英寸。

【英文介绍】

Manufacturer: Rockwell Automation

Brand: Alan Bradley

Part Number/Catalog number: 2711P-T6C5A

Series: Panel view Plus 600

Module type: operation terminal

Input type: touch screen

Power supply: 120 volts AC

Communication: RS-232, USB port

Display: 5.7 "color

 The Allen-Bradley 2711P-T6C5A terminal is a Panelview Plus 600 series operator interface terminal that controls industrial machinery systems and a variety of applications. Its control method is a touch screen, which can be activated manually or using an approved stylus. The touch screen of the 2711P-T6C5A operating interface terminal can also support full-color graphics and is 6 inches wide.

The Allen-Bradley 2711P-T6C5A terminal is the operating terminal of the PanelView Plus 6 series industrial terminal. The touch color display on the 2711P-T6C5A terminal is used for operator input. The touch technology on the terminal is analog resistive (4-wire). The touch screen is rated 1 million times. The technology for the 5.5-inch color display is Color Active Matrix TFT technology, with a 4.5 x 3.4 inch display area, 320 x 240 resolution, support for 18-bit color graphics, and brightness of 440 nits. The backlight on the display is a white LED with a rated working life of 25,000 hours and is not replaceable. Time stamps for critical data are provided by the onboard real-time clock. The backup power for the real-time system clock comes from the integrated battery, which has a working life of 4 years.

The terminal also includes 256 MB of RAM. The non-volatile memory on the system is 512 MB, of which approximately 73 MB is available for user data. If additional external storage is required, USB flash drives and SD cards are also supported. Communication interfaces available on the 2711P-T6C5A terminal include RS-232 and USB interfaces (1 USB host and 1 device port). The 2711P-T6C5A terminal uses AC power supply. Supported input voltage ranges from 100 to 240 volts AC. The terminal typically consumes 20 VA, with a maximum power consumption of 35 VA. The 2711P-T6C5A terminal weighs approximately 0.594 kg. The 2711P-T6C5A terminals measure 6.5 x 10.4 x 3.8 inches.
