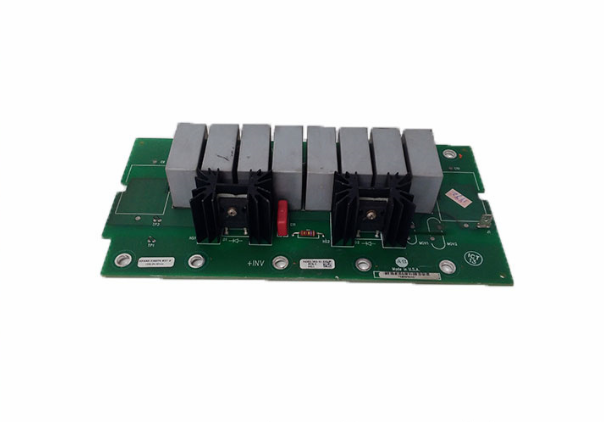

1336-SN-SP10A 74101-363-51 带缓冲器PCB的备件套件 具有短时间存储电压的电容器

☆型号：1336-SN-SP10A 74101-363-51  带缓冲器PCB的备件套件   具有短时间存储电压的电容器

【产品详情】

品牌:Allen-Bradley / 罗克韦尔自动化

系列:1336 PCB板

零件编号: 1336-SN-SP10A型

产品类型:带缓冲器PCB的备件套件

兼容性:1336 PLUS， PLUS II， 力和冲击力

型号：1336-SN-SP10A 74101-363-51

产品描述

变频缓冲卡

1336系列

575 伏

额定功率 150-250 HP

8继电器输出

1336-SN-SP10A 用于 Allen-Bradley 的 1336 可调频率交流变频器。它特别兼容 1336 Plus、Plus II、Impact 和 Force 驱动器。本产品是属于 2 级装配组件的备件项目。每个驱动器使用三 （3） 个缓冲器套件。

此缓冲器印刷电路板 （PCB） 用于具有 E 帧或输出功率为 150、200、250 和 X300HP 的驱动器。缓冲板安装在驱动器的主机箱内部，位于转换器托架中桥式散热器的一侧。

更换此主板时，必须从驱动器上断开电源，最好锁定在访问之外。即使驱动器的电源已断开，也不要立即触摸组件，因为它具有短时间存储电压的电容器。在继续操作之前，请测量 TB1 接线端子上的 +DC 和 -DC，这些接线端子位于驱动器的逆变器托架中。此外，请遵守静电放电预防措施，以防止损坏其他固态设备。

要卸载缓冲板，请卸下端接在 +06 和 -16 刺入连接处的引线。根据这些电线的来源正确标记这些电线。同时卸载位于 81、82 和 83 端子的引线。相应地标记电线。从四 （4） 个塑料支架上卸下驱动器。根据四 （4） 个支架孔对齐电路板并将标记的引线端接到适当的刺入连接处，从而安装新电路板。

【英文介绍】

Brand :Allen-Bradley/Rockwell Automation

Series :1336 PCB board

Part Number: 1336-SN-SP10A type

Product Type: Spare parts kit with buffer PCB

Compatibility :1336 PLUS, PLUS II, Force and impact

Model: 1336-SN-SP10A 74101-363-51

Product description

Variable frequency buffer card

1336 Series

575 volts

Rated power 150-250 HP

8 Relay output

1336-SN-SP10A for Allen-Bradley's 1336 adjustable frequency AC inverter. It is particularly compatible with the 1336 Plus, Plus II, Impact, and Force drives. This product is a spare parts item belonging to Level 2 assembly components. Each drive uses three (3) buffer kits.

This buffer printed circuit board (PCB) is used for drives with E-frames or output power of 150, 200, 250, and X300HP. The buffer plate is mounted inside the driver's main case, on the side of the bridge radiator in the converter bay.

When replacing this motherboard, the power must be disconnected from the drive, preferably locked out of access. Even if the power supply to the driver has been disconnected, do not touch the component immediately because it has a capacitor that stores voltage for a short time. Before proceeding, measure the +DC and -DC on the TB1 terminals, which are located in the driver's inverter bay. Also, follow ESD precautions to prevent damage to other solid-state devices.

To unload the buffer plate, remove the leads terminating at the +06 and -16 piercing joints. Label these wires correctly according to their source. Simultaneously unload the leads at terminals 81, 82, and 83. Mark the wires accordingly. Remove the drive from the four (4) plastic brackets. Install the new board by aligning the board according to the four (4) bracket holes and connecting the marked lead ends to the appropriate piercing connections.
