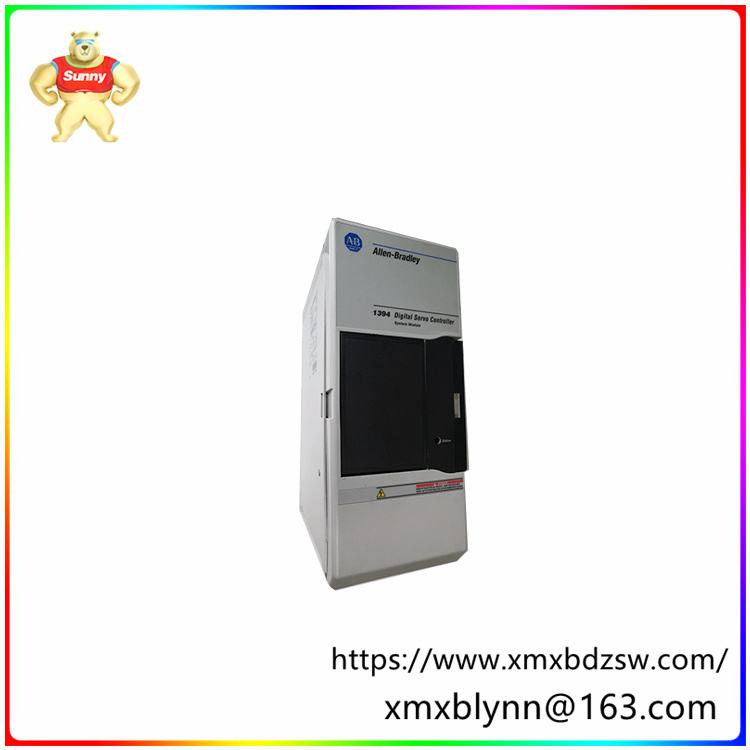

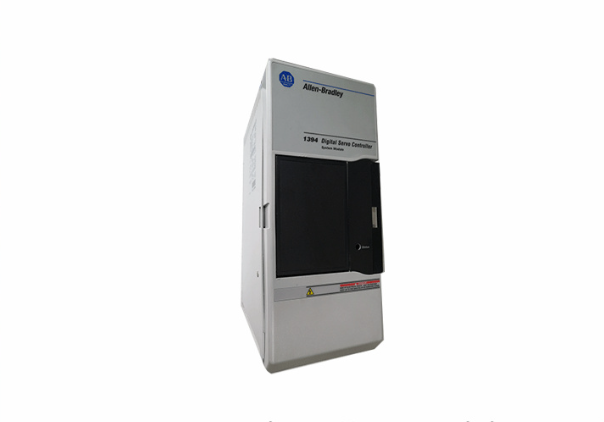

1394C-SJT05-D 驱动系统模块 支持多个轴的工业运动控制系统

☆型号：1394C-SJT05-D   驱动系统模块    支持多个轴的工业运动控制系统

【产品详情】

1394C-SJT05-D是一款模块化、多轴运动控制驱动系统模块，其额定功率为5kW。该模块是Allen-Bradley/Rockwell Automation伺服控制器产品线的一部分，旨在支持多个轴的工业运动控制系统。它使用逻辑电源、分流电源和输入电源来运行，并具有用于这些电源的电源连接器。此外，该模块还具备继电器输出、模拟输出和离散输入，以及电机/辅助反馈连接器等其他连接器。

该模块独特的设计使其可用作集成的运动控制和驱动系统（GMC），也被称为SERCOS伺服驱动系统或模拟伺服驱动系统。它提供对360伏和480伏三相输入电源的直接线路连接，无需变压器。同时，它还提供带有光纤数字网络接口的数字伺服驱动系统，支持自动调整和启动提示的访问。

在功能方面，1394C-SJT05-D模块具有SCANport接口，提供数字故障和诊断实用程序作为标准功能，包括电流监控器、热过载检测和反馈信号监控器。它还提供了系统和轴模块的LED状态，以及仅用于GMC系统的轴链接、运动板和RIO的状态LED。

在技术和耐用性方面，1394C-SJT05-D模块配备了高度集成的表面贴装电路和DSP辅助处理，并改进了SERCOS以及轴模块上的接地端接。其系统都是数字调节的速度和电流回路补偿，能适应广泛的系统惯性。此外，该模块还耐较高温度，具有较长的使用寿命。

在应用领域，伺服驱动技术作为数控机床、工业机器人及其它产业机械控制的关键技术之一，在国内外普遍受到关注。而1394C-SJT05-D模块作为其中的一部分，其高效、简单、可靠的特点使其在自动化设备中得到了广泛应用。

总的来说，1394C-SJT05-D模块是一款功能全面、性能稳定的伺服控制器模块，适用于各种需要高精度和多轴运动控制的工业自动化场合。

【英文介绍】

The 1394C-SJT05-D is a modular, multi-axis motion control drive system module with a power rating of 5kW. The module is part of the Allen-Bradley/Rockwell Automation servo controller product line and is designed to support industrial motion control systems with multiple axes. It operates using logic power supplies, shunt power supplies, and input power supplies, and has power connectors for these power supplies. In addition, the module has relay outputs, analog outputs and discrete inputs, as well as other connectors such as motor/auxiliary feedback connectors.

The module's unique design allows it to be used as an integrated motion control and drive system (GMC), also known as SERCOS servo drive System or analog servo drive system. It provides direct line connection to 360 volt and 480 volt three-phase input power without transformer. At the same time, it also provides a digital servo drive system with a fiber optic digital network interface, which supports automatic adjustment and start-up prompt access.

In terms of functionality, the 1394C-SJT05-D module has a SCANport interface that provides digital fault and diagnostic utilities as standard features, including a current monitor, thermal overload detection and feedback signal monitor. It also provides LED status for the system and shaft modules, as well as status leds for shaft links, motion boards, and RIOs only for GMC systems.

In terms of technology and durability, the 1394C-SJT05-D module is equipped with a highly integrated surface mount circuit and DSP assisted processing, with improved ground terminations on SERCOS as well as shaft modules. The systems are digitally adjusted for speed and current loop compensation and can accommodate a wide range of system inertia. In addition, the module is resistant to higher temperatures and has a long service life.

In the field of application, servo drive technology, as one of the key technologies of CNC machine tools, industrial robots and other industrial machinery control, has been widely concerned at home and abroad. As a part of 1394C-SJT05-D module, its high efficiency, simple and reliable characteristics make it widely used in automation equipment.

Overall, the 1394C-SJT05-D module is a full-featured and stable servo controller module suitable for a variety of industrial automation applications requiring high precision and multi-axis motion control.
