IC697RCM711RR 冗余通信 单插槽模块

☆型号：IC697RCM711RR 冗余通信  单插槽模块

【产品详情】

产品描述

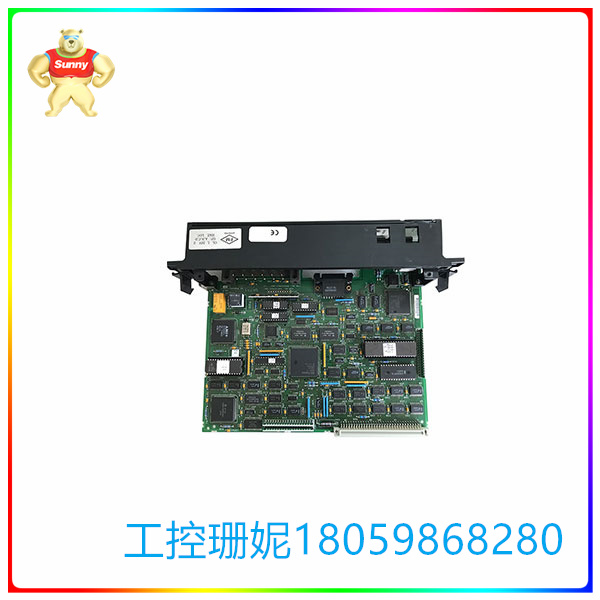

该IC697RCM711是专为 GE Fanuc 90-70 系列设计的冗余通信模块。IC697RCM711是一个带有五个 LED 的单插槽模块，可发出电路板和系统的状态。该模块旨在为从活动单元到备份单元的同步消息提供路径。IC697RCM711模块也是两个单元之间共享的 I/O 数据传输的路由。有两个连接器，一个位于模块顶部，另一个位于底部。顶部连接器用于连接上游 BTM 或 BRM，不使用底部连接器。IC697RCM711 模块需要 0.7 安培的电流，并使用 MS-DOS 软件进行配置。该模块具有高速并行总线接口，支持构建的热备用和热备用 CPU 冗余系统配置。

IC697RCM711在插槽 2-9 之间使用单个插槽。上述 LED 标记为 Board OK、Local Ready、Local Active、Remote Ready 和 Remote Active。IC697RCM模块还配备了一个按钮，允许用户手动从主用单元切换到备用单元，从而允许在系统在线时对以前的有源单元进行维护。一旦进行切换，系统将不允许在 10 秒内进行另一个切换。安装IC697RCM711模块时，用户应参考《热备用CPU冗余用户指南》或《增强型用户指南》。安装前需要关闭机架上的电源。安装并连接适当的电缆后，可以重新打开电源。

技术规格

模块类型： 冗余通信

插槽数量： 1 个（单插槽）

# 的 LED： 5

连接到： MS-DOS的

串口： 2 （1 未使用）

电流要求： 0.7 安培

☆型号：IC697RCM711RR 冗余通信  单插槽模块

【英文介绍】

Product description

The IC697RCM711 is a redundant communication module designed for the GE Fanuc 90-70 series. The IC697RCM711 is a single-slot module with five leds that emit the status of the board and system. This module is designed to provide a path for synchronous messages from the active unit to the backup unit. The IC697RCM711 module is also a route for I/O data transmission shared between the two units. There are two connectors, one at the top of the module and the other at the bottom. The top connector is used to connect the upstream BTM or BRM, and the bottom connector is not used. The IC697RCM711 module requires 0.7 amps of current and is configured using MS-DOS software. The module has a high-speed parallel bus interface and supports the configuration of constructed hot standby and hot standby CPU redundancy systems.

IC697RCM711 Uses a single slot between slots 2 and 9. The above leds are labeled Board OK, Local Ready, Local Active, Remote Ready, and Remote Active. The IC697RCM module is also equipped with a button that allows the user to manually switch from the primary unit to the standby unit, allowing maintenance of the previously active unit while the system is online. Once a switch is made, the system will not allow another switch to be made within 10 seconds. When installing the IC697RCM711 module, refer to the Hot Standby CPU Redundancy User Guide or Enhanced User Guide. Power off the rack before installation. After installing and connecting the appropriate cables, you can turn the power back on.

Technical specification

Module type: Redundant communication

Number of slots: 1 (single slot)

# LED: 5

Connect to: MS-DOS

Serial port: 2 (1 unused)

Current requirement: 0.7 amp
