1756-IF4FXOF2F 模拟组合I/O模块 显示模块运行状况和运行状态

☆型号：1756-IF4FXOF2F 模拟组合I/O模块 显示模块运行状况和运行状态

【产品详情】

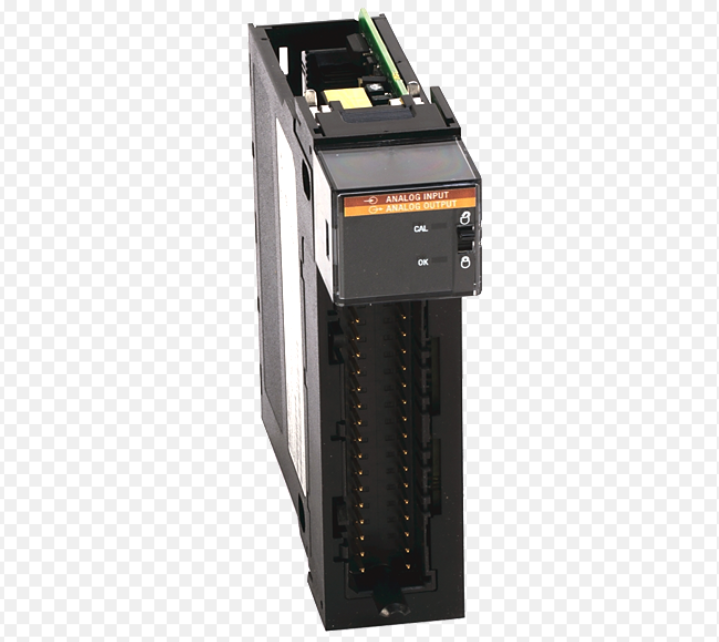

Allen-Bradley 1756-IF4FXOF2F是一款模拟组合I/O模块。该模块属于 ControlLogix 系统，该系统与 1756 ControlLogix 机箱兼容，需要 1756-TBS6H 或 1756-TBCH 可拆卸接线端子外壳 （RTB）。该模块具有 4 个高速亚毫秒差分输入和 2 个高速电压或电流输出。该模块有一个显示屏，显示模块运行状况和运行状态，例如校准模式。1756-IF4FXOF2F 的输入范围为 +/-10 伏、0 至 10 伏、0 至 5 伏和 0 至 20 毫安，当模块超过这些范围时，会显示超量程指示。过压保护电压为 30 伏直流电，电流为 8 伏交流/直流电。其开路检测是 1 秒内的正满量程读数。

该模块的输出范围为 +/-10 伏，0 至 20 毫安，并具有短路保护，电子电流限制为 21 毫安或更小。它还具有 24 伏直流电的过压保护和开路检测，但仅限于电流输出（请注意，输出必须设置为大于 0.1 毫安）。1756-IF4FXOF2F 的背板额定电压和电流为 375 毫安（5.1 伏直流电）和 100 毫安（24 伏直流电），模拟输入和输出的额定电压和电流为 -10 至 10 伏和 4 至 20 毫安。该模块的功耗为 4.3 瓦，电压耗散为 4.3 瓦，电流耗散为 4.7 瓦。电压和电流的热耗散分别为 14.66 BTU/小时和 16.02 BTU/小时。它在 5.1 伏时的电流消耗为 375 毫安，在 24 伏时为 100 毫安。它还具有 300 分钟扫描时间的更新周期，并具有亚毫秒级通道扫描和跨多个模块的同步采样功能。

Allen-Bradley 1756-IF4FXOF2F 是一款 ControlLogix 高速模拟组合模块。该模块具有四 （4） 个 4 个高速亚毫秒差分输入，兼容接收 10V、0 至 10V、0 至 5V 和 0 至 20 mA ±信号范围。它为每个模拟输入通道集成了超量程和欠量程指示。它还配备了两 （2） 个高速电压或电流，输出范围为 ± 10V 和 0 至 20 mA。

该模块的输入通道通过逐次逼近法转换接收到的模拟信号，转换分辨率为 14 位（±10.5V）和 12 位（21 mA）。它的可重复性为 ±1 最低有效位 （LSB），需要 12 个月的校准间隔。模拟输入适用于测量模拟过程变量，如流量、液位、压力、温度、粘度、pH值、浊度、速度和许多其他过程变量。

☆型号：1756-IF4FXOF2F 模拟组合I/O模块 显示模块运行状况和运行状态

【英文介绍】

The Allen-Bradley 1756-IF4FXOF2F is an analog composite I/O module. The module belongs to the ControlLogix system, which is compatible with the 1756 ControlLogix chassis and requires a 1756-TBS6H or 1756-TBCH detachable terminal housing (RTB). The module has 4 high-speed submillisecond differential inputs and 2 high-speed voltage or current outputs. The module has a display that shows the module health and operating status, such as calibration mode. The 1756-IF4FXOF2F has input ranges of +/-10 volts, 0 to 10 volts, 0 to 5 volts, and 0 to 20 MA, and displays an overrange indication when the module exceeds these ranges. The overvoltage protection voltage is 30 volts DC and the current is 8 volts AC/DC. Its open circuit detection is a positive full scale reading within 1 second.

The module has an output range of +/-10 volts, 0 to 20 mA, with short circuit protection and electronic current limitation of 21 MA or less. It also has overvoltage protection and open circuit detection for 24 volts DC, but only for current output (note that the output must be set to greater than 0.1 mA). The backplane of the 1756-IF4FXOF2F is rated at 375 mA (5.1 volts DC) and 100 MA (24 volts DC), with analog inputs and outputs rated at -10 to 10 volts and 4 to 20 mA. The module has a power consumption of 4.3 watts, a voltage dissipation of 4.3 watts, and a current dissipation of 4.7 watts. The heat dissipation of voltage and current is 14.66 BTU/ hour and 16.02 BTU/ hour, respectively. It has a current consumption of 375 mah at 5.1 volts and 100 mah at 24 volts. It also has an update cycle with a 300-minute scan time and features sub-millisecond channel scanning and synchronous sampling across multiple modules.

The Allen-Bradley 1756-IF4FXOF2F is a ControlLogix high-speed analog combination module. The module features four (4) high-speed sub-millisecond differential inputs compatible to receive 10V, 0 to 10V, 0 to 5V, and 0 to 20 mA ± signal ranges. It integrates overrange and underrange indications for each analog input channel. It is also equipped with two (2) high-speed voltages or currents with an output range of ± 10V and 0 to 20 mA.

The input channel of the module converts the received analog signal by successive approximation with a resolution of 14 bits (±10.5V) and 12 bits (21 mA). It has a repeatability of ±1 least significant bit (LSB) and requires a calibration interval of 12 months. Analog inputs are suitable for measuring simulated process variables such as flow, level, pressure, temperature, viscosity, pH, turbidity, velocity, and many other process variables.

☆型号：1756-IF4FXOF2F 模拟组合I/O模块 显示模块运行状况和运行状态
