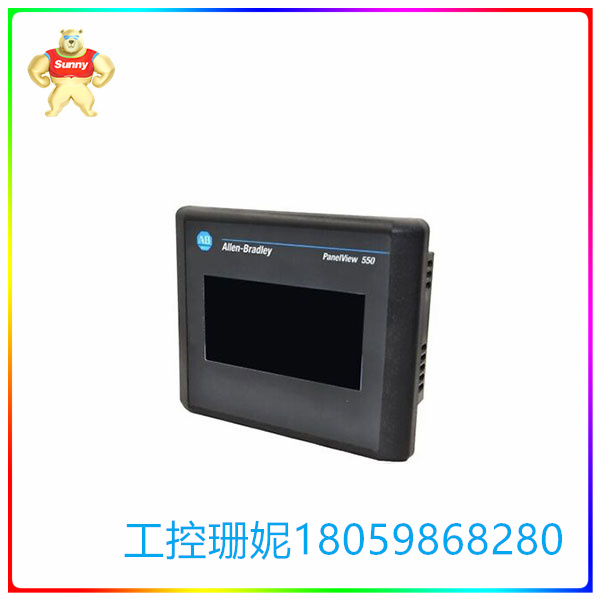

2711-T5A16L1 人机界面设备 具有5.5英寸的单色显示屏

☆型号：2711-T5A16L1 人机界面设备 具有5.5英寸的单色显示屏

【产品详情】

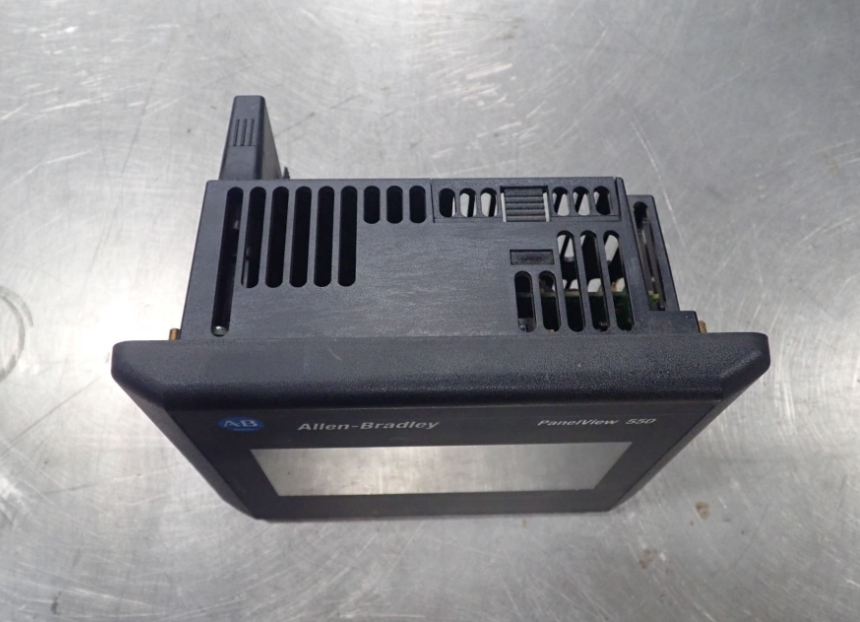

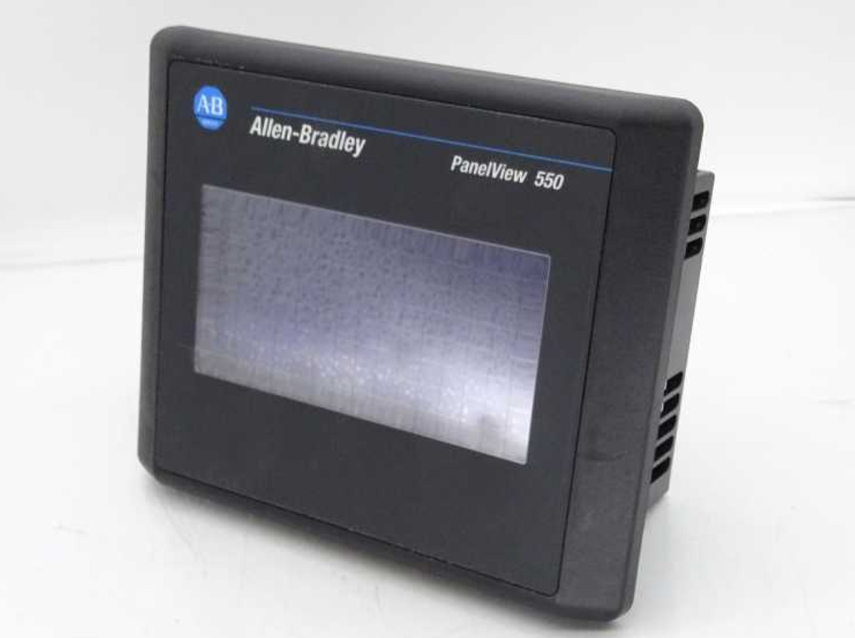

2711-T5A16L1是一款Panel 550系列人机界面设备。它采用蓝色单色LCD触摸屏设计，具有5.5英寸的单色显示屏。2711-T5A16L1 的工作环境温度代码为 300 摄氏度，不应安装在大气气体点火温度低于 300 摄氏度的环境中。2711-T5A16L1符合EMC指令89/336/EEC和电磁兼容性以及修订指令。该模块需要保存在有助于确保其内部电路受到保护的外壳中。在安装过程中，请务必验证机柜内是否有足够的空间，因为足够的通风对于该模块非常重要。

2711-T5A16L1 在正确安装在具有同等额定值的面板或外壳中时，符合 NEMA 12/13 型和 4X 型额定值。2711-T5A16L1 的分辨率为 256 x 128，是 PanelView 550 系列的一部分。它配备了一个 24 伏直流电源，具有约 170 KB 的应用程序运行时内部存储器。2711-T5A16L1 支持触摸屏图形输入。LCD 还通过使用卤素灯来照明，当它达到极限时可以更换。照明灯可以打开和关闭，也支持定时模式。为确保网络连接，2711-T5A16L1 具有一个 RS-232 （DF1） 通信端口，该端口可连接到任何 MicroLogix、任何 PLC 或任何 SLC 控制器上使用的 DF1 端口。安装后，DF1 屏幕允许用户查看和编辑 DF1 PanelView 终端的 DF1 或全双工通信设置。该装置还具有一个与打印设备连接的 RS-232 打印机端口。

2711-T5A16L1的主要预期功能是为工厂操作员和机器用户提供从工厂车间区域的中心位置监视和控制工厂。这是通过集成的 5.5 英寸显示屏实现的，该显示屏支持单色图形。屏幕的显示区域为 256 x 128 像素，可视区域为 120 x 60 毫米（4.75 x 2.38 英寸）。它具有背光，使用寿命为 100,000 小时 LED 背光寿命。此外，通过嵌入式 128 个触摸单元引入控制和过程交互，该触摸单元设计用于操作多达 100 万次驱动。它允许直接启动运行时对象，以实现对系统所需的控制、修改和导航命令。

☆型号：2711-T5A16L1 人机界面设备 具有5.5英寸的单色显示屏

【英文介绍】

2711-T5A16L1 is a Panel 550 series human-machine interface device. It features a blue monochrome LCD touch screen design with a 5.5-inch monochrome display. The 2711-T5A16L1 has an operating ambient temperature code of 300 degrees Celsius and should not be installed in an environment where the atmospheric gas ignition temperature is below 300 degrees Celsius. 2711-T5A16L1 complies with EMC Directive 89/336/EEC and Electromagnetic Compatibility and Amendment Directives. The module needs to be kept in a housing that helps ensure that its internal circuitry is protected. During installation, be sure to verify that there is enough space in the cabinet, as adequate ventilation is very important for this module.

2711-T5A16L1 meets NEMA Type 12/13 and Type 4X ratings when properly installed in a panel or housing with equivalent ratings. The 2711-T5A16L1 has a resolution of 256 x 128 and is part of the PanelView 550 series. It is equipped with a 24-volt DC power supply with approximately 170 KB of internal memory for application runtime. 2711-T5A16L1 Supports graphical input on the touch screen. The LCD is also illuminated by the use of halogen lamps, which can be replaced when it reaches its limit. The lights can be turned on and off, and a timing mode is also supported. To ensure network connectivity, the 2711-T5A16L1 has an RS-232 (DF1) communication port that can be connected to the DF1 port used on any MicroLogix, any PLC or any SLC controller. Once installed, the DF1 screen allows users to view and edit the DF1 or full-duplex communication Settings for the DF1 PanelView terminal. The unit also has an RS-232 printer port connected to the printing device.

The primary intended function of the 2711-T5A16L1 is to provide plant operators and machine users with the ability to monitor and control the plant from a central location in the plant floor area. This is made possible by an integrated 5.5-inch display that supports monochrome graphics. The display area of the screen is 256 x 128 pixels and the viewing area is 120 x 60 mm (4.75 x 2.38 inches). It has a backlight and a service life of 100,000 hours of LED backlight. In addition, control and process interaction are introduced through an embedded 128 touch units designed to operate up to 1 million drives. It allows runtime objects to be directly launched to implement the control, modification, and navigation commands required for the system.
