2711P-T12C4A6 触摸式操作人机界面 过程可视化和控制

☆型号：2711P-T12C4A6 触摸式操作人机界面 过程可视化和控制

【产品详情】

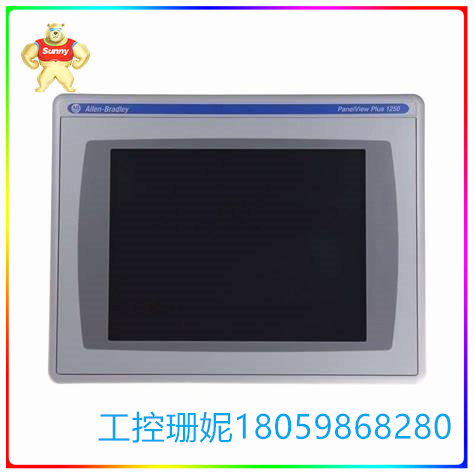

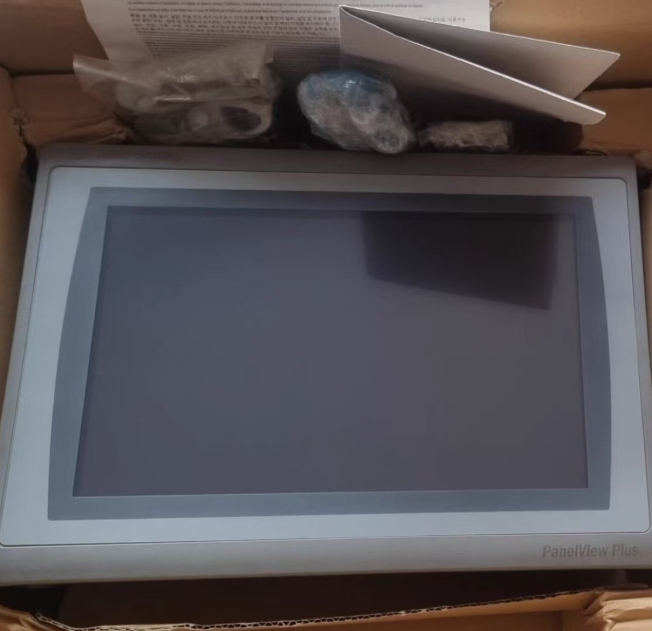

Allen-Bradley 2711P-T12C4A6 是一款触摸式操作人机界面 （HMI） 设备，兼容安装在不同行业的各种工业应用中。该电子设备是 bulletin 2711P PanelView Plus 6 操作终端产品系列的一部分，通常安装在工厂车间，可对所连接的机器或过程进行集中的过程可视化和控制。

该终端随定制设计的应用程序一起下载，该应用程序通过控制界面表示系统的测量和控制点，使用户可以输入必要的控制操作。2711P-T12C4A6 配备 12.1 英寸彩色显示屏，分辨率为 800 x 600 像素，可视区域为 246 x 184 毫米（9.7 x 7.2 英寸）。该屏幕具有可调节的对比度和亮度，可提供更清晰的视图并最大限度地利用背光。该屏幕还承载了模拟电阻式触摸屏界面，额定驱动率为 100 万 @ 操作力为 10-110 g。 该终端预装了一个逻辑模块。

该逻辑模块提供 128 MB RAM 和 128 MB 非易失性存储器。

2711P-T12C4A6 通过嵌入式 RS232 接口与合作伙伴的自动化设备进行通信，该接口支持短距离点对点通信，以及用于长距离多节点通信的以太网通信端口。

AC 供电的 Allen-Bradley 2711P-T12C4A6 PanelView Plus 1250 触摸屏终端主机配备 128 MB 闪存和 128 MB RAM，以及内置以太网和 RS-232 端口。在此基础端子上发现一个模拟触摸屏，该触摸屏是一个 18 位有源矩阵薄膜晶体管屏幕，尺寸为 12.1 英寸。此屏幕的总显示面积为 9.7 x 7.2 英寸，分辨率为 800 x 600。它还配备了可更换的背光，平均寿命为 50,000 小时，亮度为 300 尼特。2711P-T12C4A6 终端还内置了一个实时时钟，该时钟由电池供电，用于对关键数据进行时间戳。它使用 x86 英特尔赛扬处理器，总线速度为 650 MHz，并配有一个 CompactFlash 插槽和用于键盘和鼠标的 1 个 USB 端口。

☆型号：2711P-T12C4A6 触摸式操作人机界面 过程可视化和控制

【英文介绍】

The Allen-Bradley 2711P-T12C4A6 is a touch-based operating human machine interface (HMI) device that is compatible for installation in a wide range of industrial applications in different industries. The electronics, part of the bulletin 2711P PanelView Plus 6 operating terminal product family, are typically installed on the factory floor and allow centralized process visualization and control of connected machines or processes.

The terminal is downloaded with a custom-designed application that represents the system's measurement and control points through a control interface, allowing the user to enter the necessary control actions. The 2711P-T12C4A6 features a 12.1-inch color display with a resolution of 800 x 600 pixels and a viewing area of 246 x 184 mm (9.7 x 7.2 inches). The screen has adjustable contrast and brightness to provide a sharper view and maximize the use of backlight. The screen also hosts an analog resistive touch screen interface with a rated drive rate of 1 million @ operating force of 10-110 g. The terminal is preinstalled with a logic module.

The logic module provides 128 MB of RAM and 128 MB of non-volatile memory.

The 2711P-T12C4A6 communicates with partners' automation equipment through an embedded RS232 interface that supports short-range point-to-point communication, as well as Ethernet communication ports for long-distance multi-node communication.

The AC-powered Allen-Bradley 2711P-T12C4A6 PanelView Plus 1250 touchscreen terminal host is equipped with 128 MB flash memory and 128 MB RAM, as well as built-in Ethernet and RS-232 ports. An analog touch screen is found on this base terminal, which is an 18-bit active matrix thin film transistor screen with a size of 12.1 inches. This screen has a total display area of 9.7 x 7.2 inches and a resolution of 800 x 600. It is also equipped with a replaceable backlight with an average life of 50,000 hours and a brightness of 300 nits. The 2711P-T12C4A6 terminal also has a built-in real-time clock that is battery-powered for time-stamping critical data. It uses an x86 Intel Celeron processor, has a bus speed of 650 MHz, and is equipped with a CompactFlash slot and 1 USB port for keyboard and mouse.

☆型号：2711P-T12C4A6 触摸式操作人机界面 过程可视化和控制
