☆型号：2711-B6C10 操作终端 5 英寸彩色图形显示屏
【产品详情】

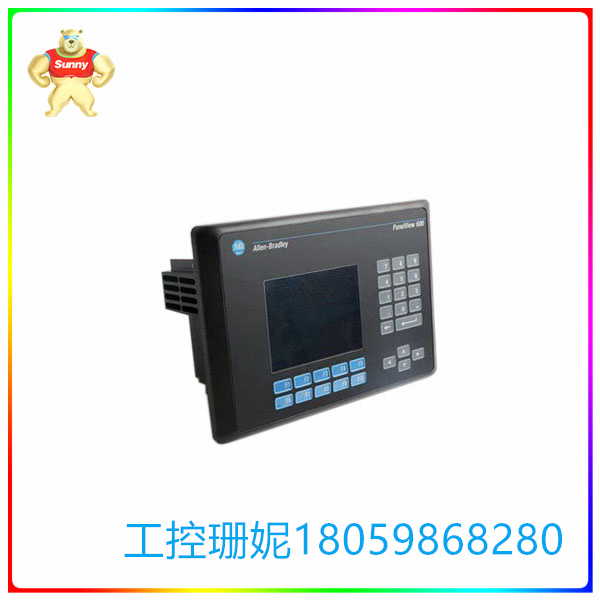

已停产的 Allen Bradley Panelview 600 2711-B6C10 是一款操作终端，使用户能够与机器进行交互。此人机界面 （HMI） 具有 5 英寸彩色图形显示屏。
操作员可以使用嵌入式键盘和触摸屏来控制 HMI 以输入信息和数据。本机使用 85-264 VAC 电源供电，内部存储器分配为 240 KB 非易失性存储器。本机具有内部背光，可更换为部件号 2711-NL5。大约运输重量和尺寸分别为 6 磅和 14 x 11 x 8 英寸。

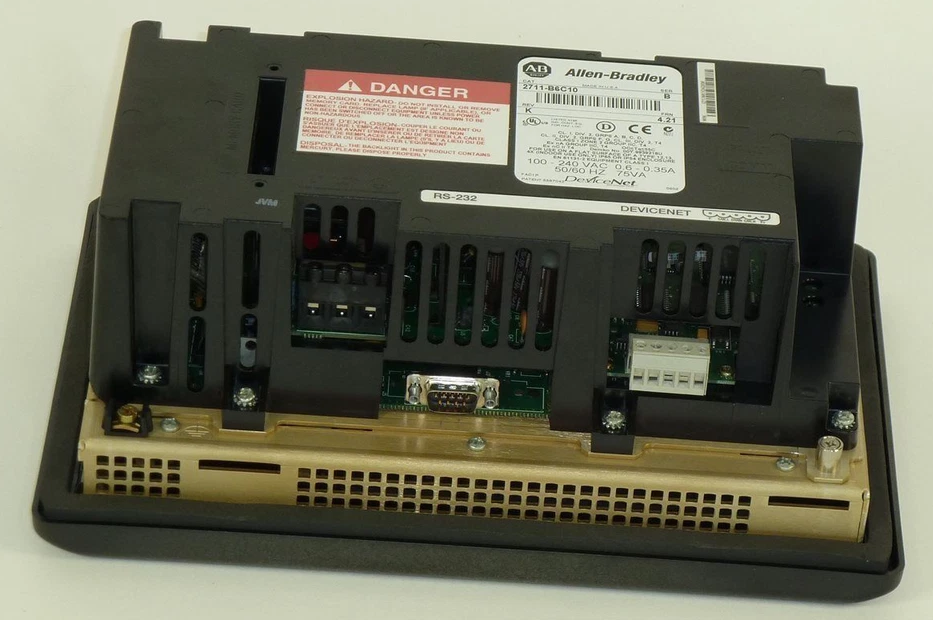

嵌入式 DeviceNet 通信接口使终端能够使用服务器显式、客户端显式、I/O 或仅侦听消息传递，在 DeviceNet 链路（125k、250k 或 500k 波特）上进行设备级连接和通信。兼容的器件包括 Allen-Bradley 的 SLC、ControlLogix 控制器和其他第三方控制器。DeviceNet 网络支持状态变化、循环、轮询和点对点消息传递，以实现更高效的通信。DeviceNet 仅侦听功能减少了向 PanelView 提供信息所需的网络流量和逻辑量。DeviceNet 网络上的故障排除功能得到增强。终端与网络上的一系列设备进行通信。PanelView 标准操作界面已通过 DeviceNet 认证。这种合规性保证了与其他兼容设备的兼容性。
2711-B6C10 由外部电源供电，范围为 85-264 VAC，最大功耗为 60VA。它配备了一个组合输入接口，即触摸和键盘接口。键盘组件安装在 PanelView 的前面板上，由不锈钢圆顶膜制成，设计用于操作多达 200 万次驱动。键盘组件有十 （10） 个功能键，从 F1 到 F10、方向箭头、数字键盘和确认按钮。此外，触摸屏界面由 128 个单元组成，设计用于多达 100 万次印刷。
☆型号：2711-B6C10 操作终端 5 英寸彩色图形显示屏
【英文介绍】
The discontinued Allen Bradley Panelview 600 2711-B6C10 was an operating terminal that enabled users to interact with the machine. This human machine interface (HMI) features a 5-inch color graphic display.
Operators can use an embedded keyboard and touch screen to control the HMI to enter information and data. The unit is powered by an 85-264 VAC power supply, with internal memory allocated to 240 KB of non-volatile memory. This unit has an internal backlight and can be replaced with part number 2711-NL5. Approximate shipping weight and dimensions are 6 pounds and 14 x 11 x 8 inches, respectively.
The embedded DeviceNet communication interface enables terminals to connect and communicate at the device level over DeviceNet links (125k, 250k, or 500k baud) using server explicit, client explicit, I/O, or just listening for message passing. Compatible devices include Allen-Bradley SLC, ControlLogix controllers, and other third-party controllers. The DeviceNet network supports state changes, loops, polling, and point-to-point messaging for more efficient communication. DeviceNet's listening only capability reduces the amount of network traffic and logic required to provide information to PanelView. Troubleshooting on the DeviceNet network has been enhanced. The terminal communicates with a range of devices on the network. The standard operation interface of PanelView has been authenticated by DeviceNet. This compliance guarantees compatibility with other compatible devices.
The 2711-B6C10 is powered by an external power source and ranges from 85-264 VAC with a maximum power consumption of 60VA. It is equipped with a combined input interface, namely a touch and keyboard interface. The keyboard assembly, mounted on the front panel of the PanelView, is made of stainless steel dome membrane and is designed to operate up to 2 million drives. The keyboard assembly has ten (10) function keys, from F1 to F10, directional arrows, numeric keypad, and confirm buttons. In addition, the touchscreen interface consists of 128 units and is designed for up to 1 million prints.
