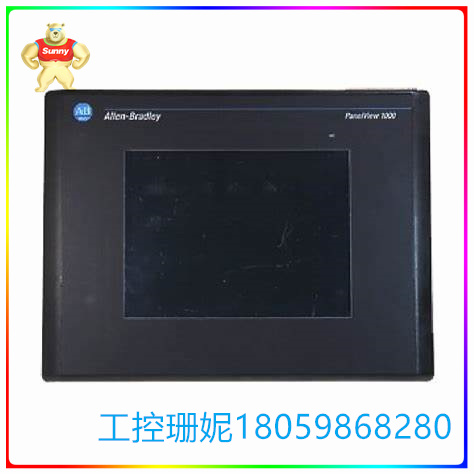

☆型号：2711-T10C20L1 操作终端 具有 10.1 英寸彩色显示屏
【产品详情】
Allen-Bradley 2711-T10C20L1 是一款 PanelView Standard 操作终端，具有 10.1 英寸彩色显示屏、触摸操作界面、内置以太网通信端口和 RS232 打印机通信接口。该操作终端是一种电子设备，专为许多工业应用而设计，兼容各种行业，如水和废水、采矿、制药、制造、石油和天然气、汽车等兼容应用领域。
2711-T10C20L1 由 18-32VDC 的外部电源电压范围和 24VDC 的标称电源电压供电。它的额定功耗最大为 24 W （1.0A @ 24V DC）。
该操作终端具有 1008 KB 的嵌入式内存大小，用于存储已配置的 PanelView 应用程序，并提供运行时内存的分配。它设计用于安装在 NEMA 12/13 型、4X（仅限室内使用）IP54、IP65 外壳中，带有集成状态指示灯，例如 COMM（绿色）和 FAULT（RED）LED。
它有一个集成的库，允许创建自定义符号以及从提供的图形库中导入标准对象。
按照模块每侧 51 毫米或 2.0 英寸的安装间隙安装 2711-T10C20L1，以确保足够的空气流通，并在安装存储卡、功能键图例插件等其他组件时提供工作空间。
☆型号：2711-T10C20L1 操作终端 具有 10.1 英寸彩色显示屏
【英文介绍】
The Allen-Bradley 2711-T10C20L1 is a PanelView Standard operating terminal with a 10.1-inch color display, touch operation interface, built-in Ethernet communication port, and RS232 printer communication interface. The operating terminal is an electronic device designed for many industrial applications and is compatible with a variety of industries such as water and wastewater, mining, pharmaceutical, manufacturing, oil and gas, automotive and other compatible application areas.
The 2711-T10C20L1 is powered by an external supply voltage range of 18-32VDC and a nominal supply voltage of 24VDC. It is rated up to 24 W (1.0A@24V DC).
The operating terminal has an embedded memory size of 1008 KB for storing configured PanelView applications and provides allocation of runtime memory. It is designed to be installed in NEMA Model 12/13, 4X (indoor use only) IP54, IP65 housing with integrated status indicators such as COMM (green) and FAULT (RED) leds.
It has an integrated library that allows you to create custom symbols as well as import standard objects from the provided graphics library.
The 2711-T10C20L1 is installed with a 51 mm or 2.0 inch mounting gap on each side of the module to ensure adequate air circulation and provide work space while other components such as memory cards and function key legend plug-ins are installed.
