2098-IPD-020 智能定位驱动器 交流输入

☆型号：2098-IPD-020 智能定位驱动器 交流输入

【产品详情】

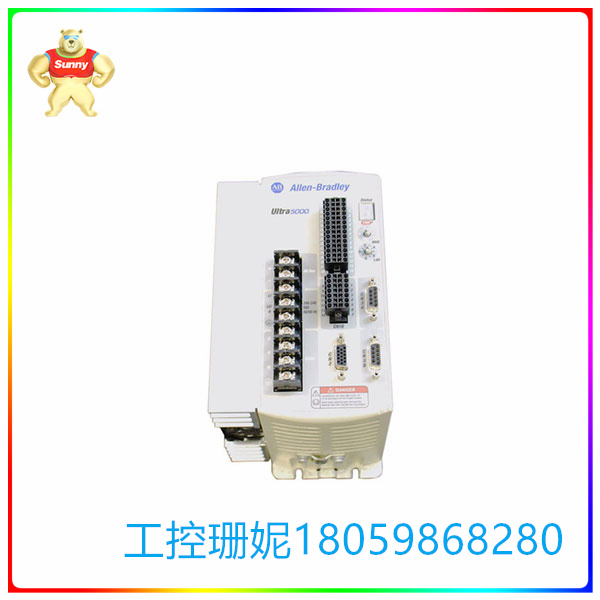

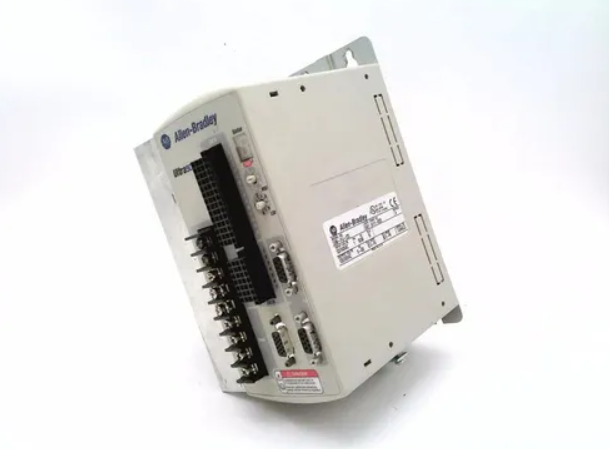

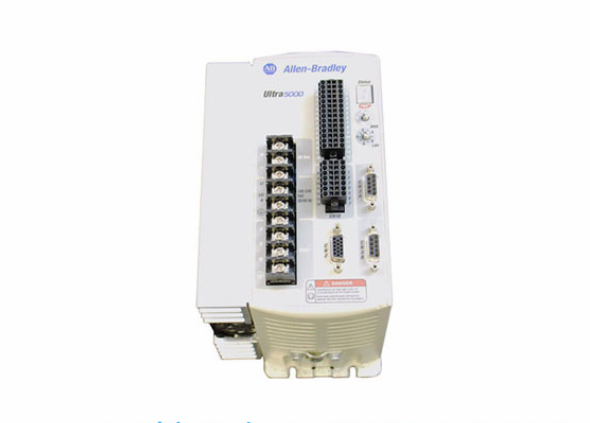

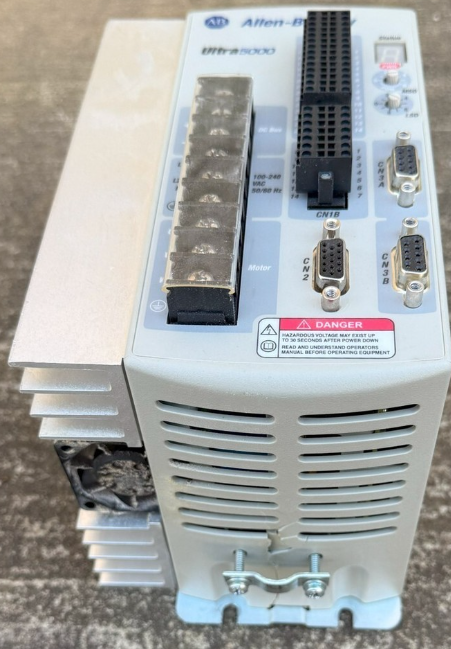

Allen-Bradley 2098-IPD-020 是一款 Ultra 5000 智能定位驱动器。该驱动器用于驱动定位精度高的伺服电机。该驱动器的交流输入电压要求为 100-240Vrms，1 相工作，输入频率为 47-63 Hz。在115VAC输入时输出功率为1.0kW，在230VAC输入时输出功率为2.0kW。此外，该驱动器的输出电流为 30A 输出峰值电流和 10A 连续输出电流。

安装此智能定位驱动器时，必须考虑几个因素。该驱动器被归类为控制设备，必须安装在符合IEC60529要求的外壳内。它必须安装在一个外壳内，该外壳应提供平坦、刚性和垂直的表面，该表面由限制冲击组件制成，并防止工业应用中常见的颗粒和污染物进入。此外，必须保持不超过 55°C （131° F） 的环境温度。安装适当的气候控制设备，例如尺寸合适的风扇或加热器，以保持所需的温度。还必须满足安装间隙，以确保适当的空气流通和足够的工作和维修空间。所需的安装间隙为 12.7 毫米或 0.5 英寸。侧面间隙和 50.8 毫米或 2.0 英寸。顶部和底部间隙。

Allen-Bradley 2098-IPD-020 具有单相 100-240V 交流输入电压、18 A rms 标称输入电流和 47 - 63 Hz 交流输入频率。它具有 10A 的连续输出电流和 30A 的输出峰值电流（零峰值）。在 230V 交流输入下，它具有 2 kW 的连续功率输出和 51 焦耳的能量吸收能力。2098-IPD-020 智能定位驱动器随附一本安装手册（出版物 2098-IN001）、一把螺丝刀、两个 I/O 连接器插头和一个透明塑料端子排盖。塑料盖可以安装在电源端子条上，以提供物理屏障和额外的保护。可插拔弹簧夹 28 针 CN1A 连接器用于数字 I/O，而 14 针 CN1B 连接器用于辅助编码器和模拟 I/O 信号连接。

230V AC 2098-IPD-020 伺服驱动器配有 8 个通用数字输出，其中 7 个是晶体管输出，外加一个带常开触点的继电器输出。需要注意的是，这些晶体管输出没有过载保护。在一个组中，这些可以配置为吸电流（高电平有效）或电流源（低电平有效）。其调试和诊断工具旨在优化系统性能并提高生产力。

☆型号：2098-IPD-020 智能定位驱动器 交流输入

【英文介绍】

The Allen-Bradley 2098-IPD-020 is an Ultra 5000 smart positioning driver. The driver is used to drive servo motors with high positioning accuracy. The AC input voltage of the driver is required to be 100-240Vrms, 1 phase operation, and the input frequency is 47-63 Hz. The output power is 1.0kW at 115VAC input and 2.0kW at 230VAC input. In addition, the output current of the driver is 30A peak output current and 10A continuous output current.

Several factors must be considered when installing this smart positioning drive. The drive is classified as a control device and must be installed in an IEC60529 compliant housing. It must be installed in a housing that provides a flat, rigid, and vertical surface made of shock limiting components and preventing the entry of particles and contaminants common in industrial applications. In addition, an ambient temperature of no more than 55°C (131° F) must be maintained. Install appropriate climate control equipment, such as a properly sized fan or heater, to maintain the desired temperature. Installation gaps must also be met to ensure proper air circulation and sufficient working and servicing space. The required installation clearance is 12.7 mm or 0.5 inch. Side clearance and 50.8 mm or 2.0 inches. Top and bottom clearance.

Allen-Bradley 2098-IPD-020 has A single-phase 100-240V AC input voltage, 18 A rms nominal input current, and 47-63 Hz AC input frequency. It has a continuous output current of 10A and a peak output current of 30A (zero peak). At 230V AC input, it has a continuous power output of 2 kW and an energy absorption capacity of 51 joules. The 2098-IPD-020 Smart Positioning driver comes with an installation manual (Publication 2098-IN001), a screwdriver, two I/O connector plugs, and a clear plastic terminal block cover. Plastic covers can be mounted on the power terminal strip to provide a physical barrier and additional protection. The pluggable spring-clip 28-pin CN1A connector is used for digital I/O, while the 14-pin CN1B connector is used for auxiliary encoder and analog I/O signal connections.

The 230V AC 2098-IPD-020 servo driver is equipped with eight universal digital outputs, seven of which are transistor outputs, plus a relay output with normally open contacts. It should be noted that these transistor outputs have no overload protection. In a group, these can be configured as either a current absorber (active at high levels) or a current source (active at low levels). Its debugging and diagnostic tools are designed to optimize system performance and increase productivity.
