1763-L16AWA 可编程控制器 以太网通信端口

☆型号：1763-L16AWA  可编程控制器 以太网通信端口

【产品详情】

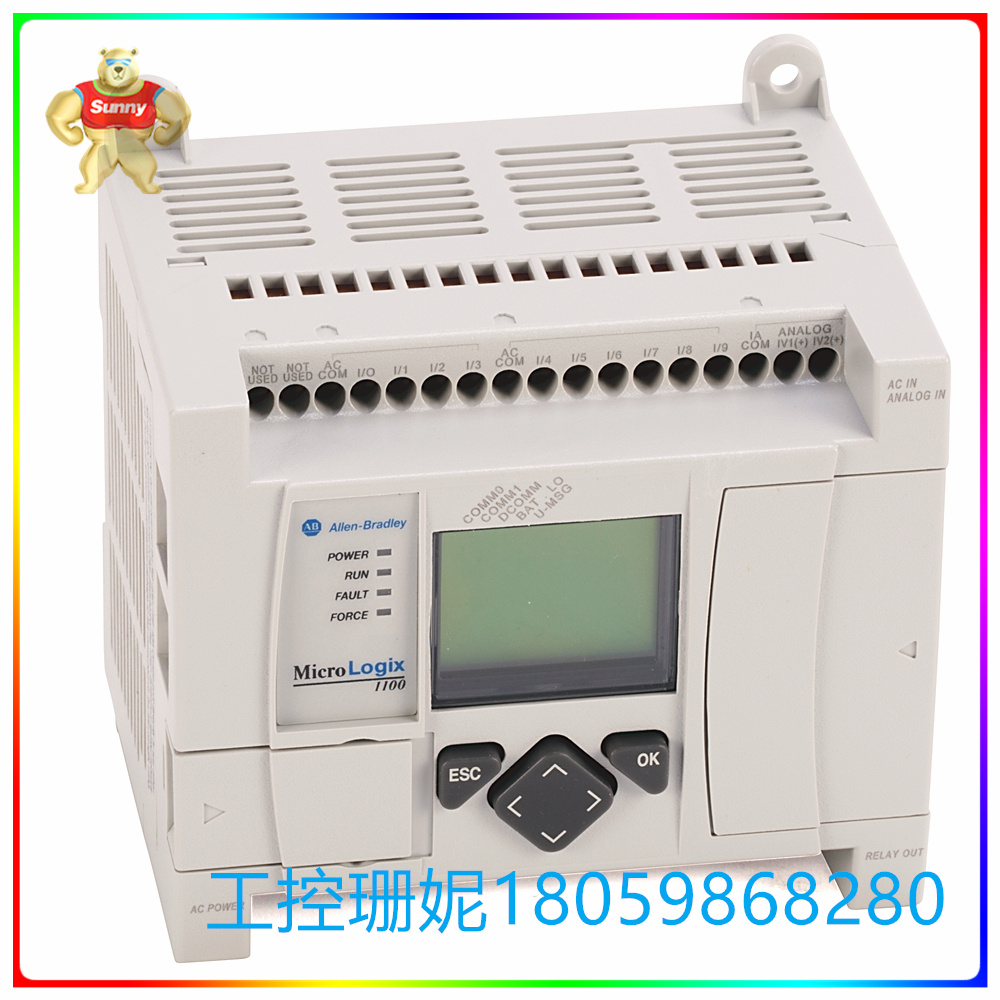

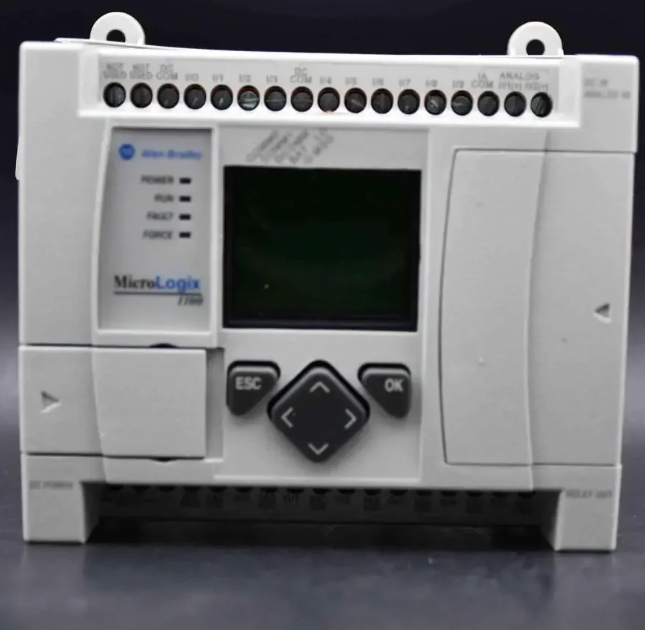

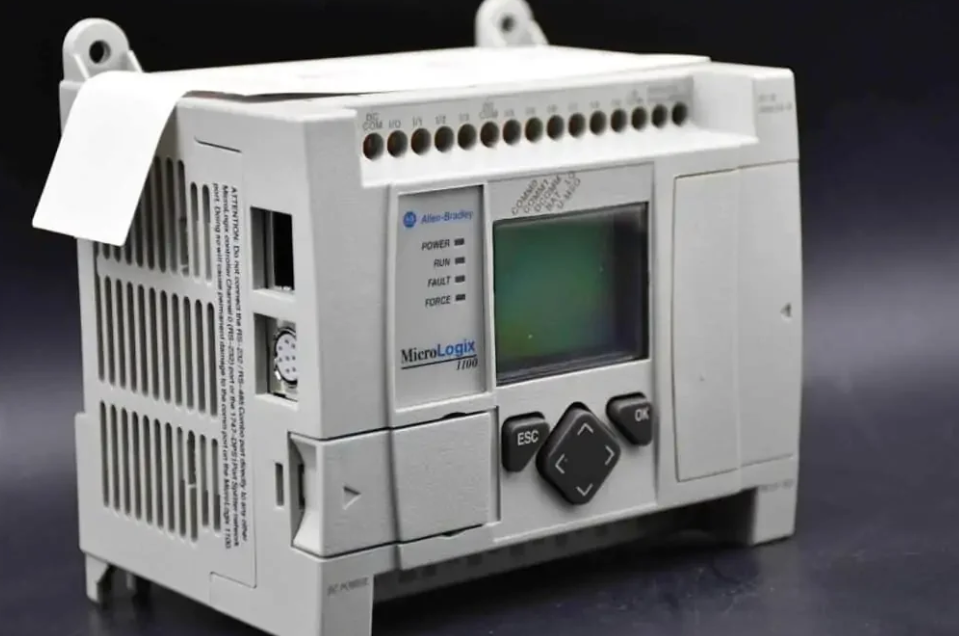

Allen-Bradley 1763-L16AWA 是 Bulletin 1763 MicroLogix 1100 可编程控制器系列的一部分。该控制器具有集成的 RS232 和以太网通信端口。1763-L16AWA 的 EtherNet/IP 端口提供高速连接，并能够从任何可用的以太网节点进行访问、编程和监控。其他值得注意的功能包括内置 LCD 显示屏、隔离式 RS-232/485 通信端口和嵌入式 Web 服务器。

1763-L16AWA 可编程控制器需要 120 至 240 伏交流电的输入电压。它的功耗为46VA。该控制器具有集成的十 （10） 个 120 伏交流数字输入和两 （2） 个 0 - 10 VDC 模拟电压输入。它还具有六 （6） 个独立隔离的继电器输出通道。连接到 1763-L16AWA 的 RS-232/RS-485 组合端口的设备应是浮动的或参考控制器接地。Bulletin 1763-L16AWA 是一款紧凑型可编程逻辑控制器解决方案，可处理各种任务。它非常适合物料搬运、包装、一般工业机械、印刷、食品和饮料搬运、制药、水和废水解决方案、离合器/制动器控制和位置控制等典型应用。大多数应用需要将 1763-L16AWA 控制器安装在工业外壳中，以减少环境暴露和电气干扰的影响。

1763-L16AWA 是一款 MicroLogix 1100 可编程逻辑控制器 （PLC）。该控制器是 Allen-Bradley 制造的紧凑型控制器，用于安装在小规模应用中。该控制器具有十二 （12） 个 120VAC 离散输入、两 （2） 个 0-10VDC 模拟输入和六 （6） 个继电器输出。

分立式输入的工作电压范围为 79 ...132V 交流，关断状态电压范围为 0-20VAC。它在 79V 交流时的最小导通电流为 5.0 mA;120V 交流时标称值为 12 mA，132V 交流时最大值为 16.0 mA。 模拟输入接受 0-10VDC 电压信号，可用于接收来自变送器、传感器、转换器和其他设备的信号。

☆型号：1763-L16AWA  可编程控制器 以太网通信端口

【英文介绍】

The Allen-Bradley 1763-L16AWA is part of the Bulletin 1763 MicroLogix 1100 programmable controller family. The controller has integrated RS232 and Ethernet communication ports. The 1763-L16AWA's EtherNet/IP port provides high-speed connectivity and the ability to access, program, and monitor from any available Ethernet node. Other notable features include a built-in LCD display, isolated RS-232/485 communication port, and an embedded Web server.

The 1763-L16AWA programmable controller requires an input voltage of 120 to 240 volts AC. Its power consumption is 46VA. The controller has integrated ten (10) 120 volt AC digital inputs and two (2) 0-10 VDC analog voltage inputs. It also has six (6) independently isolated relay output channels. Devices connected to the combined RS-232/RS-485 ports of the 1763-L16AWA should be floating or grounded with reference controllers. Bulletin 1763-L16AWA is a compact programmable logic controller solution that can handle a variety of tasks. It is ideal for typical applications such as material handling, packaging, general industrial machinery, printing, food and beverage handling, pharmaceuticals, water and wastewater solutions, clutch/brake control and position control. Most applications require the 1763-L16AWA controller to be installed in an industrial housing to reduce the impact of environmental exposure and electrical interference.

The 1763-L16AWA is a MicroLogix 1100 programmable logic controller (PLC). The controller is a compact controller manufactured by Allen-Bradley for installation in small-scale applications. The controller has twelve (12) 120VAC discrete inputs, two (2) 0-10VDC analog inputs, and six (6) relay outputs.

Separate input operating voltage range of 79... 132V AC, off state voltage range 0-20VAC. Its minimum conducting current at 79V AC is 5.0 mA; The nominal value is 12 mA at 120V AC and the maximum value is 16.0 mA at 132V AC. Analog inputs accept 0-10VDC voltage signals and can be used to receive signals from transmitters, sensors, converters and other devices.

☆型号：1763-L16AWA  可编程控制器 以太网通信端口
