MPL-B320P-SJ72AA 低惯量伺服电机 实现快速加速

☆型号：MPL-B320P-SJ72AA 低惯量伺服电机 实现快速加速

【产品详情】

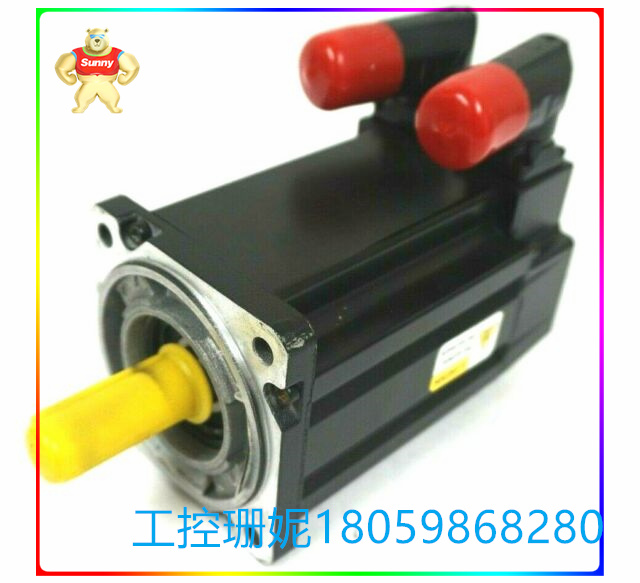

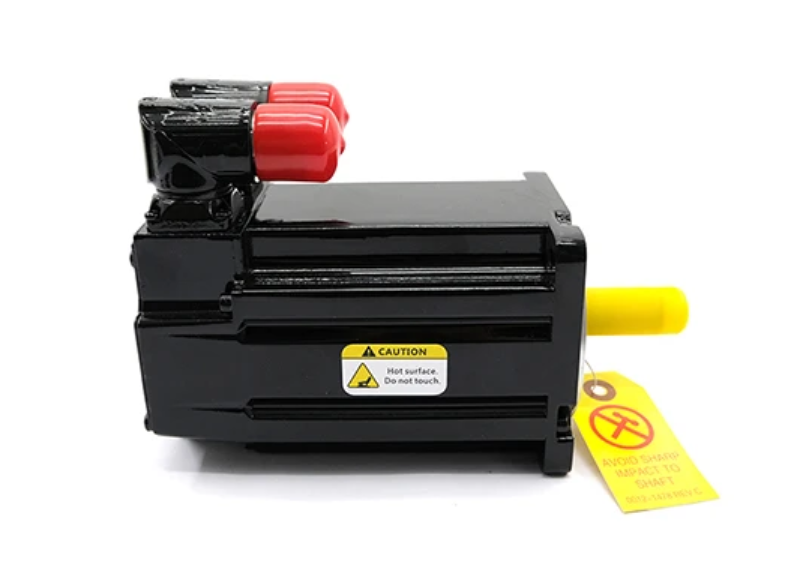

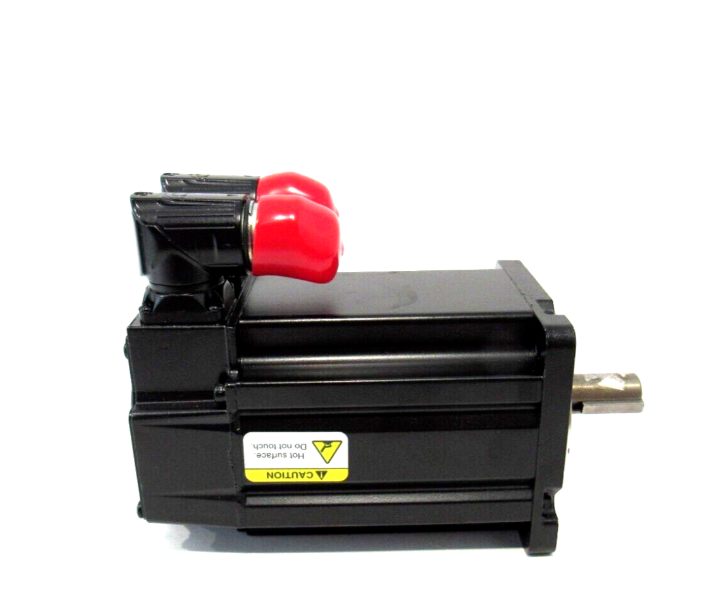

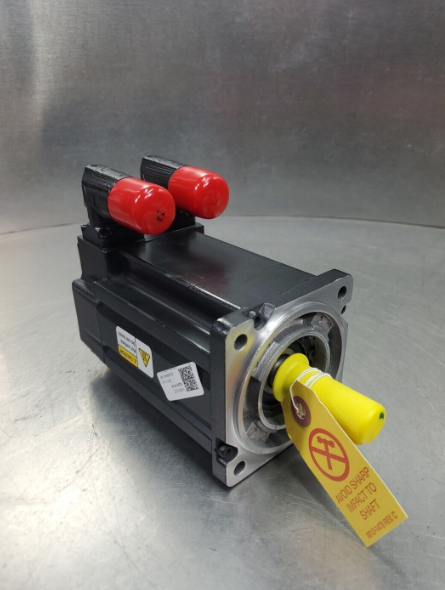

MPL-B320P-SJ72AA 是一款 Kinetix MP 系列低惯量伺服电机。该系列伺服电机使用稀土磁铁作为内部转子的主要组件，可实现快速加速，非常适合需要高速响应的运动和位置控制应用。

MPL-B320P-SJ72AA 仅是伺服电机，需要伺服驱动器。伺服驱动器处理从安装在 MPL-B320P-SJ72AA 电机上的单圈高分辨率编码器接收的反馈。伺服驱动器将当前位置与所需位置进行比较，该位置可以手动输入或自动计算。然后，伺服驱动器将校正发送到电机，以将电机驱动到所需的运动或位置。与 MPL-B320P-SJ72AA 兼容的伺服驱动器包括 Kinetix 5500、Kinetix 5700、Kinetix 6200/6500、Kinetix 6000、Kinetix 300/350、Kinetix 2000 和 Kinetix 7000。伺服电机的典型应用是工厂自动化行业，如生产线装配、物料搬运和分拣站。

MPL-B320P-SJ72AA 是一款 400V 级电机， 框架尺寸 3， 50.8 毫米（2.0 英寸）磁铁组， 额定转速为 5000 rpm， 带圆形 （SpeedTec） DIN 连接器， 直角， 180° 可旋转。输出功率1.5kW，连续失速扭矩3.05Nm（2.7lb-in.），峰值扭力7.91Nm（7.0lb-in.）

连续失速电流 4.5 A 和峰值失速电流 14.0 A，而转子惯量为 0.000078 kg-m2 或 0.00069 lb-in.-s2。

MPL-B320P-SJ72AA 在轴向下安装时具有 IP53 的防护等级;当轴水平安装时，IP51;和 IP50 当轴安装时。当安装适当的轴封时，IP 防护等级符合 IP66 标准.

☆型号：MPL-B320P-SJ72AA 低惯量伺服电机 实现快速加速

【英文介绍】

The MPL-B320P-SJ72AA is a Kinetix MP series low inertia servo motor. Using rare earth magnets as the main component of the internal rotor, this series of servo motors enables rapid acceleration and is ideal for motion and position control applications requiring high-speed response.

The MPL-B320P-SJ72AA is only a servo motor and requires a servo drive. The servo drive processes feedback received from a single-turn high-resolution encoder mounted on the MPL-B320P-SJ72AA motor. The servo drive compares the current position with the desired position, which can be entered manually or calculated automatically. The servo drive then sends the correction to the motor to drive the motor to the desired motion or position. Servo drives compatible with the MPL-B320P-SJ72AA include Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000 and Kinetix Kinetix 7000. Typical applications of servo motors are in factory automation industries such as line assembly, material handling and sorting stations.

The MPL-B320P-SJ72AA is a 400V-class motor with frame size 3, 50.8 mm (2.0 in) magnet set, rated at 5000 rpm, with a circular (SpeedTec) DIN connector, right Angle, 180° rotatable. Output power 1.5kW, continuous stall torque 3.05Nm (2.7lb-in.), peak torque 7.91Nm (7.0lb-in.)

The continuous stall current is 4.5 A and the peak stall current is 14.0 A, while the rotor inertia is 0.000078 kg-m2 or 0.00069 lb-in.s2.

The MPL-B320P-SJ72AA has IP53 protection rating when the shaft is mounted downwards; When the shaft is installed horizontally, IP51; And IP50 when the shaft is installed. When the appropriate shaft seals are installed, the IP protection level meets IP66 standards.

☆型号：MPL-B320P-SJ72AA 低惯量伺服电机 实现快速加速
