MV156-AFC 输入/输出模块 气体流量计算机模块

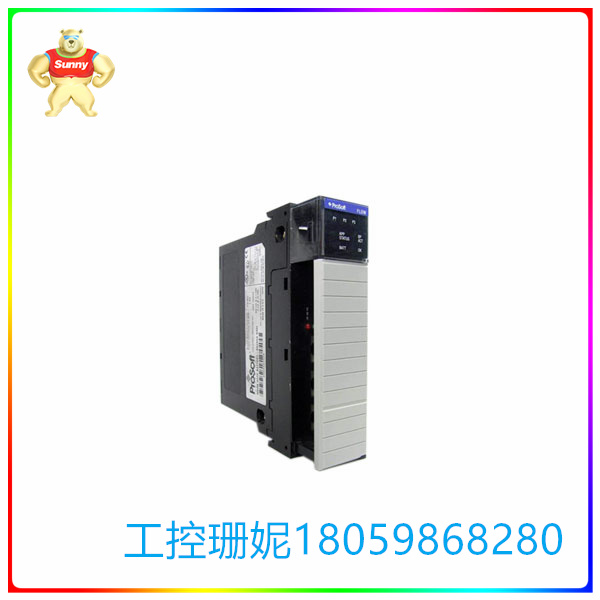

☆型号：MV156-AFC 输入/输出模块 气体流量计算机模块

【产品详情】

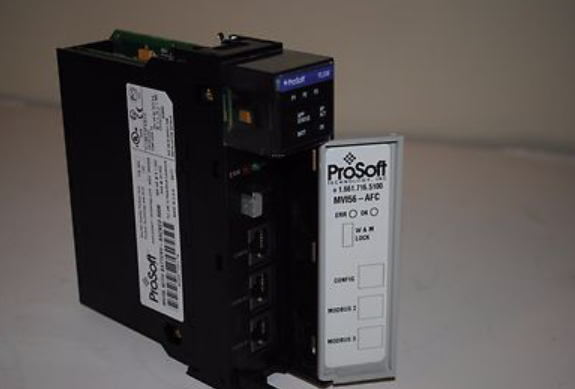

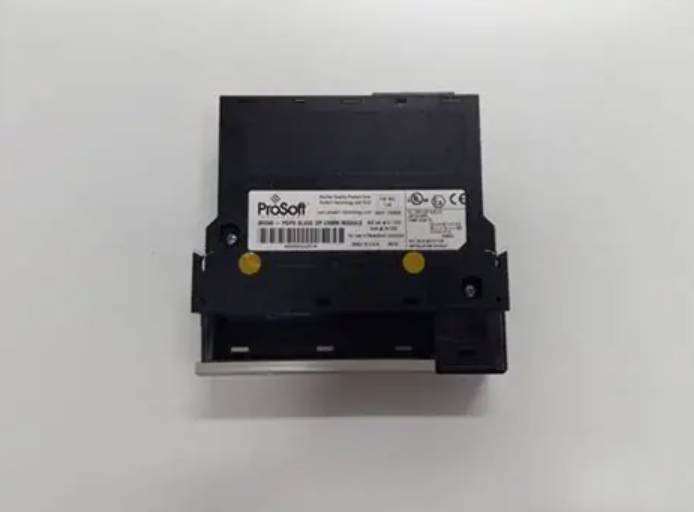

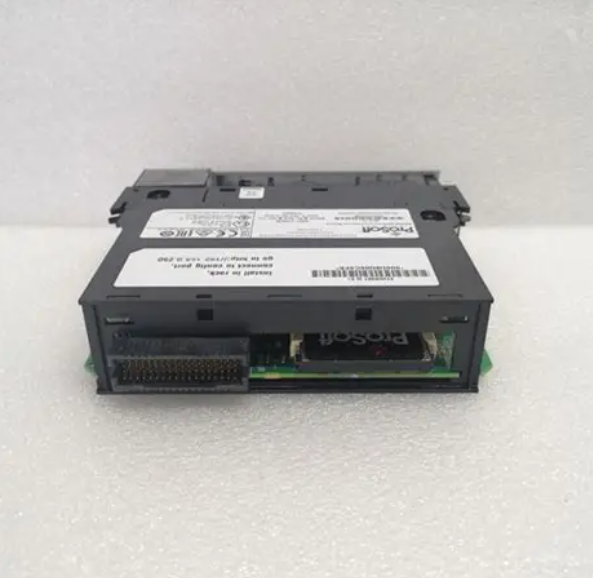

Prosoft Technology和inRAx的MVI56-AFC液体和气体流量计算机模块配有RJ45/ DB-9M，带有随附的电缆接口和仅RS-232串行通信，是受控系统的强大补充。与MVI56系列的其他设备一样，该模块旨在与ControlLogix系统配合使用，以便准确测量烃类气体或液体。流量计算机的主要用途是计算流量，并获得指定液体/气体的总体积、质量和产生的热能的完整报告。ControlLogix存储器用于通过背板传输计算结果，以供应用程序梯形图程序使用。MVI56-AFC的背板额定电流在5伏DC下为800毫安，在24伏DC下为3毫安，并且具有用于模块状态、背板传输和应用的LED指示器，以及用于串行活动的指示器。MVI56-AFC的特性包括三个可配置的Modbus端口、可定制的Modbus数据映射、16米行程、仪表校验、可审计性和数据安全性。

MVI56-AFC模块与单槽/1756背板兼容，被处理器识别为输入/输出模块。除此之外，模块还包括一个样本梯形逻辑文件，用于模块和处理器之间的数据传输。模块的Modbus可用于下载正确配置所需的数据。此外，模块的配置数据可以通过用户定义的阶梯传送。该系列的每个模块都配有用于每个端口的RJ45/DB-9M电缆和一根6英尺RS-232配置电缆，它们都符合ANSI/ISA 12 . 12 . 01 class I/division 2、CSA/cUL (C22.2 number 213-1987)、CSA CB (IEC61010)、ATEX EN60079-0(3类)、EN60079-15等标准。模块的工作温度范围在0到60摄氏度(32到140华氏度)之间，而存储温度范围在-40到85摄氏度之间(-40到185华氏度)。该模块也是抗冲击和振动的，它可以承受5%至95%的非冷凝湿度水平。

☆型号：MV156-AFC 输入/输出模块 气体流量计算机模块

【英文介绍】

Prosoft Technology and inRAx's MVI56-AFC liquid and gas flow computer module with RJ45/ DB-9M with included cable interface and RS-232 serial communication only is a powerful addition to controlled systems. Like other devices in the MVI56 series, the module is designed to work with the ControlLogix system for accurate measurement of hydrocarbon gases or liquids. The main use of the flow computer is to calculate the flow rate and obtain a complete report of the total volume, mass and heat energy generated by the specified liquid/gas. The ControlLogix memory is used to transfer calculation results through the backplane for use by program ladder programs. The MVI56-AFC's backplane is rated at 800 mah at 5 volt DC and 3 mah at 24 volt DC, and has LED indicators for module status, backplane transmission and applications, as well as indicators for serial activity. Features of the MVI56-AFC include three configurable Modbus ports, customizable Modbus data mapping, 16 m travel, meter calibration, auditability and data security.

The MVI56-AFC module is compatible with the single slot /1756 backplane and is recognized by the processor as an input/output module. In addition to this, the module includes a sample ladder logic file for data transfer between the module and the processor. The module's Modbus can be used to download the data needed for proper configuration. In addition, the configuration data of the module can be transferred through a user-defined ladder. Each module in the series comes with an RJ45/DB-9M cable for each port and a 6-foot RS-232 configuration cable, They all comply with ANSI/ISA 12.12.01 class I/division 2, CSA/cUL (C22.2 number 213-1987), CSA CB (IEC61010), ATEX EN60079-0(Class 3), EN60079-15 and other standards. Modules operate at temperatures ranging from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), while storage temperatures range from -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The module is also shock and vibration-resistant, and it can withstand non-condensing humidity levels from 5% to 95%.

☆型号：MV156-AFC 输入/输出模块 气体流量计算机模块
