MPL-B320P-HJ72AA 低惯量伺服电机 提供高输出和低惯量

☆型号：MPL-B320P-HJ72AA 低惯量伺服电机 提供高输出和低惯量

【产品详情】

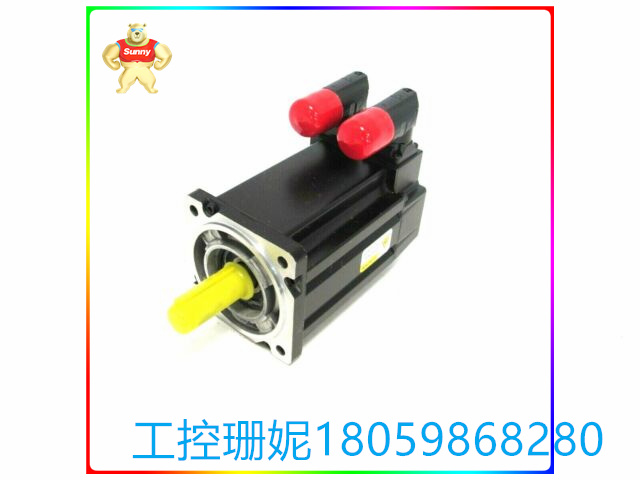

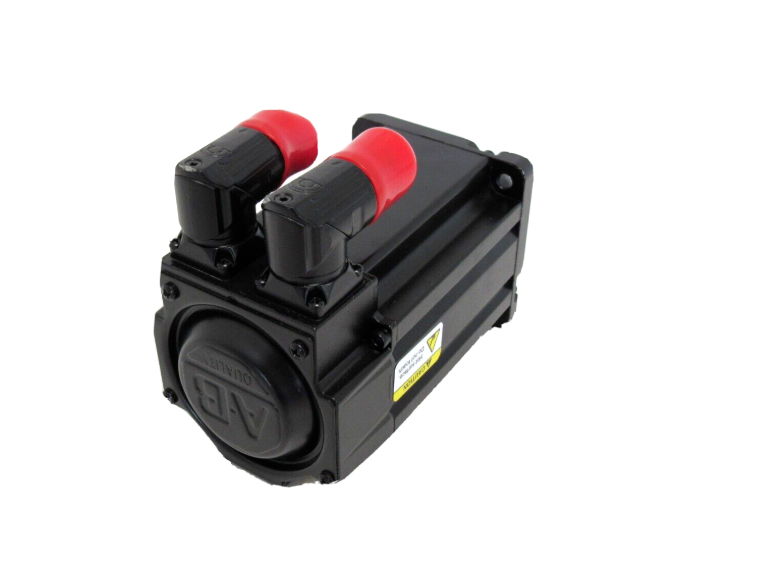

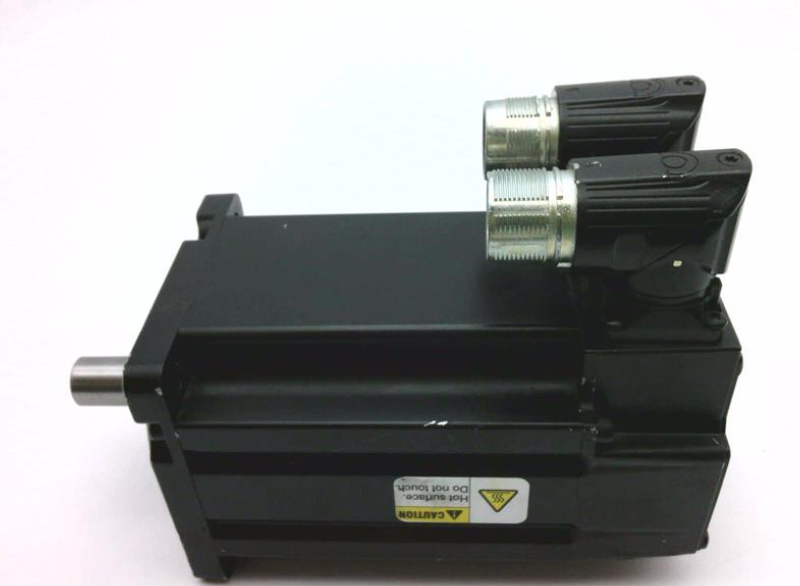

MPL-B320P-HJ72AA伺服电机是Allen-Bradley MP系列产品线中的低惯量伺服电机。它是一款功能强大的伺服电机，可在 100 毫米尺寸的框架中提供高输出和低惯量。MPL-B320P-HJ72AA 伺服电机采用创新设计，由稀土磁铁制成，可在小型外壳内实现更快的加速。与标准伺服电机相比，这种类型的伺服电机每单位尺寸的扭矩最高可提高 40%。这种紧凑的工业电机控制解决方案被设计为无刷伺服电机。它提供 400 伏交流电源，能够在具有挑战性的工业应用中提供快速的电机定位和速度控制。

Allen-Bradley MPL-B320P-HJ72AA 伺服电机是汽车、包装和电子装配应用以及物料搬运机械的理想解决方案。其额定转速为 5000 RPM，与轴上提供的 1.5 千瓦功率相结合。该伺服电机具有 4 安培的连续失速电流和 15 安培的峰值失速电流。Allen-Bradley MPL-B320P-HJ72AA 伺服电机具有直角圆形 DIN 连接器，可 180 度旋转。这些连接器旨在最大限度地减少伺服电机对机器空间要求的影响。这种伺服电机离不开电机驱动单元，用户可以在Allen-Bradley制造的各种电机驱动器之间进行选择。Allen-Bradley MPL-B320P-HJ72AA 伺服电机随附 2000 线编码器反馈选项。它的轴带有钥匙，但没有轴封。它具有标准的 IEC 72-1 安装尺寸和板载内存，可在连接到驱动器时保持其身份，但它没有制动器。

☆型号：MPL-B320P-HJ72AA 低惯量伺服电机 提供高输出和低惯量

【英文介绍】

The MPL-B320P-HJ72AA servo motor is a low inertia servo motor in the Allen-Bradley MP series product line. It is a powerful servo motor that provides high output and low inertia in a 100 mm size frame. The MPL-B320P-HJ72AA servo motor has an innovative design and is made of rare earth magnets for faster acceleration in a small housing. This type of servo motor has up to 40% more torque per unit size compared to standard servo motors. This compact industrial motor control solution is designed as a brushless servo motor. It offers a 400 volt AC power supply that enables fast motor positioning and speed control in challenging industrial applications.

The Allen-Bradley MPL-B320P-HJ72AA servo motor is the ideal solution for automotive, packaging and electronic assembly applications, as well as material handling machinery. Its rated speed is 5000 RPM, combined with 1.5 kW of power provided on the shaft. The servo motor has a continuous stall current of 4 amps and a peak stall current of 15 amps. The Allen-Bradley MPL-B320P-HJ72AA servo motor has a right-angled circular DIN connector and can be rotated 180 degrees. These connectors are designed to minimize the impact of servo motors on machine space requirements. This servo motor is inseparable from the motor drive unit, and users can choose between various motor drivers manufactured by Allen-Bradley. The Allen-Bradley MPL-B320P-HJ72AA servo motor comes with a 2000 wire encoder feedback option. It has a shaft with a key, but no shaft seal. It has standard IEC 72-1 mounting dimensions and onboard memory to maintain its identity when connected to a drive, but it has no brakes.

☆型号：MPL-B320P-HJ72AA 低惯量伺服电机 提供高输出和低惯量
