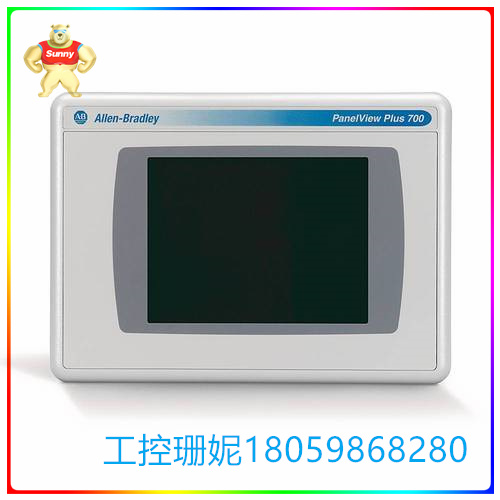

2711P-T6M20A8 人机界面 采用单色显示屏

☆型号：2711P-T6M20A8 人机界面 采用单色显示屏

【产品详情】

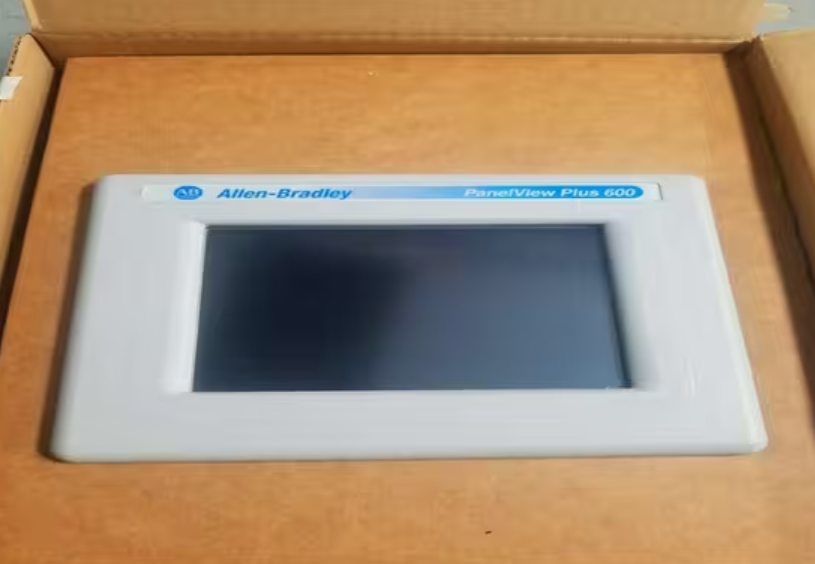

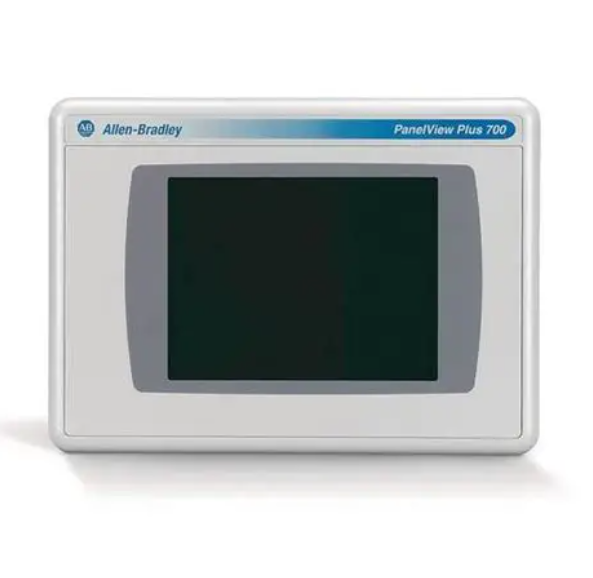

目前的 Allen Bradley Panelview 6 Plus 2711P-T6M20A8 是一款允许用户与机器交互的人机界面。该操作界面具有 5.7 英寸。单色显示。用户能够利用触摸屏输入信息和数据来控制操作界面。本机使用 100-240 VAC 电源供电。本机具有以下内部存储器：256 MB RAM。大约运输重量和尺寸为 6 磅和 14 x 11 x 8 英寸。EtherNet/IP（以太网工业协议）是一个开放的工业网络，支持实时I/O消息传递和消息交换。以太网端口使用网络和标准以太网连接连接到 EtherNet/IP 网络上的控制器。此端口也可以用于应用程序传输和打印。EtherNet/IP 屏幕显示并允许用户修改 PanelView 终端的某些 EtherNet/IP 通信设置。如果需要另一个以太网端口，2711P-RN20 以太网通信模块可用于 700 至 1500 终端。该模块具有自己唯一的 IP 地址。此端口具有用于网络通信的 RJ45、10/100Base-T 连接器，并支持 MDI/MDI-X 连接。参数随应用程序一起下载。

2711P-T6M20A8 采用单色显示屏，显示屏对角线尺寸为 5.7 英寸。这种人机界面 （HMI） 非常适合小型和简单的工业应用，因为单色屏幕提供的信息水平有限。该操作终端配有触摸输入界面，建议使用戴手套的手指或手写笔操作，驱动力为 10-110 g。触摸输入界面具有内置的校准序列，可通过 HMI 面板的配置环境启动。该触摸界面的额定操作次数高达 100 万次。要为该操作终端供电，必须为其提供外部电压tage 为 100-240VAC，频率为 47-63 Hz。额定最大功耗为35VA，典型值为20VA。

该操作终端配有内部存储器区域，预分配用于 256 MB 随机存取存储器 （RAM） 和 512 MB 非易失性存储器以及 79 MB 可用用户存储器。它可以与安全数字 （SD） 卡一起安装到提供的 SD 卡插槽中，用于内存和热插拔可移动存储。

☆型号：2711P-T6M20A8 人机界面 采用单色显示屏

【英文介绍】

The current Allen Bradley Panelview 6 Plus 2711P-T6M20A8 is a human-machine interface that allows users to interact with machines. The operating interface is 5.7 inches. Monochrome display. Users can use the touch screen to input information and data to control the operation interface. This unit uses 100-240 VAC power supply. The unit has the following internal memory: 256 MB RAM. Approximate shipping weight and dimensions are 6 pounds and 14 x 11 x 8 inches. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real-time I/O messaging and message exchange. EtherNet ports connect to controllers on EtherNet/IP networks using network and standard Ethernet connections. This port can also be used for application transfer and printing. The EtherNet/IP screen displays and allows the user to modify some EtherNet/IP communication Settings for the PanelView terminal. If another Ethernet port is required, the 2711P-RN20 Ethernet communication module is available for 700 to 1500 terminals. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connectivity. Parameters are downloaded with the application.

The 2711P-T6M20A8 features a monochrome display that measures 5.7 inches diagonally. This human-machine interface (HMI) is ideal for small and simple industrial applications where monochrome screens provide a limited level of information. The operator terminal is equipped with a touch input interface, it is recommended to use a gloved finger or a stylus to operate, and the driving force is 10-110 g. The touch input interface has a built-in calibration sequence that can be activated through the configuration environment of the HMI panel. The touch interface is rated for up to 1 million operations. To power this operating terminal, it must be supplied with an external voltage tage of 100-240VAC and a frequency of 47-63 Hz. The rated maximum power consumption is 35VA, with a typical value of 20VA.

The operating terminal is equipped with an internal memory area pre-allocated for 256 MB of random access memory (RAM) and 512 MB of non-volatile memory, as well as 79 MB of available user memory. It can be installed with a secure digital (SD) card into the provided SD card slot for memory and hot-swappable removable storage.

☆型号：2711P-T6M20A8 人机界面 采用单色显示屏
