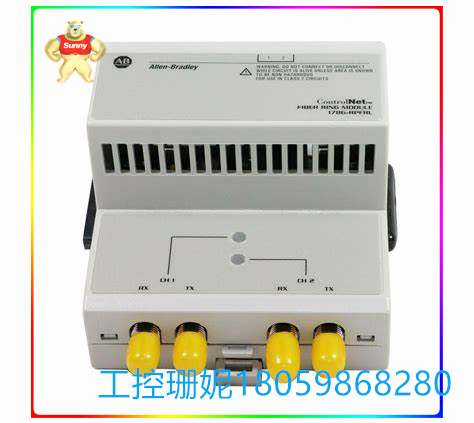

☆型号：1786-RPFRL 光纤环形中继器模块 实现长传输距离
【产品详情】
Allen-Bradley 1786-RPFRL 模块是 ControlNet 光纤环形中继器模块。它通过使用环形拓扑结构来支持光纤介质冗余，从而实现长传输距离、电磁干扰保护以及节点之间的接地隔离。光纤中继器之间的距离取决于许多因素，包括光纤质量、接头数量和连接器数量。对于 1786-RPFRL 模块，光纤链路上的损耗必须小于 15 dB。根据 ControlNet 标准，光纤环的总长度限制为 20 公里或更短。模块应使用塑料或陶瓷 ST 光纤连接器。不支持金属连接器。
1786-RPFRL 模块提供 2 个光纤通道、每个光纤通道上的活动状态指示灯以及用于系统状态和通信更新的继电器触点连接器。该模块的电源输入要求为 570 毫安（5 伏直流电）。背板的功率要求为 2.8 瓦（最大 3.02 瓦）。支持的通信速率为 5 Mbps。该模块可以安装在任何方向。继电器接触器的最大电压为 30 伏直流电。继电器接触器的最小和最大电流分别为 1 毫安和 900 毫安。隔离电压额定值为 50 伏连续电压。建议用于 1786-RPFRL 模块的电线尺寸为 22 至 14 AWG 实心或绞合铜线，额定温度为 75 摄氏度或更高。1786-RPFRL 模块是开放式模块，符合 T5 北美温度规范。1786-RPFRL 模块周围的空气温度不应超过 60 摄氏度。
☆型号：1786-RPFRL 光纤环形中继器模块 实现长传输距离
【英文介绍】
The Allen-Bradley 1786-RPFRL module is a ControlNet fiber optic ring repeater module. It supports fiber media redundancy by using a ring topology for long transmission distances, electromagnetic interference protection, and ground isolation between nodes. The distance between fiber optic Repeaters depends on many factors, including fiber quality, number of connectors, and number of connectors. For the 1786-RPFRL module, the loss on the fiber link must be less than 15 dB. According to the ControlNet standard, the total length of the fiber ring is limited to 20 km or less. Modules should use plastic or ceramic ST fiber optic connectors. Metal connectors are not supported.
The 1786-RPFRL module provides 2 Fibre channels, active status indicators on each Fibre channel, and relay contact connectors for system status and communication updates. The power input requirement for this module is 570 MA (5 volts DC). The backplane has a power requirement of 2.8 watts (maximum 3.02 watts). The supported communication rate is 5 Mbps. The module can be installed in any direction. The maximum voltage of the relay contactor is 30 volts DC. The minimum and maximum current of the relay contactor are 1 MA and 900 mA respectively. The isolation voltage is rated at 50 volts continuous. The recommended wire size for the 1786-RPFRL module is 22 to 14 AWG solid or stranded copper wire with a temperature rating of 75 degrees Celsius or higher. The 1786-RPFRL module is an open module that complies with the T5 North American temperature specification. The air temperature around the 1786-RPFRL module should not exceed 60 degrees Celsius.
