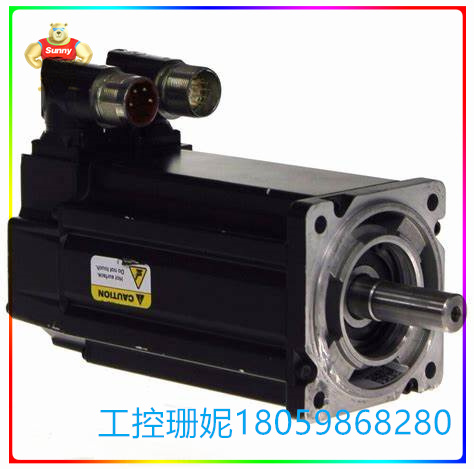

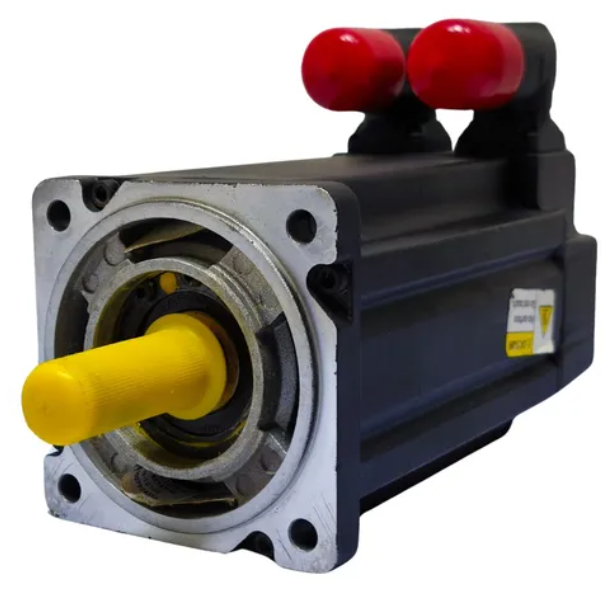

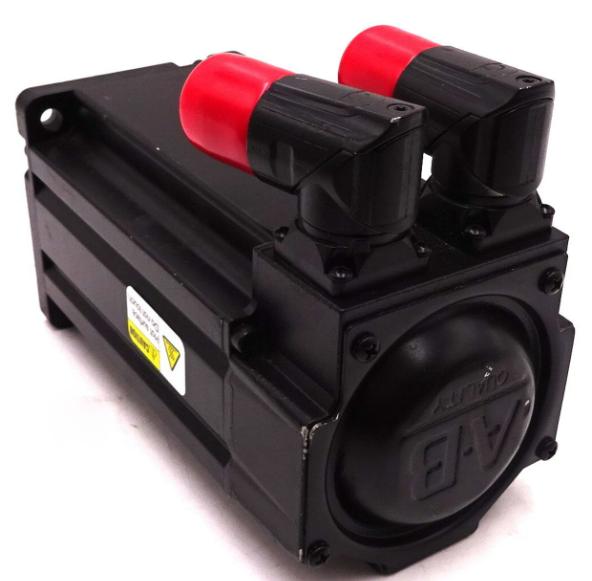

MPL-B330P-MJ72AA 伺服电机 MP 低惯量系列

☆型号：MPL-B330P-MJ72AA 伺服电机  MP 低惯量系列

【产品详情】

Allen-Bradley MPL-B330P-MJ72AA 是一款 Kinetix 伺服电机，属于 MP 低惯量系列。该伺服电机属于 400V 电压等级，框架尺寸为 100 毫米，磁铁堆叠长度为 76.2 毫米或 3.0 英寸。它具有相同的额定和最大速度，即每分钟 5000 转 （rpm）。为了建立电源和反馈连接，该伺服电机使用直角方向的圆形 SpeedTec DIN 连接器，可旋转 180°。这种连接方法允许将信号快速安全地连接到电机，并增加对振动的敏感性。该伺服电机还配备了一个多圈绝对值编码器，采用Hiperface协议，正余弦分辨率为1024。使用此编码器，可以监控电机的位置，从而提供准确的位置反馈。

MPL-B330P-MJ72AA 的输出功率为 1.8 kW，连续失速扭矩额定值为 4.18 N-m。安装时，它设有FF型安装孔，并带有带钥匙设计的轴，但是，该伺服电机没有安装轴封。推荐使用 Allen-Bradley 轴封，目录号为 MPL-SSN-A4B4。该轴封必须在 3-12 个月内维修，因为轴封容易磨损。轴封还将伺服电机的环境等级从 IP55 提高到 IP65。Sjaft密封件由丁腈橡胶制成，并带有减少磨损的润滑剂。

MPL-B330P-MJ72AA伺服电机可以安装在大多数工艺中，但并不适合食品和饮料行业的应用。

安装 Allen-Bradley MPL-B330P-MJ72AA 电机时，需要在开始操作前将其接地。这将有助于电机发送和接收更清晰的信号，而不受电噪声的影响。除了将电机接地外，建议在其所有连接上使用滤波器，并将电源线和信号线分开。MPL-B330P-MJ72AA伺服电机可以在温度不超过40摄氏度的非腐蚀性环境中轻松运行。电机支持的最高温度因安装的屏蔽和外壳而异。为了避免过热，用户需要确保驱动器具有适当的进气口，并且它正确地释放热量。

☆型号：MPL-B330P-MJ72AA 伺服电机  MP 低惯量系列

【英文介绍】

Allen-Bradley MPL-B330P-MJ72AA is a Kinetix servo motor belonging to the MP Low inertia family. The servo motor is in the 400V voltage class, has a frame size of 100 mm and a magnet stack length of 76.2 mm or 3.0 inches. It has the same rating and maximum speed, which is 5,000 revolutions per minute (rpm). To establish a power and feedback connection, the servo motor uses a circular SpeedTec DIN connector with a right Angle orientation that can be rotated 180°. This connection method allows the signal to be quickly and safely connected to the motor and increases sensitivity to vibration. The servo motor is also equipped with a multi-turn absolute encoder using the Hiperface protocol with a sine and cosine resolution of 1024. With this encoder, the position of the motor can be monitored, thus providing accurate position feedback.

The MPL-B330P-MJ72AA has an output power of 1.8 kW and a continuous stall torque rating of 4.18 N-m. When installed, it has a FF mounting hole and a shaft with a key design, but the servo motor is not fitted with a shaft seal. The Allen-Bradley shaft seal with the directory number MPL-SSN-A4B4 is recommended. The shaft seal must be repaired within 3-12 months, as the shaft seal is prone to wear. The shaft seal also increases the servo motor's environmental rating from IP55 to IP65. Sjaft seals are made of nitrile butadiene rubber and come with a lubricant to reduce wear.

The MPL-B330P-MJ72AA servo motor can be installed in most processes, but is not suitable for applications in the food and beverage industry.

When installing the Allen-Bradley MPL-B330P-MJ72AA motor, it is necessary to ground it before starting operation. This will help the motor send and receive clearer signals without being affected by electrical noise. In addition to grounding the motor, it is recommended to use filters on all its connections and to separate the power and signal lines. The MPL-B330P-MJ72AA servo motor can easily operate in a non-corrosive environment with a temperature of no more than 40 degrees Celsius. The maximum temperature supported by the motor varies depending on the shielding and housing installed. To avoid overheating, users need to ensure that the drive has a proper air intake and that it releases heat correctly.
